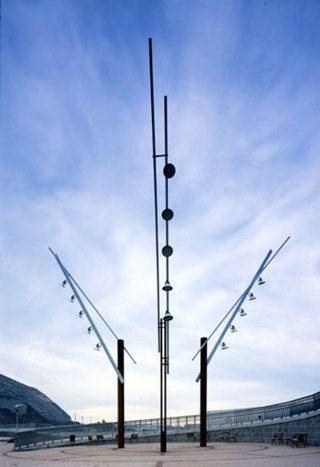

Urban lighting element for large urban spaces in which it is desired to give prominence to the lighting. Designed especially for the port area of Rotterdam, its lateen sail shape is moreover reminiscent of the enormous cranes in the docks of ports.
15 m high street lamp composed of three elements: shaft, support for projectors and the brace which gives the structure rigidity.
Materials and finishes
7m high shaft in Corten steel composed of two sections: square cross-section base and the rest with a forked cross-section. As an option it can be delivered in galvanized steel and painted.
· Support for projectors
Hot-galvanized steel tube, with rectangular crosssection for five revolving projectors.
Round hot-galvanized steel tube.
The street lamp is supplied dismantled in four components: column, support, brace and projectors.
The column is fixed using a concrete cube created in situ and anchor bolts, 24 cm below the level of the paving.
The foundations must foresee the groove for the electric connection.
Assembly instructions are enclosed with the street lamp.
The template and the anchor bolts are delivered with the column.
Five Tango TNG 400 projectors equipped for discharge lamps with a maximum power of 250W.
Usual spare parts and maintenance for the units.
