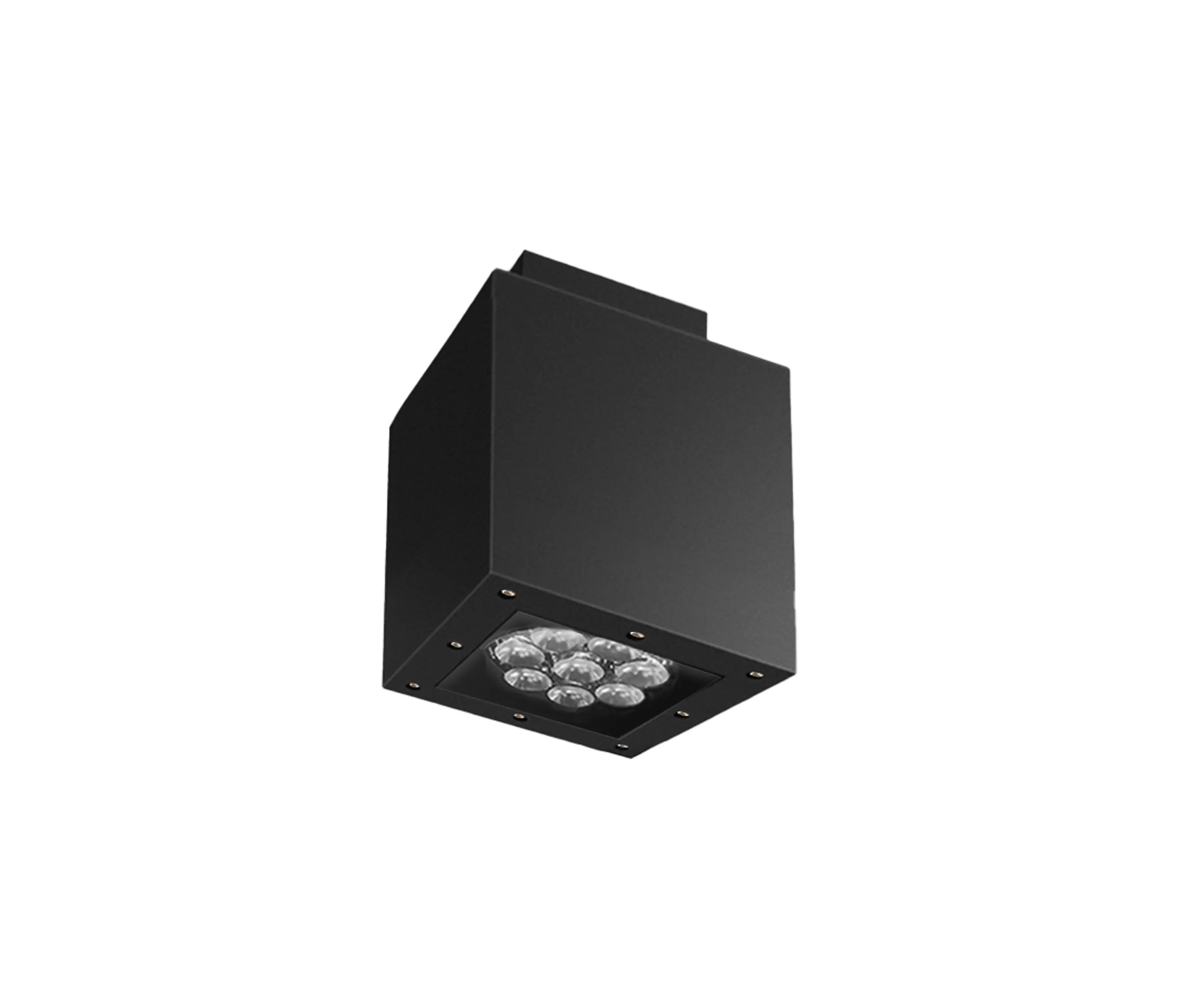

WES 1x8 LED

GENERAL DATA

Mounting type: surface

Casing: aluminum

Ingress protection: IP66

Operating temperature range:from -40° to +40°

Lifetime L80B10: 100 000h

Impact protection: IK10

ELECTRICAL DATA

Nominal voltage: 220-240V AC

Nominal frequency: 50-60Hz

luminaire nominal power: 9W, 17W

Protection class: I

Wiring: wire 3x0,75mm (5x0,75mm for DALI)

Wiring: through, standard

Dimming: on-off, Dali

OPTICAL DATA

Optical system: lens

Material: PMMA

Light emission: direct

Light distribution: symmetrical, asymmetrical

Contains light source: yes

2331lm / 17W / 137lm/W / 4000K / L=150mm W=150mm H=206mm

3664lm / 26W / 141lm/W / 4000K / L=150mm W=150mm H=206mm

1119lm / 9W / 129lm/W / 3000K / L=150, W=150, H=206mm

2148lm / 17W / 137lm/W / 3000K / L=150, W=150, H=206mm

1074lm / 9W / 129lm/W / 2700K / L=150, W=150, H=206mm

2148lm / 17W / 137lm/W / 2700K / L=150, W=150, H=206mm
