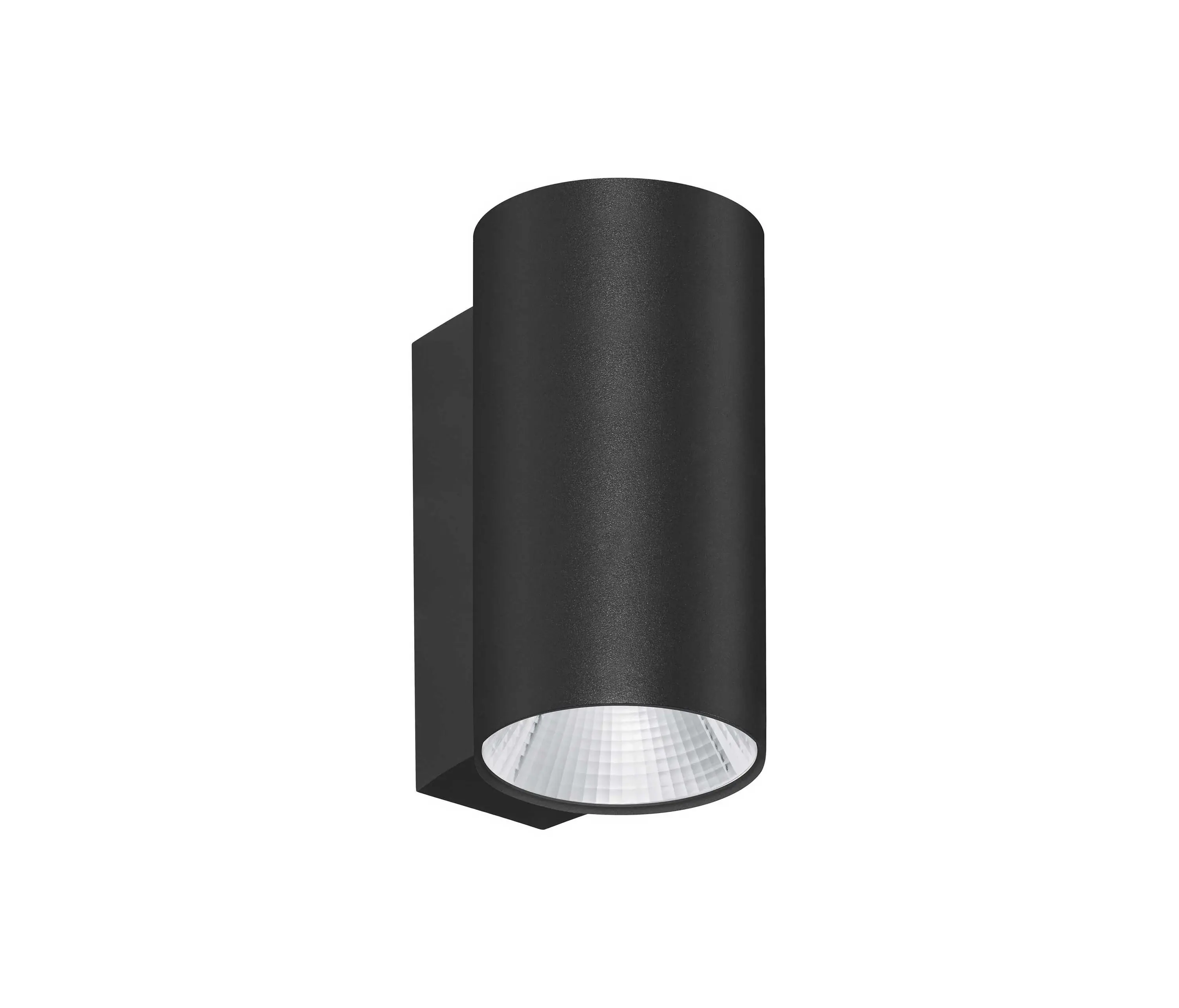

ASPEN 120

General data:

Luminaire body: aluminum

Mounting type: wall mounted

Ingress protection IP: IP20

Operating temperature range:

from -20° to +35°

Lifetime L80B10: 100 000h

Electrical data:

Nominal voltage: 230-240V AC

Nominal freguency: 50-60Hz

Protection class: II

Contains light source: yes

Dimming: DALI, Casambi, on-off

Optical data:

Lenses available: 36°, 60°

Lighting data:

Light source: LED Light distribution: down, up&down

Colour rendering index: CRI≥80 (on request: CRI≥90)

Tolerance of luminous flux: SDCM<3

down:

1566lm/ 12W/ 131lm/W/ 4000K/ UGR16

1503lm/ 12W/ 125lm/W/ 3000K/ UGR16

1443lm/ 12W/ 120lm/W/ 2700K/ UGR16

2176lm/ 17W/ 128lm/W/ 4000K/ UGR18

2088lm/ 17W/ 123lm/W/ 3000K/ UGR18

2005lm/ 17W/ 118lm/W/ 2700K/ UGR18

up&down:

3131lm/ 24W/ 130lm/W/ 4000K/ UGR16

3006lm/ 24W/ 125lm/W/ 3000K/ UGR16

2886lm/ 24W/ 120lm/W/ 2700K/ UGR16
