fecoair

Name: fecoair
Brand: feco. Die Systemwand.

Sistemi di pareti divisoriedifeco. Die Systemwand.

Visita il prodotto sul sito di feco. Die Systemwand.

Home

Sistemi di pareti divisorie

fecoair

Informazioni su questo prodotto

Architonic ID: 20129184

• Building-specific element-width and element-height, installation vertical or horizontal

• Melamine resin direct-coating as per collection, optional CPL/HPL coating materials, real wood veneers, paint finishing, steel cases powder-coated in RAL colours or aluminium cases natural E6/EV1 anodized

• Front-side slotting, joint width 8 – 12 mm; optional hole perforation with metal cases

• Air-passage element with meandering airflow and oppositely arranged air inlets and outlets

• Depending on the design, sound insulation and effective length approx. 50-100 m³/hm per linear meter effective length at approx. 10-20 Pa pressure loss

• Standard-sound-level difference Dn,e,w = 37-50 dB. Sound-insulation test value (surface-dependent) Rw,P = 22-37 dB•

Concetto

Wall-integrated air-passage elements

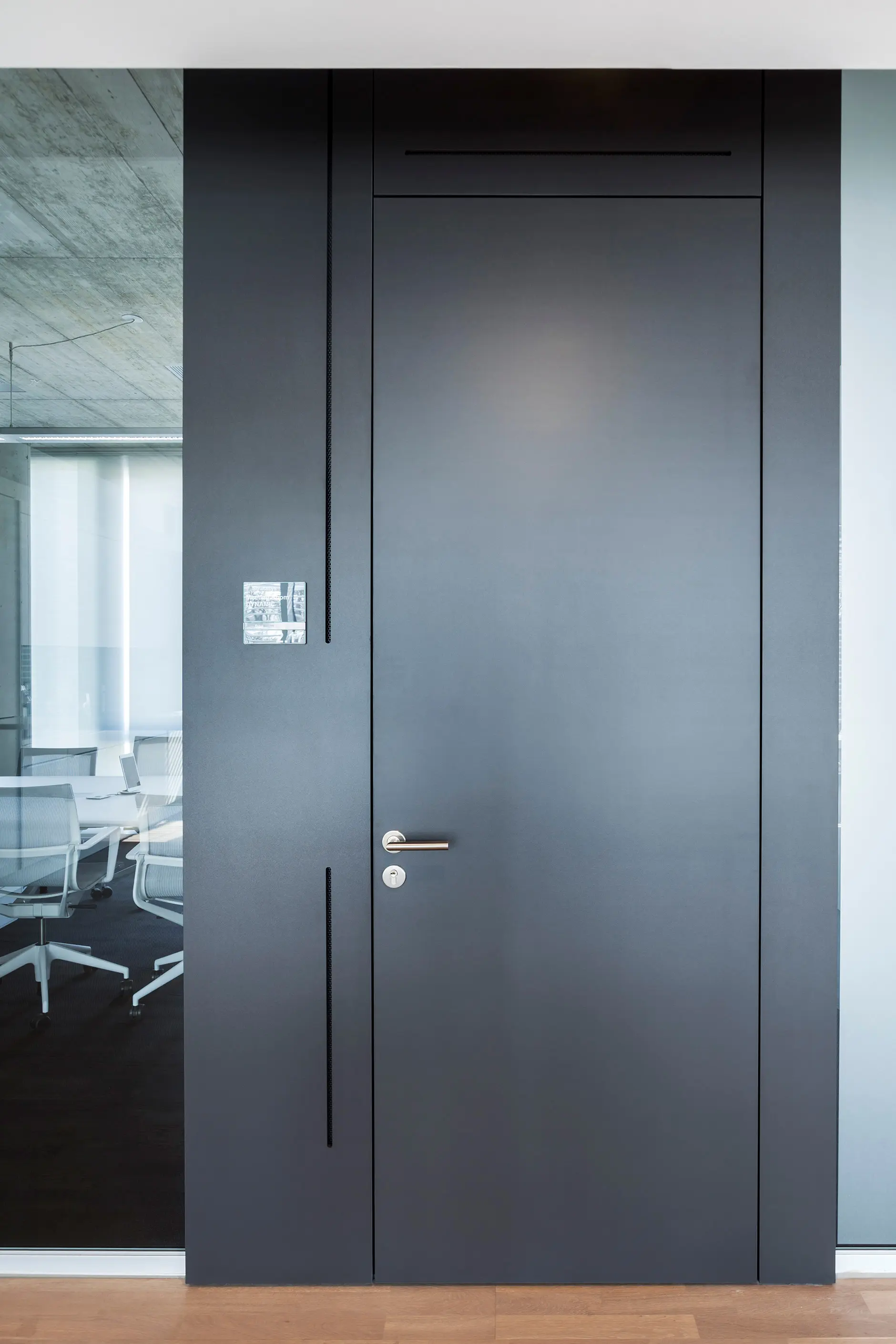

In sustainably-planned office and administration buildings, the use of component-activated concrete ceilings means that no suspended ceiling is available for the ventilation ducting. Wall-integrated fecoair overflow elements enable air exchange between the room and corridor. The overflow elements are manufactured in different widths and heights and installed in fecowand 105mm-thick solid-wall elements, thereby enabling the integration of switches and sockets. Horizontal installation, for example in a door top-panel, is also possible.
