Persol | Pergola

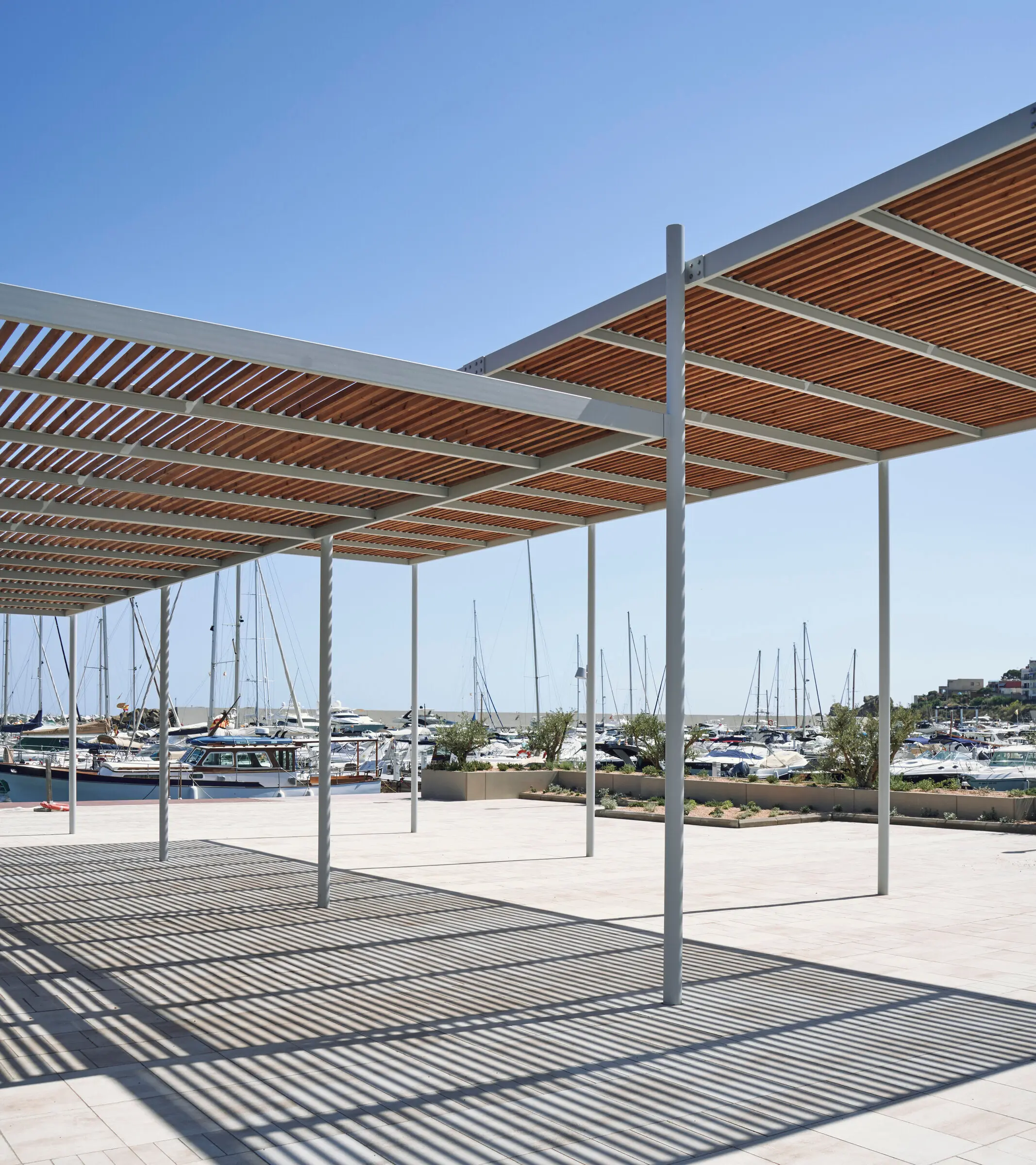

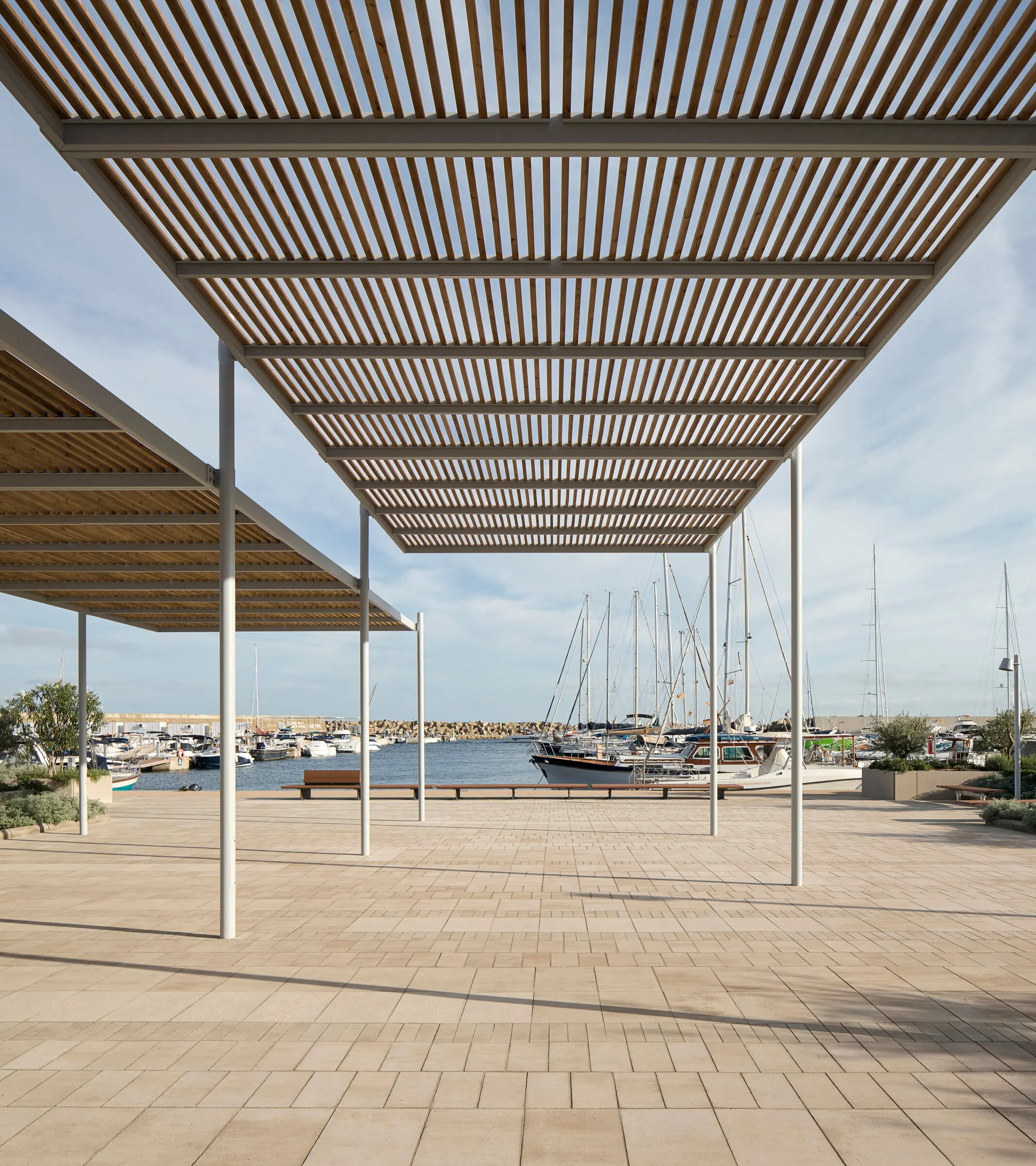

Modular urban pergola, made from restrained, superior materials. A microarchitecture element whose purpose is to provide pleasant shade, projected under its crossbeams, which are installed at different heights. It consists of a unique framework of coverings that provide shelter from the sun, and reorganize the urban space, creating social settings.

The Persol urban pergola allows the coverings to be aligned at the same or different heights, and it allows the perimeter supports to be laid out with three or more pillars, sharing the shade modules, or not. Freedom in terms of composition, and restrained materials to undertake the multiple functions of the new outdoor space, which promote communal use.

Distributions. Asymmetric: Type V.

Light source: 2x 1.5 m Linear LED 22.5W. 3300K 80CRI.

Energy production: 4.8 kWp per module (310 Wp x 15 photovoltaic panels). STC (standard measurement conditions): 1000W/m2 irradiance, AM 1.5 spectral distribution Temperature 25±2oC. CE, IP67 (degree of protection of the luminaires against the penetration of solids and liquids) DVE (health and safety requirements), MCS (certified facility), BBA (British Board of Agrement), Electrical class II. 4.8 kWp per module (310 Wp x 15 photovoltaic panels). STC (standard measurement conditions): 1000W/m2 of irradiance, AM 1.5 spectral distribution, Temperature 25±2ºC.

Certificates: CE, ROHS, IP67, IK08, CLASE-III

Materials: Great shade coverage of 25 m2, consisting of eight modules of 40 x 45 mm slats, made from Class 4 brown autoclave Flanders pine. Supporting structure created with 150 x 50 mm perimeter profiles, three 120 x 50 mm crossbeams and Ø114.3 mm pillars that are 3.7 m in height, made from hot-dip galvanized S275 JR steel, painted finish with C3 protection. A4 stainless steel screws.

Finishes. Structure: Light grey, Cover: Autoclave Pine, Photovoltaic panel.

Approximate weight without packaging (kg):

- Initial 3-pillar module: 643

- Initial 4-pillar module: 685

- Line module: 600
