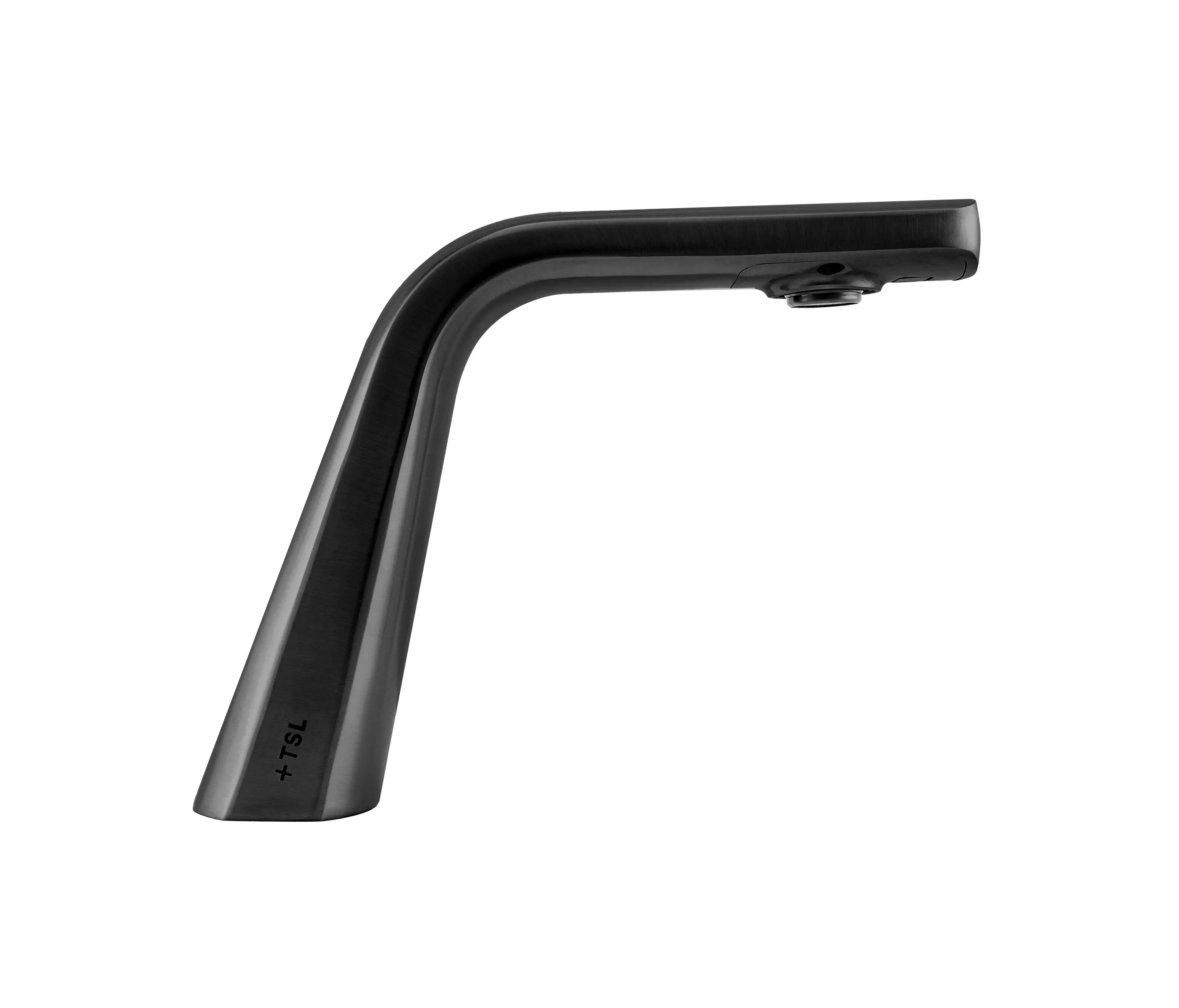

Ribbon | PVD Black The Ribbon Sensor Tap

Ideal operating pressure 0.5 bar dynamic pressure

Flow rate 4 litres per minute standard.

Options for 1.89 and 6 litres per minutes available

Water supply Pre-mixed

Weight ~1.5Kg (3lb 5oz)

Stainless steel grade AISI 304 stainless steel

Hot water temperature Max 50°C

Sensor range Preset 120mm (adjustable). Min range 60mm- Max range 400mm

Comfort delay 2 seconds ±20%

Security cut-off 30 seconds ±20%

Power supply- mains

Input- 100- 240V; 50- 60Hz; 1.5A

Output- 6v DC, 1A, 6W max.

Waterproof connection to sensor lead

Power supply- battery

Battery- CRP2 lithium
