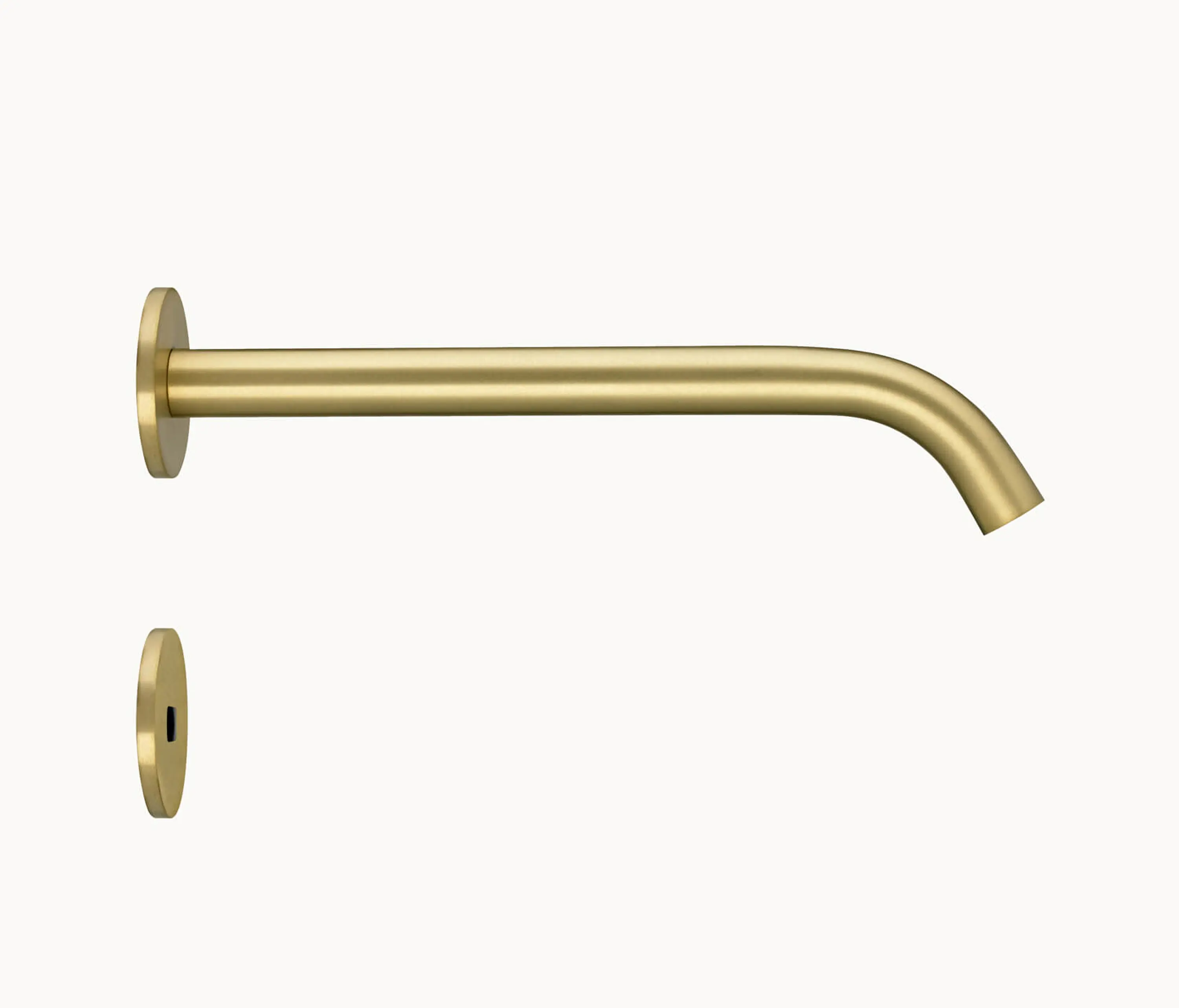

Radius | PVD Brass TSL.882 IR Sensor Tap - Mains Powered

Body Material AISI 304 Stainless Steel

Coating Type PVD

Aerator Cascade

Water Pressure (Dynamic) 0.5 to 7.5 Bar [0.05 to 0.75MPa]

Water Temperature (max) 60°C Flow Rates 0.5gpm [1.9L/min] Also available: 0.35gpm [1.3L/min] – refer to Spare Parts & Accessories 1.00gpm [3.8L/min] – refer to Spare Parts & Accessories

Power supply TSL.882 110-230 Vac, 50-60Hz, 1.5A TSL.885 6 V CR-P2

Lithium battery Output (max) 6 Vdc, 1A

Power consumption < 87%

Active mode, 0.3W No load

Solenoid valve type 6V

Latching Water Ingress IP55

Cable lengths 800mm – Power supply connection 800mm – Solenoid valve connection

Sensor type Infrared

Pre-set sensor range 220mm Sensor range (max) 250mm

Comfort delay 2 sec

Security time-out 30 sec

Operating Temperature 0 to 50°C

Response Time (max) 0.3 – < 1 sec
