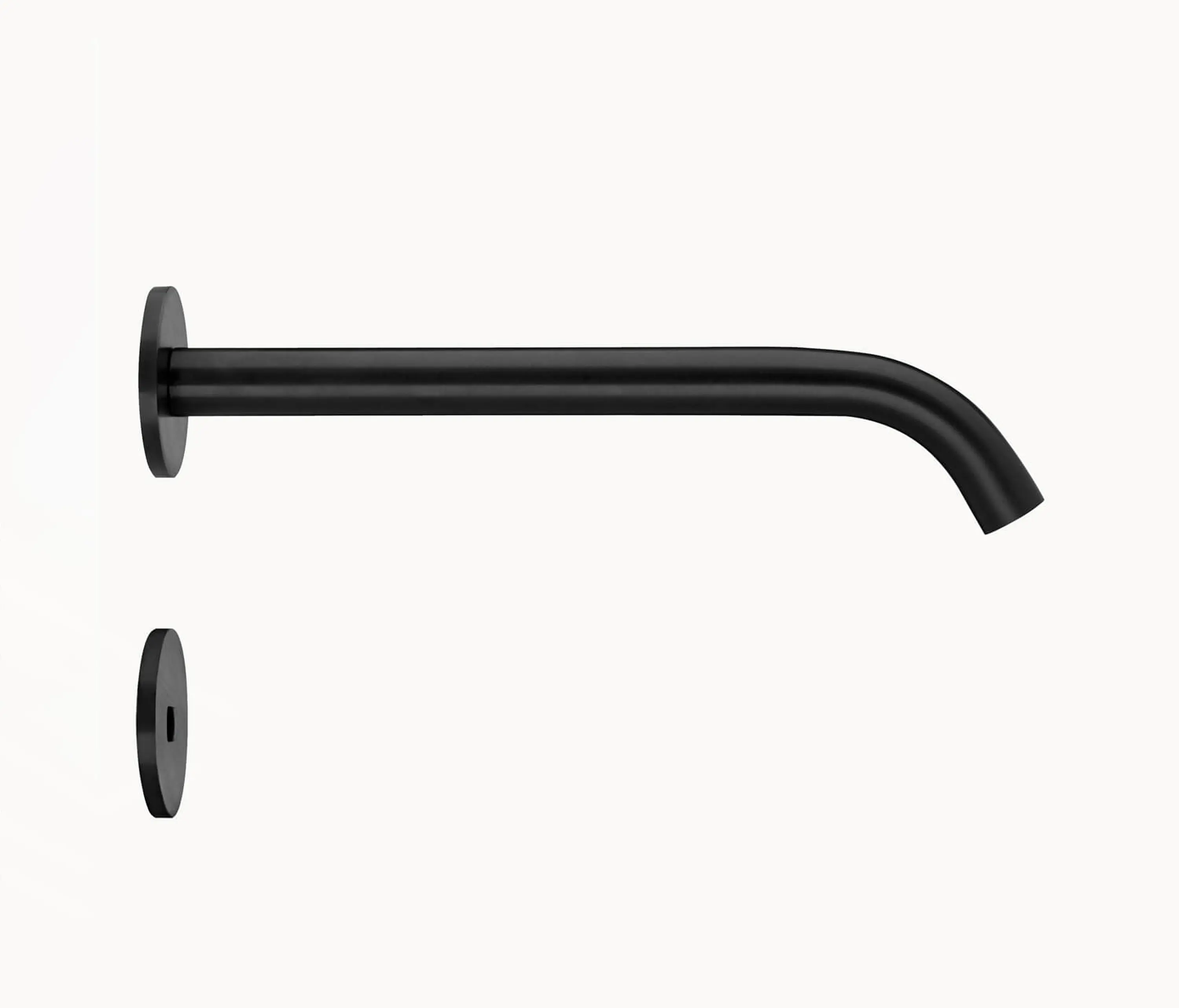

Radius | PVD Black TSL.885 220mm IR Sensor Tap - Battery Power

AISI 304 Stainless Steel

Coating Type PVD

Aerator Cascade

Water Pressure (Dynamic) 0.5 to 7.5 Bar [0.05 to 0.75MPa]

Water Temperature (max) 60°C

Flow Rates 3.8l/min [1.0gpm] Also available as optional extras: 1.35l/min [0.35gpm] 1.89l/min [0.5gpm]

ELECTRICAL Power supply 110-230 Vac, 50-60Hz, 1.5A Output (max) 6 Vdc, 1A

Power consumption < 87%

Active mode, 0.3W No load Solenoid valve type 6V

Latching Water Ingress IP55

Cable lengths 800mm – Power supply connection 800mm – Solenoid valve connection SENSOR FUNCTION

Sensor type Infrared

Pre-set sensor range 50 to 120mm Sensor range (max) 250mm Tolerance on range ± 20%

Comfort delay 2 sec

Security time-out 30 sec

Operating Temperature 0 to 50°C

Response Time (max) 0.3 – < 1 sec

Tolerance on times ± 20
