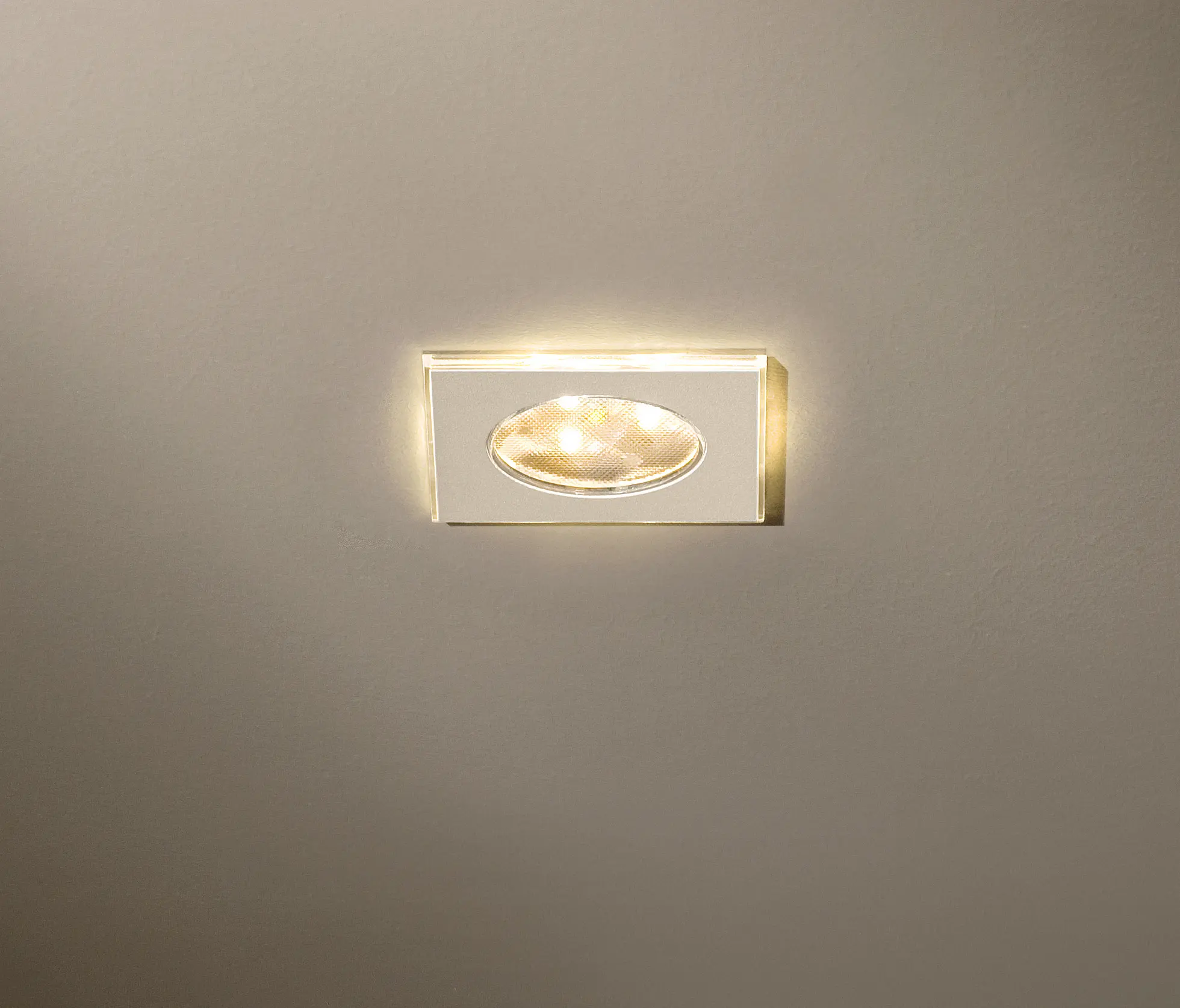

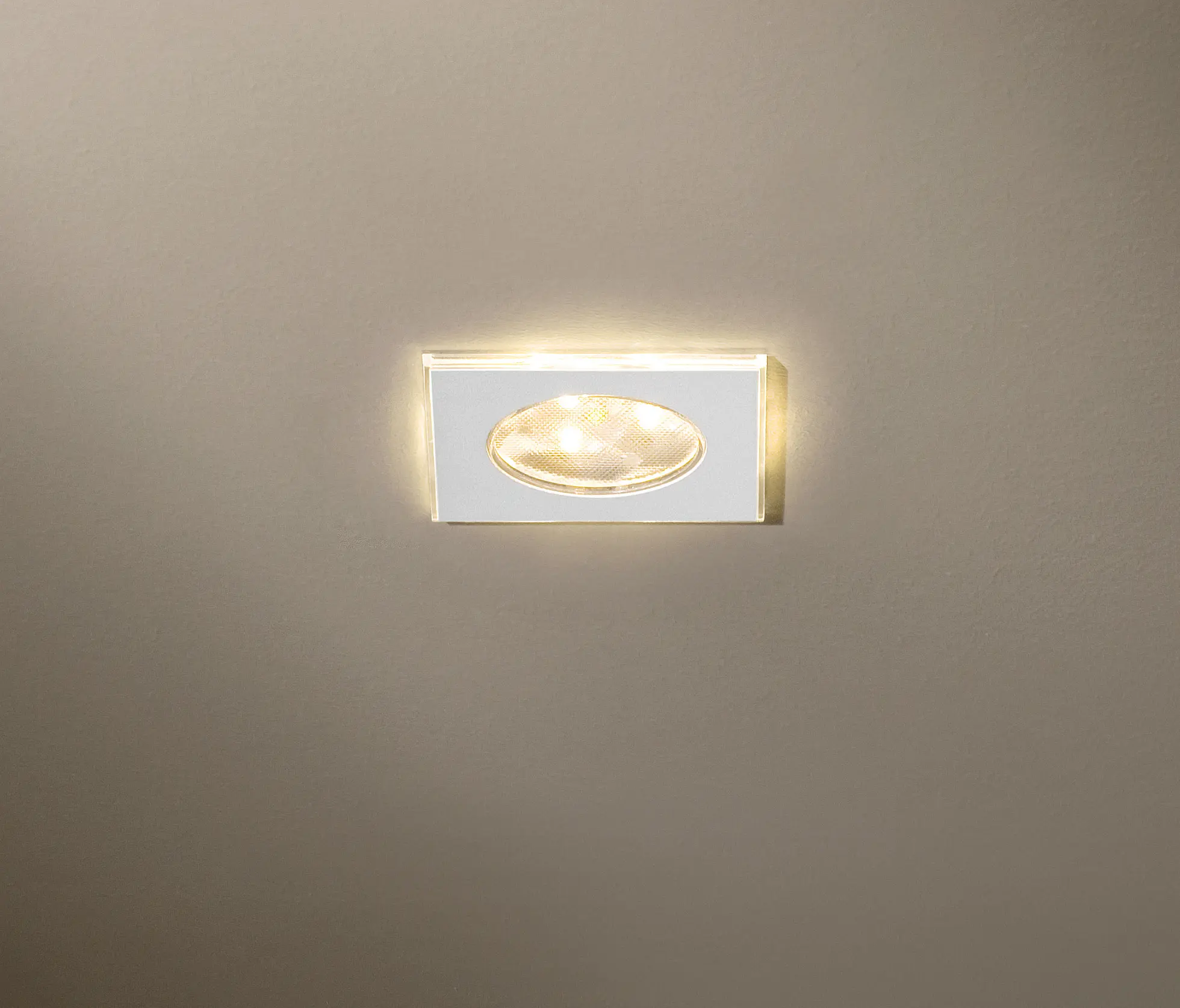

Saturn Square

The Saturn is a small downlighter designed to replace halogen downlighters in all his facets.

The Saturn has the complete led system incorporated in the fixture. The Saturn exist in various possibilities; you have a round one and a square one, you have versions to be controlled by 350mA, 700mA, 24V, 24V 1-10dimmable and as top of the bill the Saturn is also available with our HALOSPHERE technology!

The Saturn is very easy to install, and replaces perfect MR16 dichroic bulbs. It comes in 2 shapes (round and rectangular) and has different finishes as an option.

Materials and finish:

Fixture is made in transparent polycarbonate.

Lens is made in PMMA with microprisma optic integrated – 36° BEAM ANGLE

Installation and lamp replacement:

The unit is installed by means of two leaf springs for hollow or solid materials.

Indoor use only. Suitable for ceiling mounting.

Technical data:

Cut-out: Round hole diameter 70mm

Installation height: 45 mm (300lm) – 80mm(540lm)

Luminaire dimensions: 80 mm X80mm

Weight: 0,2 kg

Adjustability: N/A

Electrical data:

Lamp type: Powerled

Lamps: 3X3W

Lampholders: N/A

Control gear: not included

Input supply voltage: 350-700mA/24V DC

Connector block: 2 or 3x2,5mm² with strain relief

Glow wire resistance: 650°C

IP rating: IP20
