Archimedes

Pendant designfixture for T5 fluorescent tubes which combines high efficiency with excellent anti-glare. The fixture is made in colored polycarbonate which is equipped with an excellent reflector and dark louvre system.

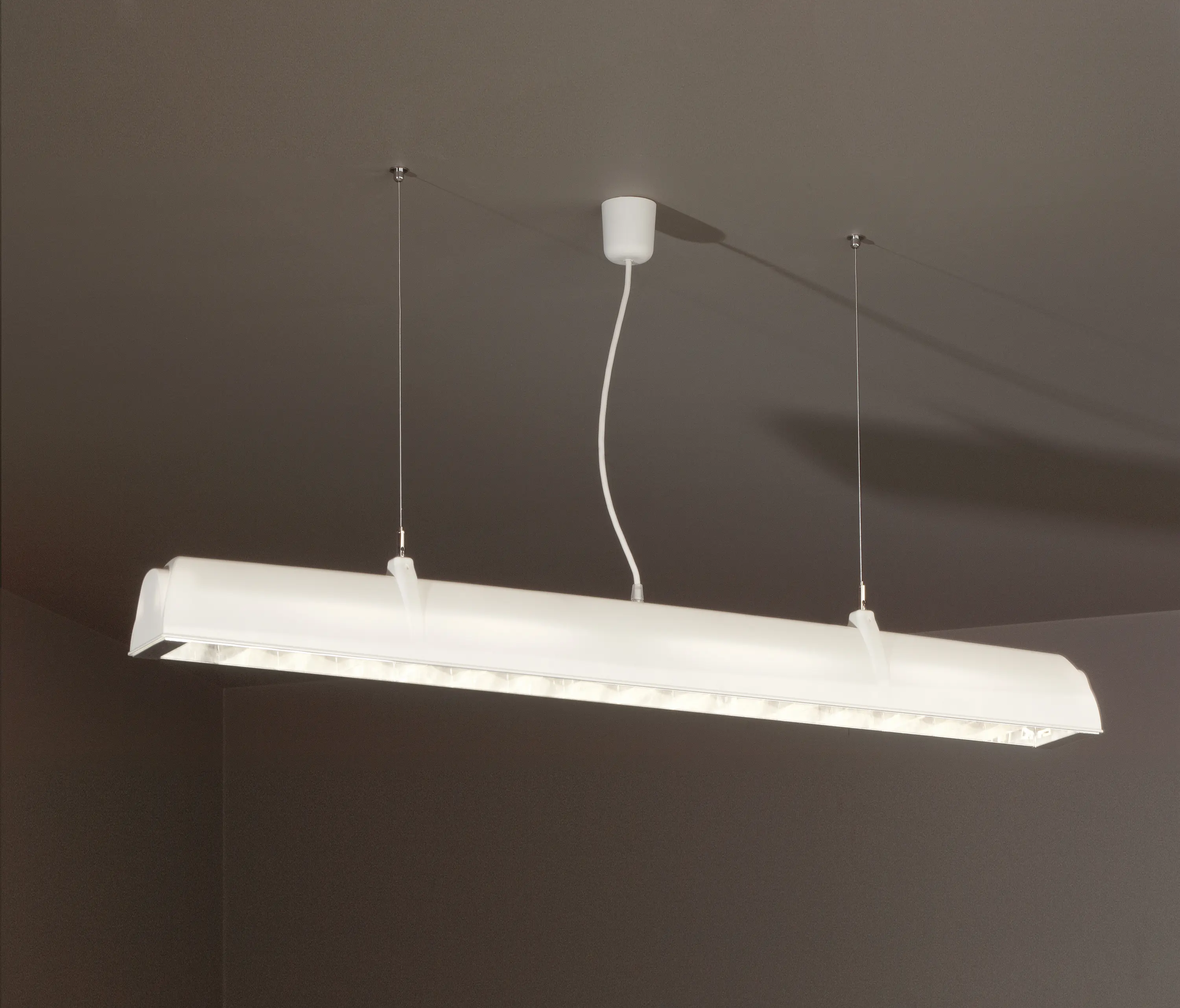

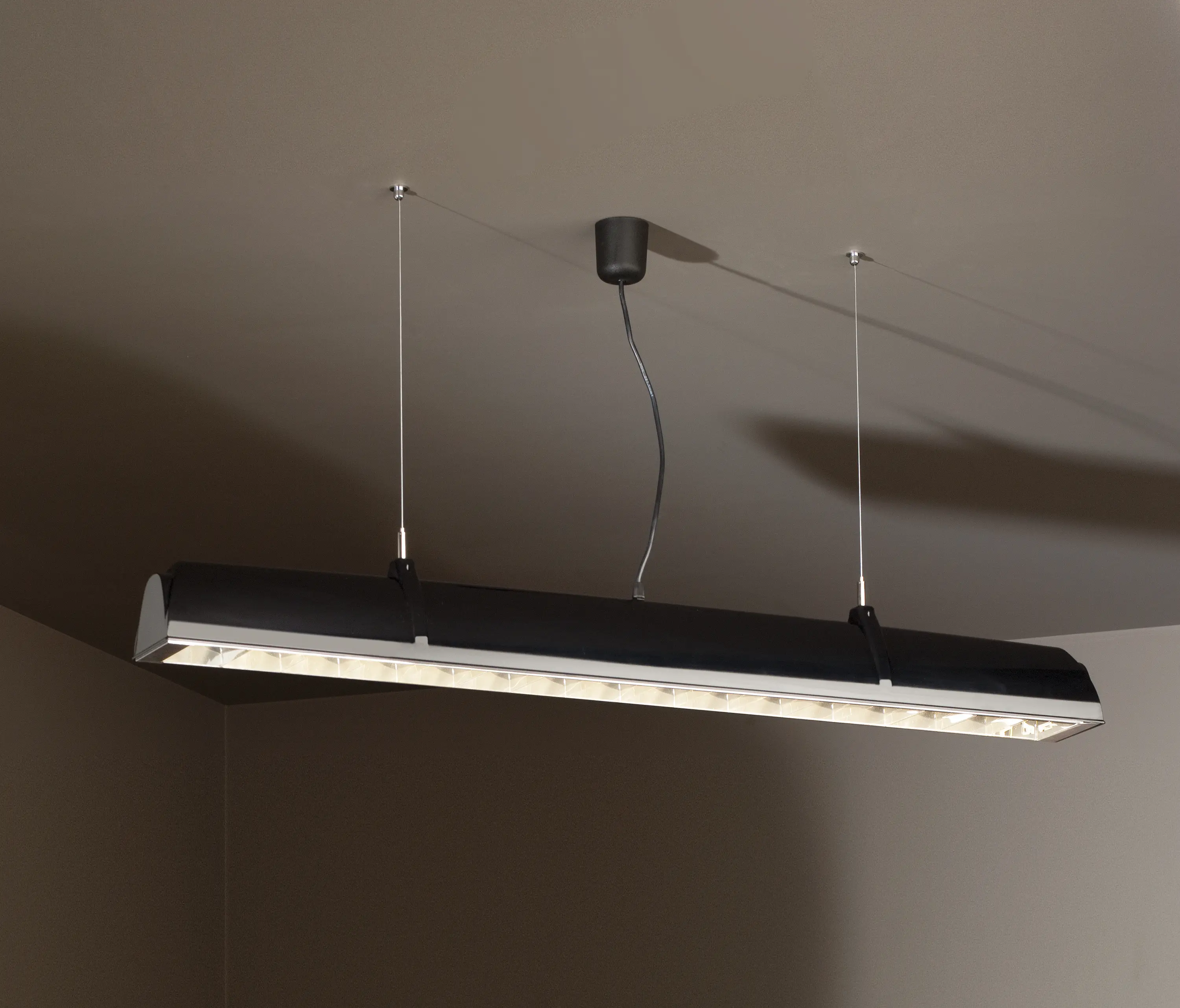

The archimedes is available in glossy white & glossy black, colored in the mass

The fixture has an incorporated electronic gear.

Dimmable versions are also available with various dimprotocols

Material & Finish:

Housing: Injected moulded polycarbonate from coloured compound

Bracket: Galvanised Steel

Raster: Aluminium reflector, 99,9% reflective material

Installation:

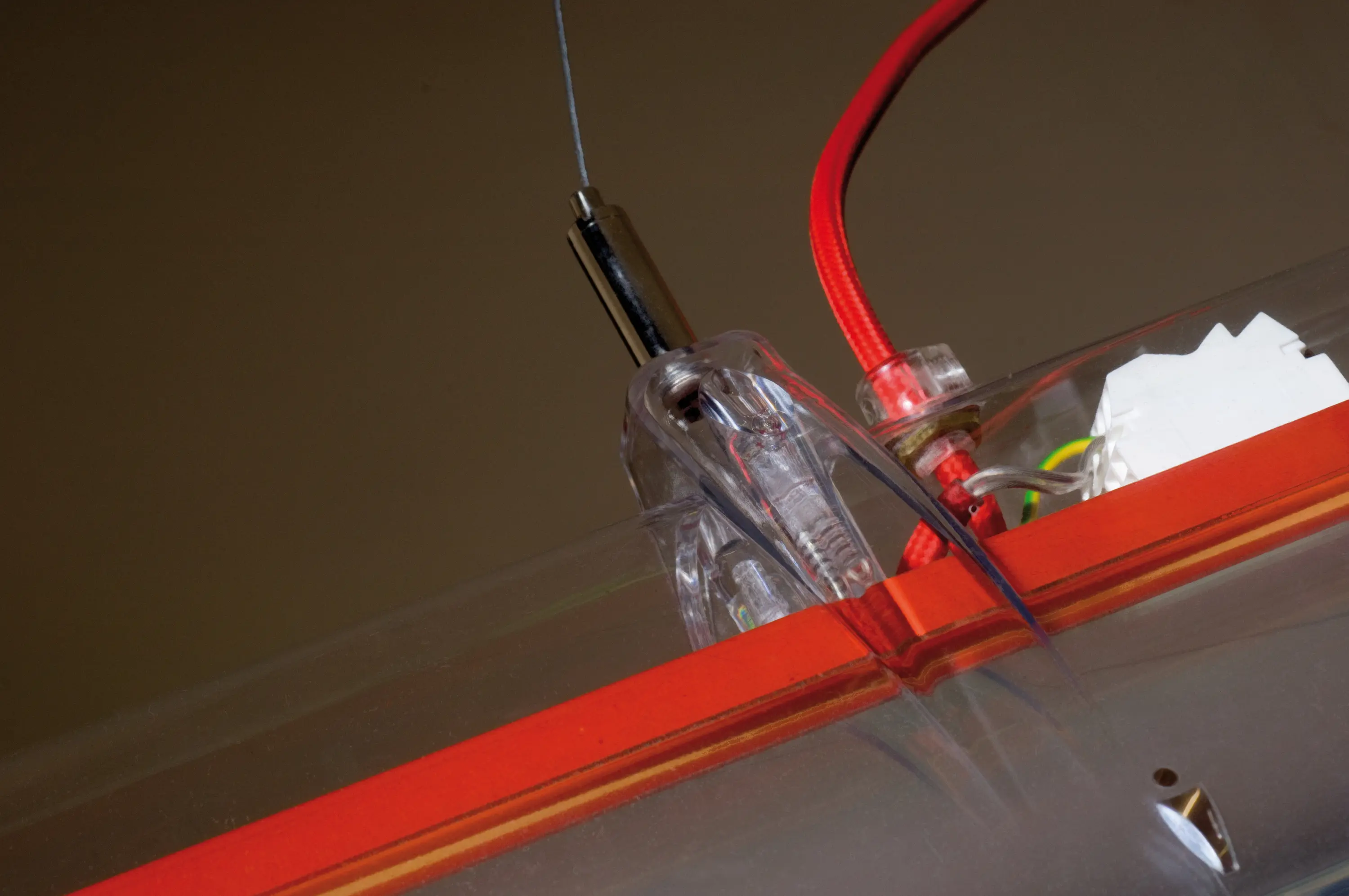

The fixtured can be easily installed on a ceiling by screwing 2 chromed plugs on the ceiling. Each chrome plug holds one steel cable to be connected with the fixture by 2 cable adjusters. In that way it is easy to install the archimedes at any desired height.

Bulbs can easily be replaced by removing 4 small lifters at the inside of the dark louvre system, so the dark louvre system can be removed and the bulbs can be replaced.

Technical data:

Luminaire dimensions: 1190X114X122mm

Weight: 1,1 kg

Electrical data:

Lamp type: T5 28/54W

Lamps: 2

Lampholders: G5

Control gear: Electronic HF gear

Input supply voltage: 230V-50Hz

Connector block: 2,5 mm²

Glow wire resistance: 960°C GWT

IP rating: IP20
