ONDA flame

ONDA: VIBRANT GEOMETRY WITHOUT AUSTERITY.

rohi’s new ONDA fabric reinterprets the traditional twill weave. The elegance and clarity of this geometric classic weave have been retained and enhanced with a new vibrancy and warmth. The result is a modern, self-confident design with a distinctive profile and expressive character.

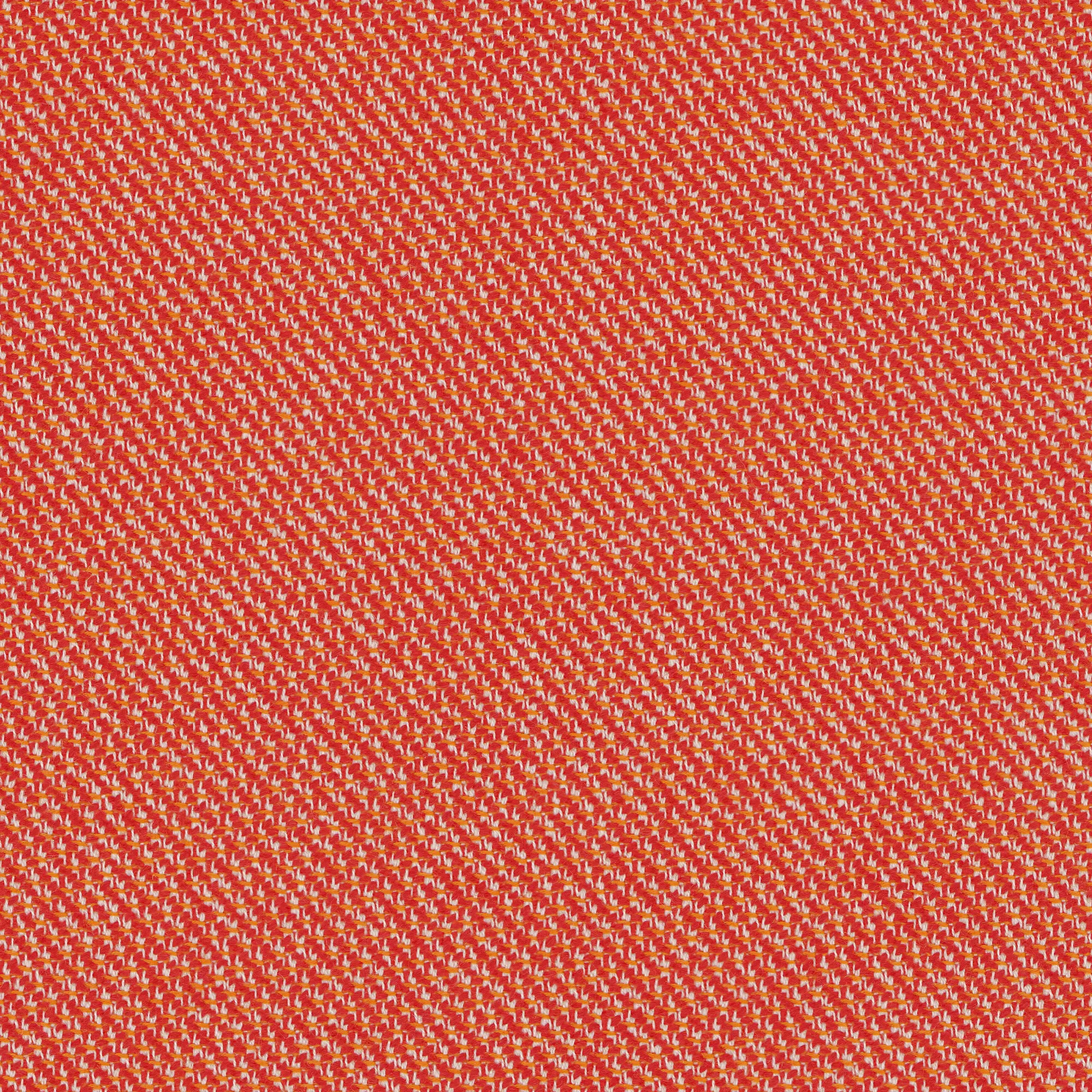

The classic twill structure is subtly interrupted by a fine bouclé touch and a vibrant mix of colours. The two- to four-colour designs draw inspiration from how light and colour interact in nature’s geometric structures, such as in dune and wave formations.

Like every rohi wool fabric, ONDA embodies premium quality ‘Made in Germany’. Manufactured from the naturally renewable raw materia finest virgin wool, ONDA has unique quality advantages and is ideal for residential and public use thanks to its durability, resistance to dirt, flame retardancy and acoustic properties.

Besides 30 colours within the standard collection, our special manufacturing process allows to implement individual colours on request. Thus, also customized colours are possible from our classic ONDA.

DESCRIPTION OF FABRICS

Design: ONDA

Content: 95% virgin wool 5% polyamide

Weight approx.: 670 g/m²- 940 g/lm

Width approx.: 140 cm

QUALITY DETAILS

Abrasion: 60.000 rubs ISO 12947-2

Light transmission: DIN EN 410

Lightfastness: ≥ 5 ISO 105-B02 (yarn dyed)

Pilling: ≥ 4-5 ISO 12945-2

virgin wool – worsted yarn quality

easy care, breathable and stain-resistant

durable, hard-wearing

yarn dyed for brilliant colours and

good lightfastness

don’t expose to direct sunlight

production and design ‘Made in Germany’ since 1933

FLAME RESISTANCE

wool is naturally flame retardant

rohi wool fabrics satisfy the following fire norms

with no additional flame retardant treatment:

CAL TB 117 – 2013

EN 1021-1/ -2

BS 5852 part 1: 1979

UNI 9175 1IM

IMO 2014/90/EU Marine Equipment Directive (MED)

with additional flame retardant treatment:

BS 5852: 2006 Crib5

DIN 4102-1 B2

EN 13501-1 E

FAR 25.853 12 sec. Vertical

BKZ 5.3 SN 198898

ACOUSTIC

Flow resistivity: Rs = 633 Pa s/m ISO 9053-1

Sound absorption folded: αw = 0.75/ C ISO 11654

ECOLOGY

natural, renewable raw material

IWTO Guidelines for Wool Sheep Welfare

RAL DE-UZ 117 Att. 3b for “Blue Angel”

without flame retardant

AB 2998 (US export standard)

REACH (EU export standard)

MORE FEATURES

special finish: anti-shrink, anti-pilling

dimout option on request

development of individual fabrics for

architects’ and designers’ concepts

special colours from 25 lm
