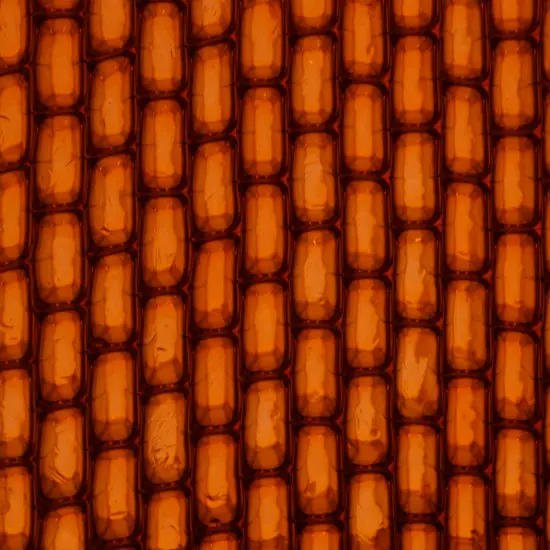

Cast Polymer Panel AO/O

Panelite™ Cast Polymer Series panels use the same honeycomb core technology as Laminated Series panels, but instead of using pre-fabricated facings laminated to the honeycomb, facings are cast directly onto the cores. Although the casting process yields a slightly heavier panel, at 2.5 pounds per square foot, it also provides a much stronger core to facing bond while maintaining an excellent strength to weight ratio. This makes the Cast Polymer panels ideal for a wide range of applications, including light load bearing and furniture applications,

vertical walls, doors, and ceilings.

Cast Polymer Series panels offer the greatest design versatility of the Panelite™ range.

Core: aluminum over-expanded, 3/8” x 5/8” cell

Facing Options:

[RC] untinted polyester resin

[R*] tinted polyester resin

Standard colours: clear (C) blue (B), very light blue (VLB), dark blue (MUB), red (R), dark red (VFR), magenta (M), orange (O), green (G).

Custom colours: provide Pantone® number or color chip

Product Codes: Core + Facing

eg: AO/RC = aluminum overexpanded, 3/8"x5/8" cell + untinted polyester resin

Panel Dimensions:

core: 48” x 96”, 48” x 120” standard

Panel Thickness:

1" or 1-1/2" standard

Custom Thickness:

Subject to availability

Perfomance/ Aesthetic Criteria:

Exterior Use: Pending

Class C fire rating: For flame spread only

Class A fire rating: No

Integral edge option: Yes

Curving: Yes – curved in production only

Standard Colors: Clear, Dark Blue, Blue, Very Light Blue, Green, Yellow, Orange, Magenta, Red, Dark Red.

Custom colors: Yes, no minimum order

Easy to cut, drill, machine on site: Yes

Pre-fabricated elements built to order: Yes

Relative Characteristics:

Stiffness: High

Light transmission: Medium

Privacy: High

Sound transmission: Low

Weight: Medium (2.5 psf)

Applications:

Walls: Yes

Doors: Yes

Ceilings: Yes

Facades: No

Wet applications (shower, sauna): Yes

Furniture: Yes

Light load-bearing (work, dining, display surfaces): Yes

Recommended Installation system: Panelite™ ITL or Panelite™ PFS
