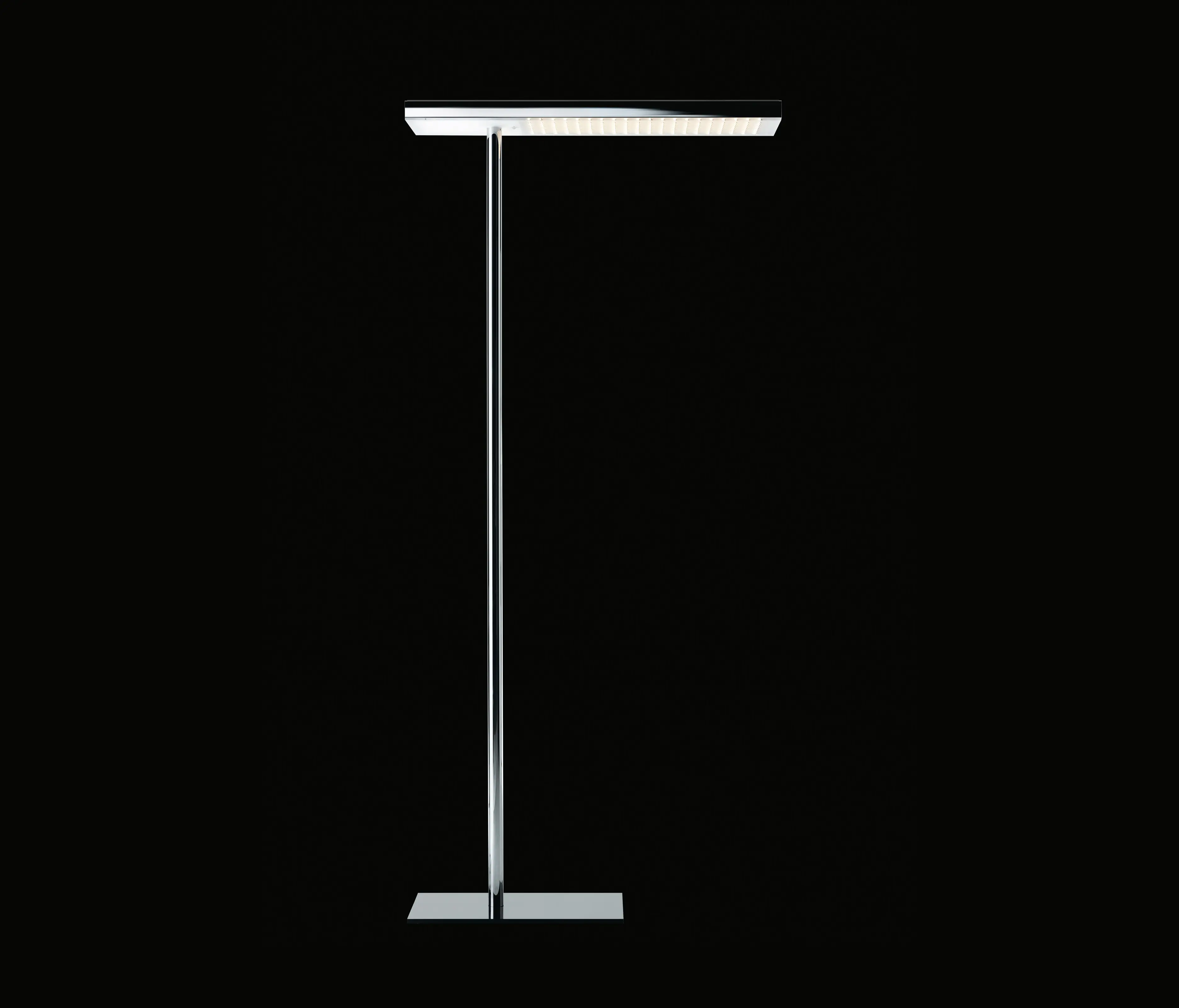

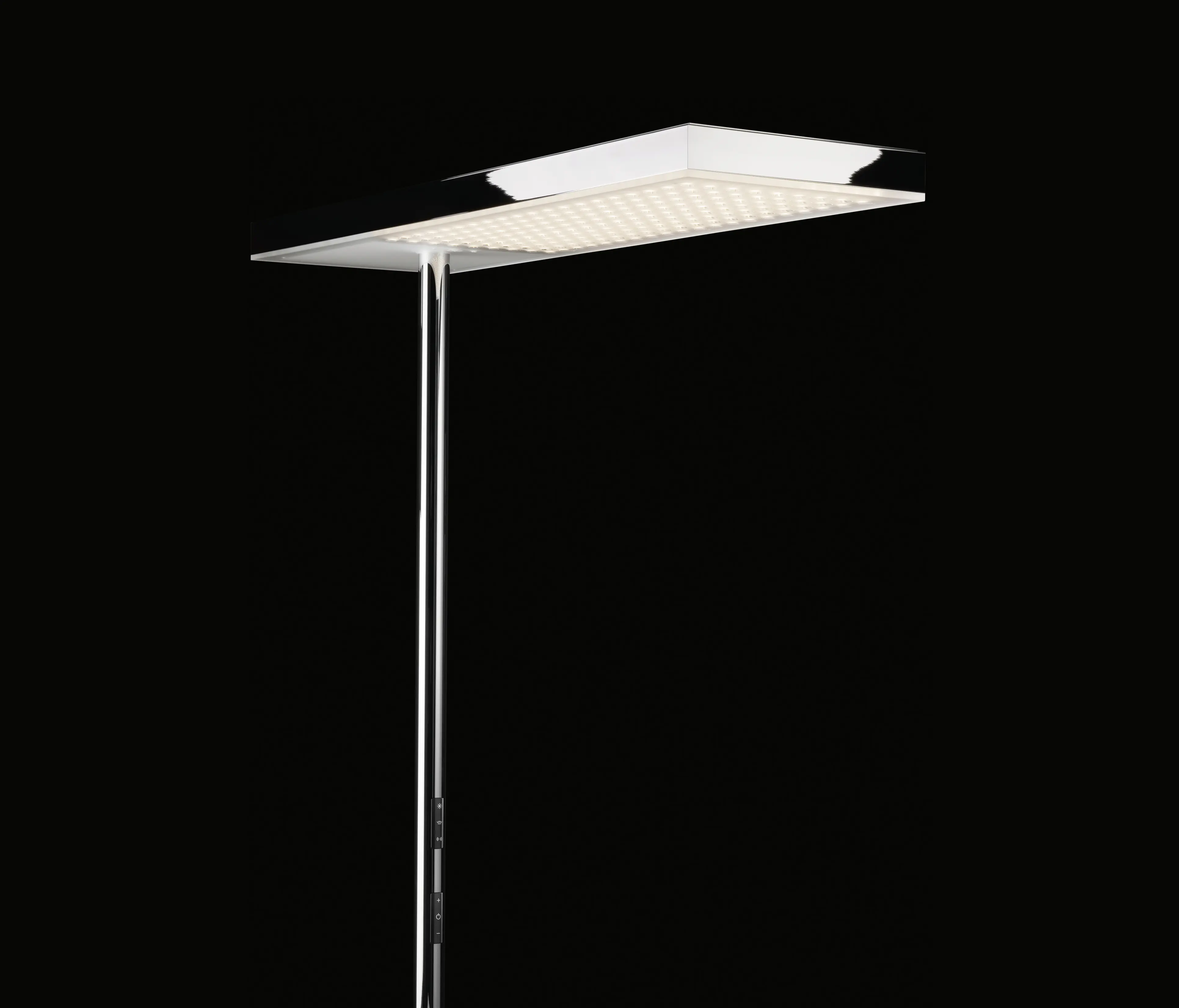

Office Air 2.0

LED workplace luminaire with switchable indirect light component, light distribution: 70 % upwards, 30 % downwards, diffusor made of acrylic glass for reducing glare and directing the light downwards by means of precisely aligned conical indentations, suitable for workplace lighting in accordance with DIN EN 12464-1, luminaire head and tube made of aluminium, chrome plated or anodised (see matrix), base plate made of painted steel (anthracite/RAL 7016 or aluminium grey), dimmable, presence detector and ambient light sensor can be activated separately, the luminaire is operated via two capacitive control units.

spezification 1: Floorstanding luminaire

spezification 2: Presence detector and ambient light sensor

spezification 3: chrome plated

dimension:

865 x 270 x 1950 mm (luminaire)

500 x 300 x 14 mm (base plate)

supply cord with right angle plug, length 2500 mm

input voltage: 230 V AC (with converter)

Wattage: 62,7 W

luminous flux: 8400 lm

colour temperature:

3000 K (552-368)

4000 K (552-369)

Workplace light: yes

emergency lighting: no

UGR:

X: 4H

Y: 8H

S: 2,0

H: 0,75

reflection factors: 70% / 50% / 20%

UGR transversal: 16

UGR axial: 18

light distribution: 70 % upwards, 30 % downwards

degree of protection: IP 20
