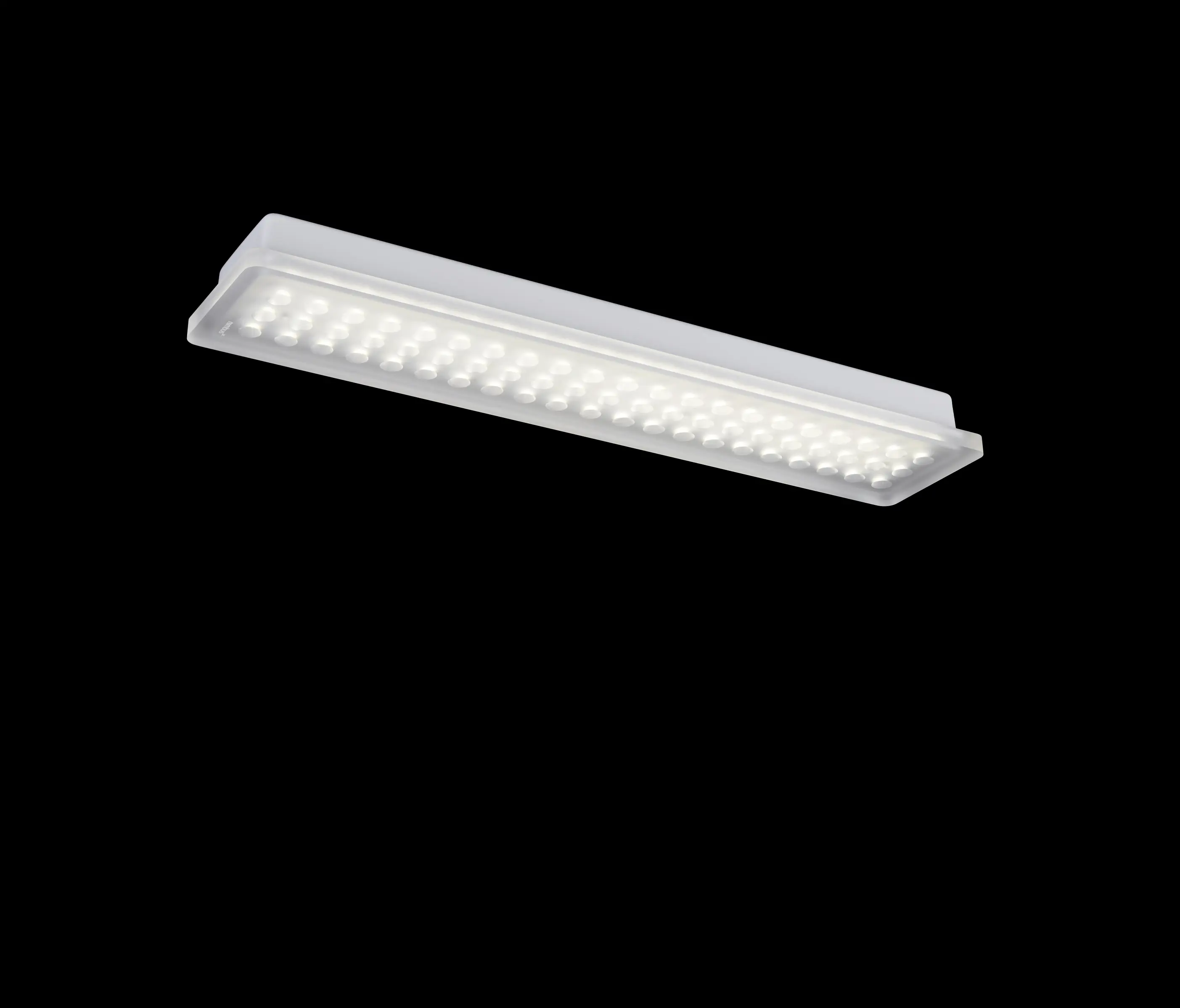

Modul L 63 Led Surface
Architonic ID: 1158249
LED.next ceiling luminaire with plastic surface-mounted housing, brilliant white with integrated converter for connection to (existing) 230-volt ceiling outlets or, in the version without integrated converter, to the (existing) 24-volt ceiling outlets. Beam mainly direct (approx. 95 %), wide beam thanks to dimples inclined 10 degrees outward. Diffuser surface made of matt acrylic glass. 63 dimples for directing light and suppressing glare. Additional ceiling lighting and very even, almost ceiling height illumination of walls from secondary light.
dimensions:
455 × 95 × 43 mm
light technology:
LED.next technology, 17 W power supply, 230 V AC (with converter) / 13 W power supply, 24 V AC (without converter)
luminous flux:
968 lm
temperature:
2700 K / 3000 K / 4000 K
light distribution:
95 % direct beam
degree of protection:
IP 20
Concetto
In terms of form, the new Modul L luminaires fit seamlessly into the Modul Q and R ranges and add an elongated suspended luminaire to the product family which provides efficient, wide-area room lighting for offices and workplaces. The individually suspendable Modul L 196 with its 40 watt power consumption is the perfect alternative to conventional louver luminaires. With a minimal height of just 19 mm, it fits in perfectly with the surrounding architecture and its optimised conical indentations provide a pleasant light in compliance with DIN 12464-1 specifications for glare suppression. Additional indirect lighting for atmospheric room illumination can be integrated in the extremely slim central technical channel of the Modul L 196.
