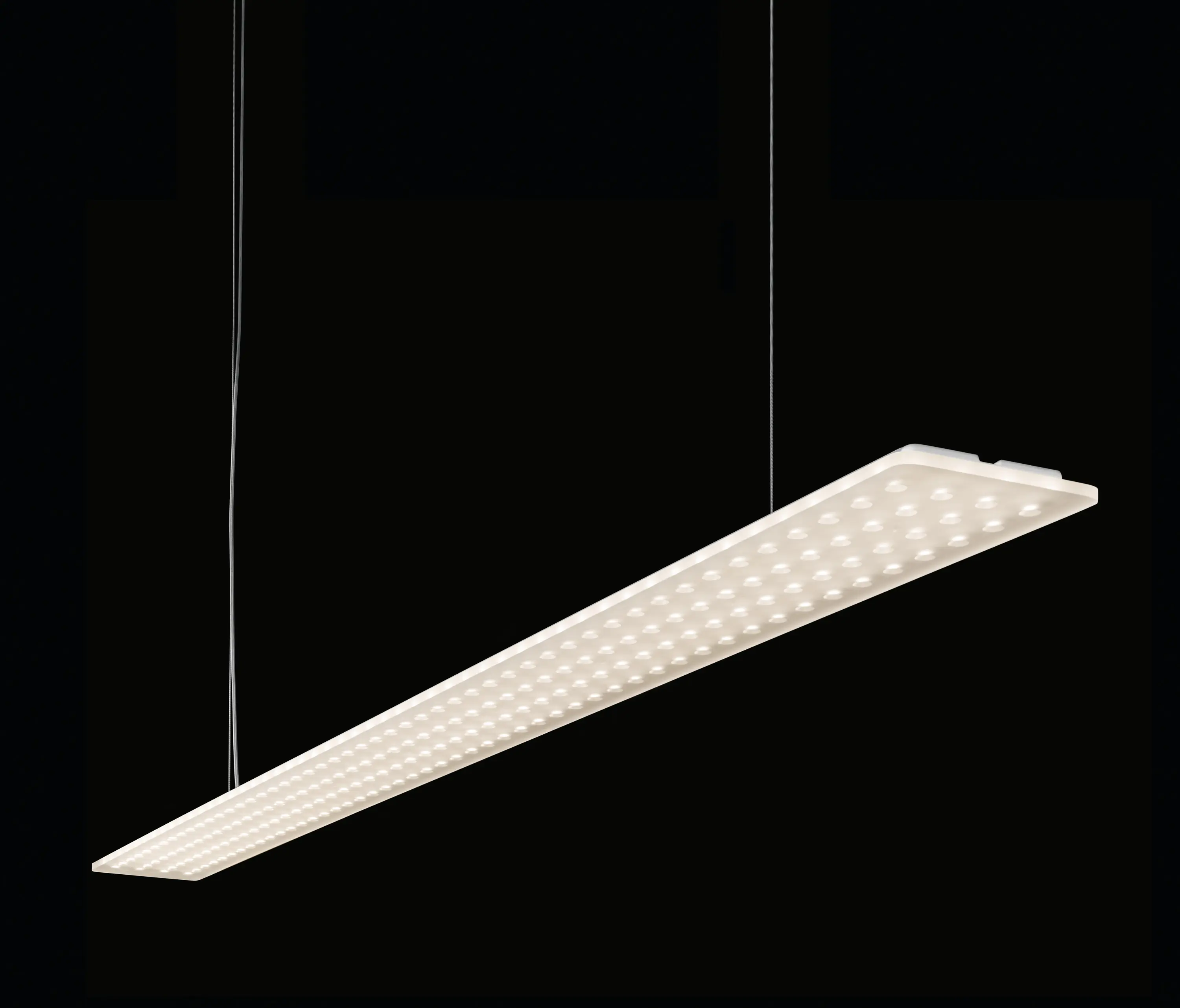

Modul L 196

Name: Modul L 196
Brand: Nimbus
SKU: 010-614 (2700 K)/009-282 (3000 K)/010-095 (4000 K)

Lampade sospensionediNimbus

Visita il prodotto sul sito di Nimbus

Home

Lampade sospensione

Modul L 196

Informazioni su questo prodotto

Architonic ID: 1183593

SKU: 010-614 (2700 K)/009-282 (3000 K)/010-095 (4000 K)

Anno di Lancio: 2012

Extremely slim, height-adjustable linear LED luminaire for wide-area room lighting for offices and workplaces. Version with additional indirect lighting for atmospheric ceiling illumination available. Aluminium support, anodised. Diffuser made of matt acrylic glass, 196 conical indentations for directing light. Glare reduction in accordance with DIN EN12464-1, suitable for the workplace.Version for 24 volts or external converter. Includes stainless steel suspension cables, adjustable, 100–1400 mm.

1510 x 135 x max. 1400 mm

LED technology, 23,5 W power supply, 24 V AC

ca. 3300 lm

98 % direct beam

IP20

*Converter in separate converter housing, white* - switchable- dimmable, 1-10 V- dimmbable, DALI/switchDIM- External converter for cavity mounting- Cover for ceiling opening

Concetto

In terms of form, the new Modul L luminaires fit seamlessly into the Modul Q and R ranges and add an elongated suspended luminaire to the product family which provides efficient, wide-area room lighting for offices and workplaces. The individually suspendable Modul L 196 with its 40 watt power consumption is the perfect alternative to conventional louver luminaires. With a minimal height of just 19 mm, it fits in perfectly with the surrounding architecture and its optimised conical indentations provide a pleasant light in compliance with DIN 12464-1 specifications for glare suppression. Additional indirect lighting for atmospheric room illumination can be integrated in the extremely slim central technical channel of the Modul L 196.
