Cubic 64
Architonic ID: 1499296
SKU: 555-789 (2700 K) 555-790 (3000 K) 555-791 (4000 K)
Anno di Lancio: 2017

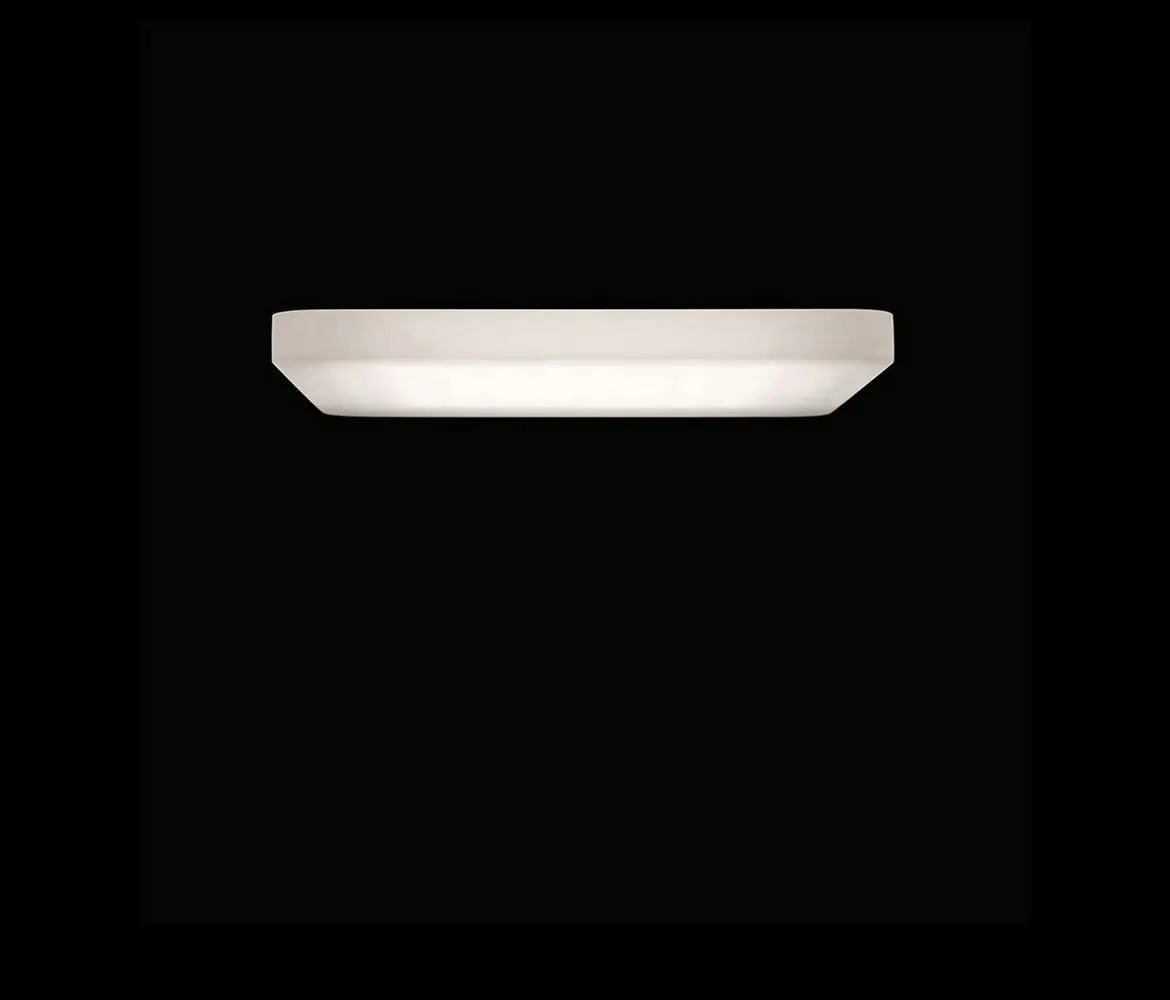

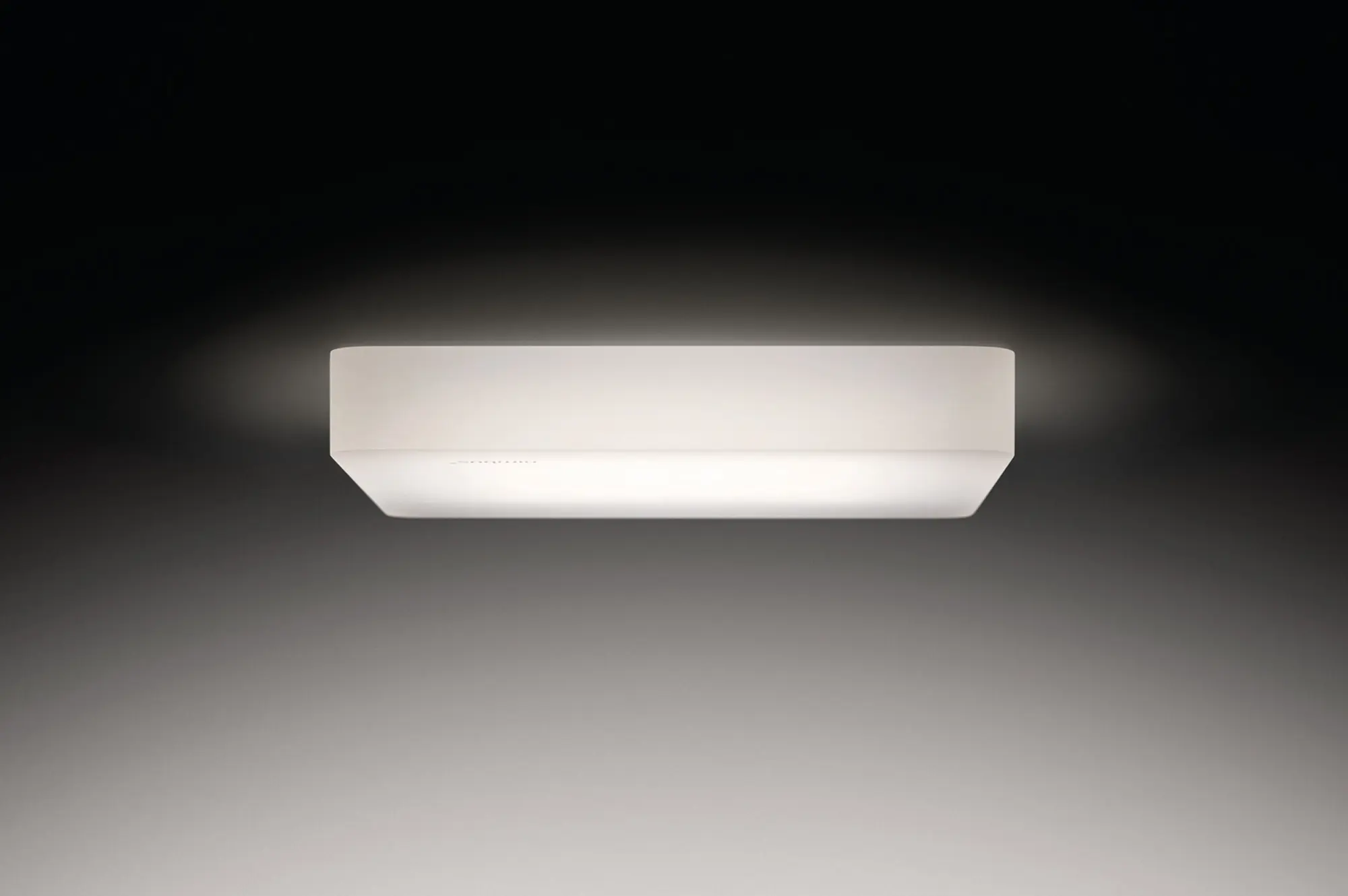

Cubical LED ceiling luminaire, very uniform and smooth light distribution by means of a satin-frosted and closed diffusor surface, wide beam, additional ceiling lighting and a very even, almost floor-to-ceiling illumination of walls by sideward secondary light, version for 24 V DC, external Nimbus converter required.
**Please order converter and mounting set separately according to your individual mounting situation**, besides the luminaire head will adapt to any magnetic metal surface (e.g. cable trays in buildings) without installation accessories.
dimension
240 x 240 x 20 mm
input voltage
24 V DC (without converter)
wattage / colour temperature
Art.-Nr. 555-789: 11,5 W / 2700 K
Art.-Nr. 555-790: 10,9 W / 3000 K
Art.-Nr. 555-791: 10,5 W / 4000 K
CRI > 90
luminous flux
1100 lm
UGR
X. 4H
Y: 8H
S: 1,0
H: +0,1/-0,1
reflection factors: 70/50/20
UGR transversal: < 23
UGR axial: < 23
light distribution
100 % direct beam
degree of protection
IP20
accessories
- mounting accessories CUBIC 64
- ceiling ring for direct mounting *002-383*
- bracket for cavity mounting *006-610*
Concetto
Formal simplicity, energyefficiency and a high quality of light based on LED – these are the properties that continue to characterise the Nimbus Modul Q 36 right up to the present day. For over 10 years now, these minimalistic luminaires have excited architects and their clients all around the world and have lit up thousands of buildings – from large-scale projects through to private homes. The Modul Q 36 is a lighting icon and the trademark of the Nimbus Group. It is considered the archetype of high-quality general lighting with LEDs.
During the course of a decade, the striking lighting module has been carefully adapted to keep up with the changing state of the art, optimised, enriched with different versions and introduced to different areas of use. All the while, it has remained true to itself – a real original.
Now the new CUBIC is here. The luminaire's monolithic body with its gently rounded edges and noble, matt surface unmistakably shows the strong character of the original. By foregoing the conical indentations that were the hallmark of its predecessor and which were developed to suppress glare, the CUBIC reinterprets the Nimbus archetype in a brand new fashion.
Two surprisingly new and different features are its entirely closed harmonious surface and the even more strongly accentuated, serene, square form. The CUBIC completely blends in with the surrounding architecture and gives off a 100 percent antiglare, pleasant and soft light.
Heritage and vision. The CUBIC signals the end of an era while simultaneously heralding in a new age. Its clear-cut form and the pure light mark the beginning of an entirely new development in innovative Nimbus LED luminaires.
Questo prodotto appartiene alla collezione:
Acrilico, Plastica
