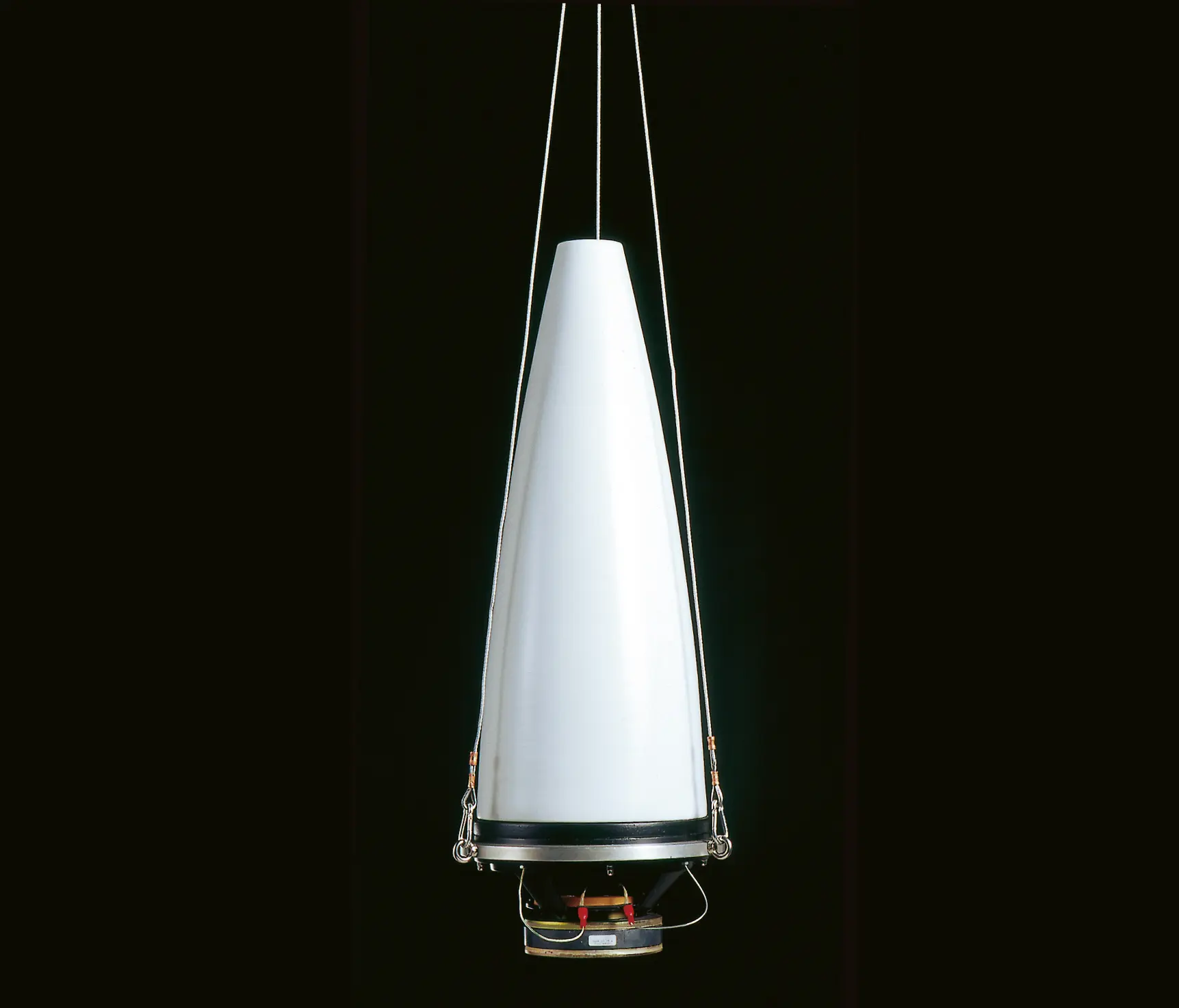

Wodan

A sub-woofer designed specifically to support Thor; Wodan is extremely powerful and has a very high efficiency- 1000 W and 96dB- both in the hanging and the standing versions.

Available in a carbon fibre or ceramic body, it uses two massive opposing 250mm speakers in push-pull / trasmission line reflex mode configuration (NAC Sound patent) to extend the sound emission to the low and extremely low frequency range.

Dimension: high 80 cm, diam. 28cm

Position: hanging/floor

Cabinet: porcelain

Power max: 1000 W rms

Power recommendation: 500 W rms

Impedance: 4 ohm-Re 3.2 ohm

Effective frequency range: 38 Hz-150 Hz

Efficiency: 96dB

Cabinet acoustics: conical transmission line

Cabinet volume: 42 L

Magnetic shielded: No

Woofer: push pull 250 mm, aluminium basket

Wave emission: omnidirectional

Connections: speakon

Weight: 21 kg

Weight: 5.6 kg
