Wash And Dry Units | All-in-One | UCM093AB Black Finish

Name: Wash And Dry Units | All-in-One | UCM093AB Black Finish
Brand: Mediclinics
SKU: 8435265869925

Rubinetteria lavabidiMediclinics

Visita il prodotto sul sito di Mediclinics

Home

Rubinetteria lavabi

Wash And Dry Units | All-in-One | UCM093AB Black Finish

Informazioni su questo prodotto

Architonic ID: 20772223

SKU: 8435265869925

Anno di Lancio: 2024

Wash and dry unit UCM093AB, sensor operated, made of chrome-plated brass black finish.

Materials & Finishes:

- Chrome plated brass black finish

- Stainless Steel AISI 304 ( Hand Dryer)

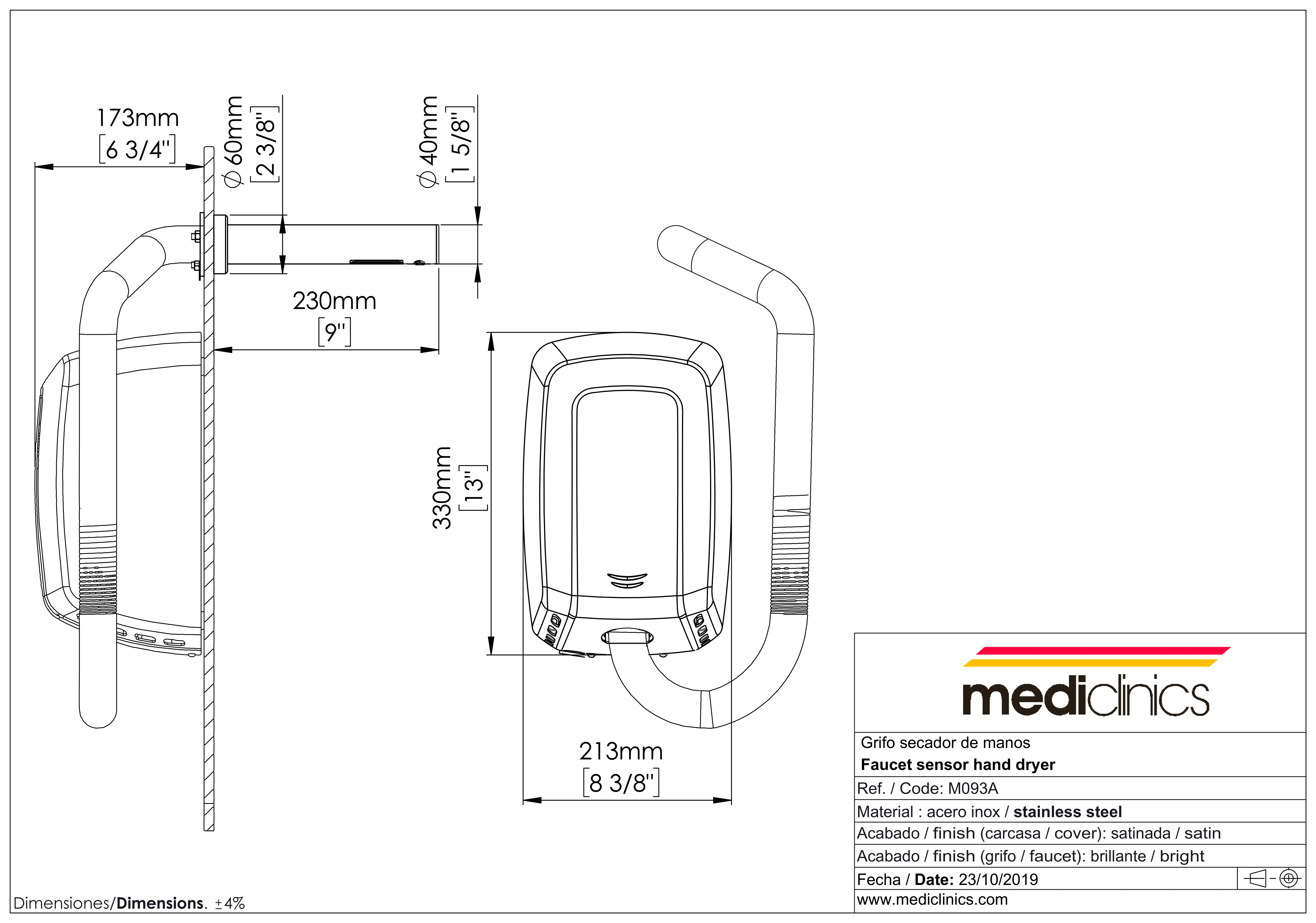

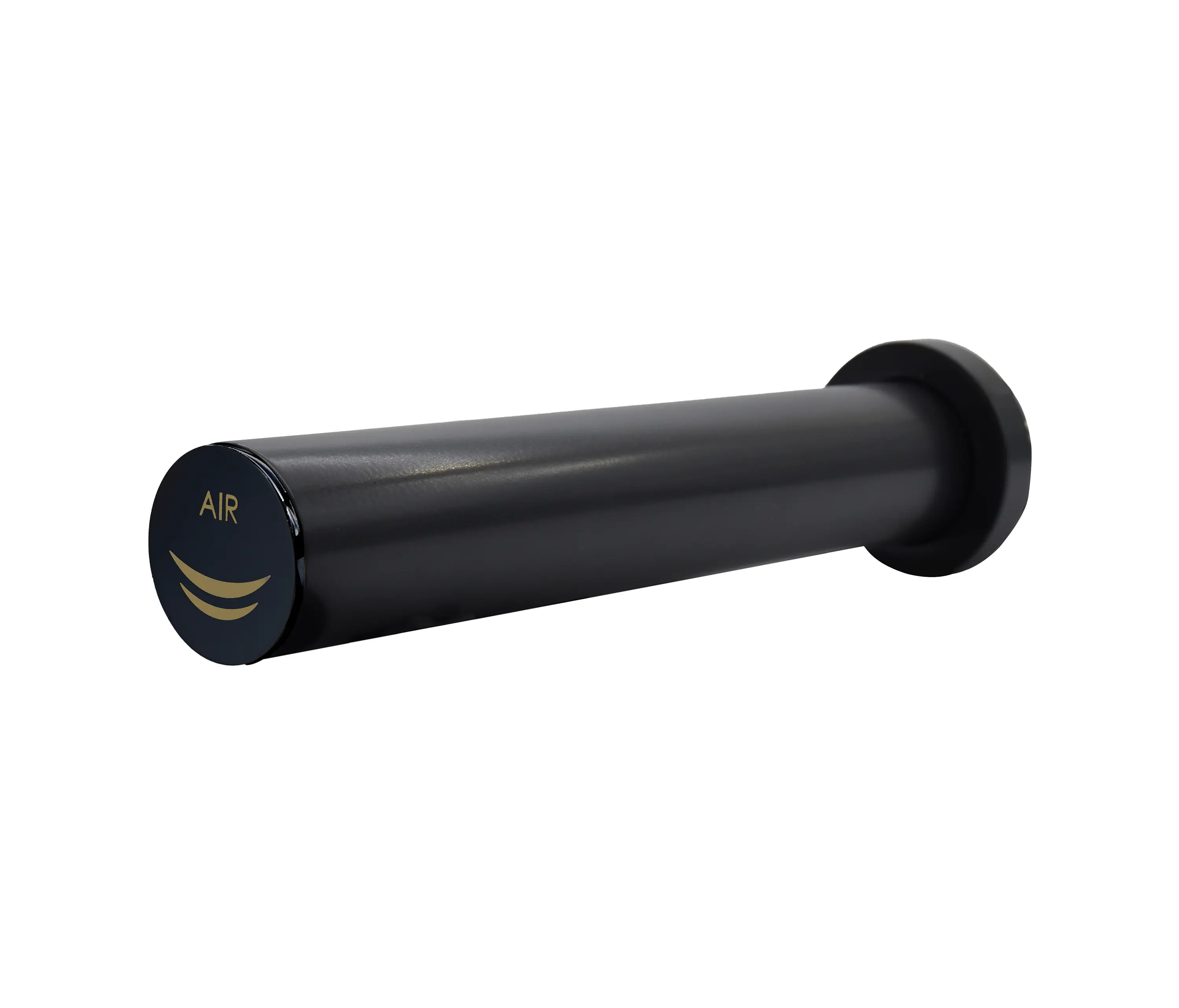

Technical specifications M093 AB (Hand dryer)

- Voltage: 220-240V

- Frequency: 59/60Hz

-Total power: 420-1,500W

- Power consumption: 3.2-6.4A

- Drying time: 10-15 seconds

- Air velocity: 190-400Km/h

- Sound pressure: 67-72dBA

- Protecting rate: IP23

Technical specifications DJ 003 AB (Soap dispenser tap)

- Soap reservoir capacity: 1.5l

- Quantity dispensed per pump: 0.5-2ml

-Suitable soaps: viscosity of 100-3500 cP and a neutral ph

Technical specifications GA 003 AB (Water tap)

- Voltage: 220-240V-50/60Hz

- Water inlet pressure: 0.5-8bar

-Water Flow ( at 3 bar): 5.0 l/min

- Detection range: 5-25cm

-Safety cut-out: 60

Certificates:

- GS

- CB

- EMC

-WRAS

Concetto

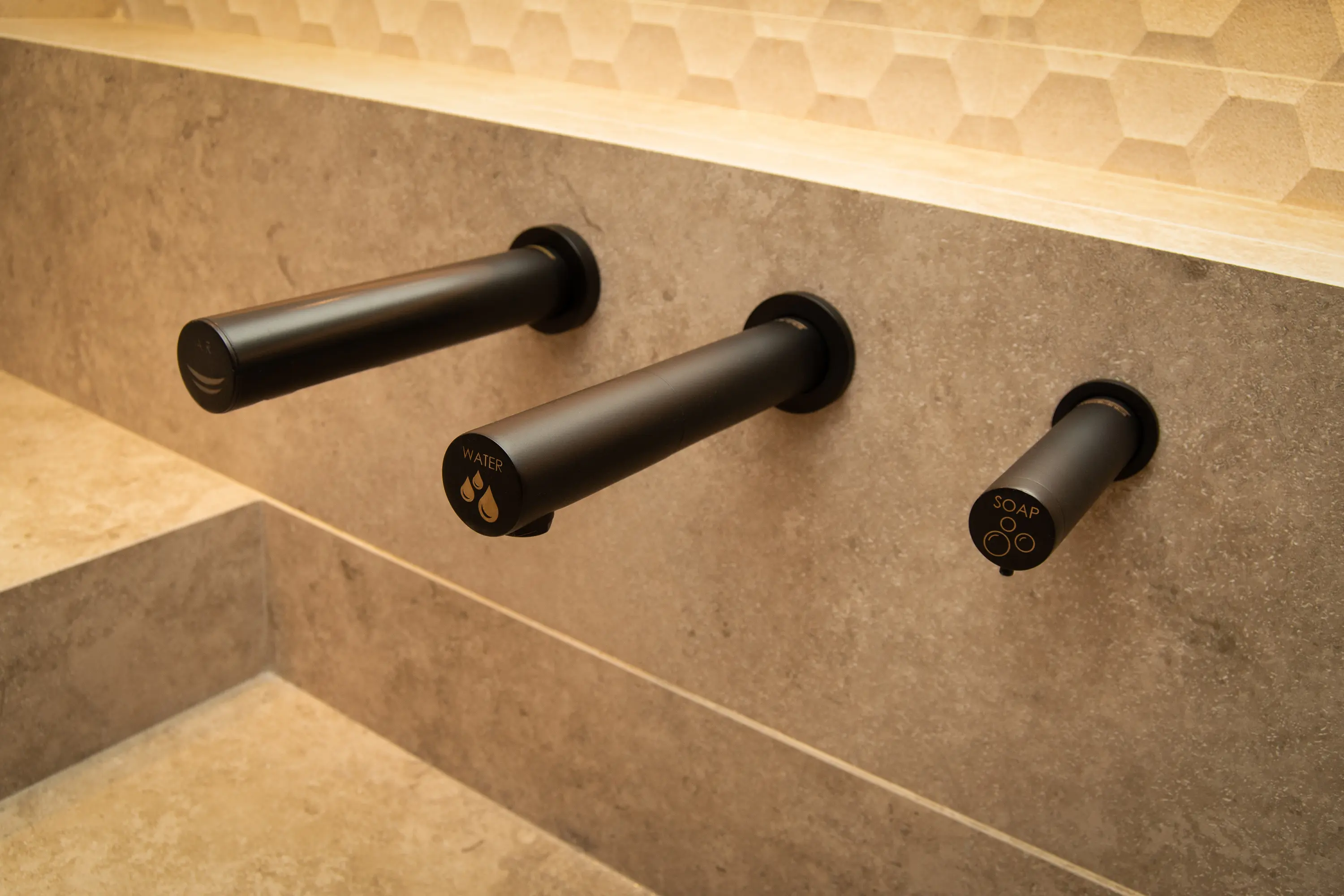

All-in-One is a unique hand washing and drying system integrated into the washbasin itself or to be wall mounted. All-in-One is an automatic soap dispenser, tap and hand dryer so you don't have to move around in the bathroom. The All-in-One system can be supplied as a set or individually as stand-alone products. The design, aesthetics and functionality of the All-in-One system allows designers to create minimalist, functional and safe spaces.
