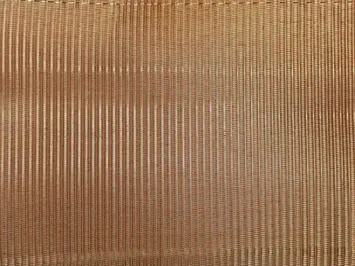

Waterloo

Material: Phosphor bronze

Warp mesh: 10 (per 25.4mm), Wire: 0.4 mm

Weft mesh: 95 (per 25.4mm), Wire: 0.3 mm

Open area: 0%

Weight: 2.66 Kg/m2

Availability

Stainless Steel, Phosphor Bronze and Brass.

Typical Applications

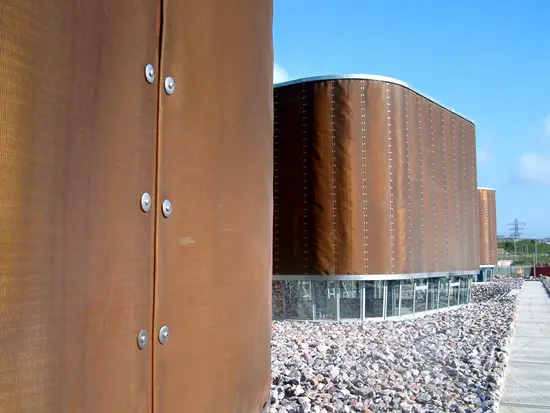

Specifically developed as heavy duty rain screen cladding. The edge can be folded and supplied with reinforced inserts and eyelets.

Locker is a UK based supplier of architectural wire mesh products certified to BS EN ISO 9001:2008. With comprehensive in house AutoCAD facilities we are able to offer a complete package from development of the architectural wire mesh specification through design, fabrication, supply and installation of the finished screens.
