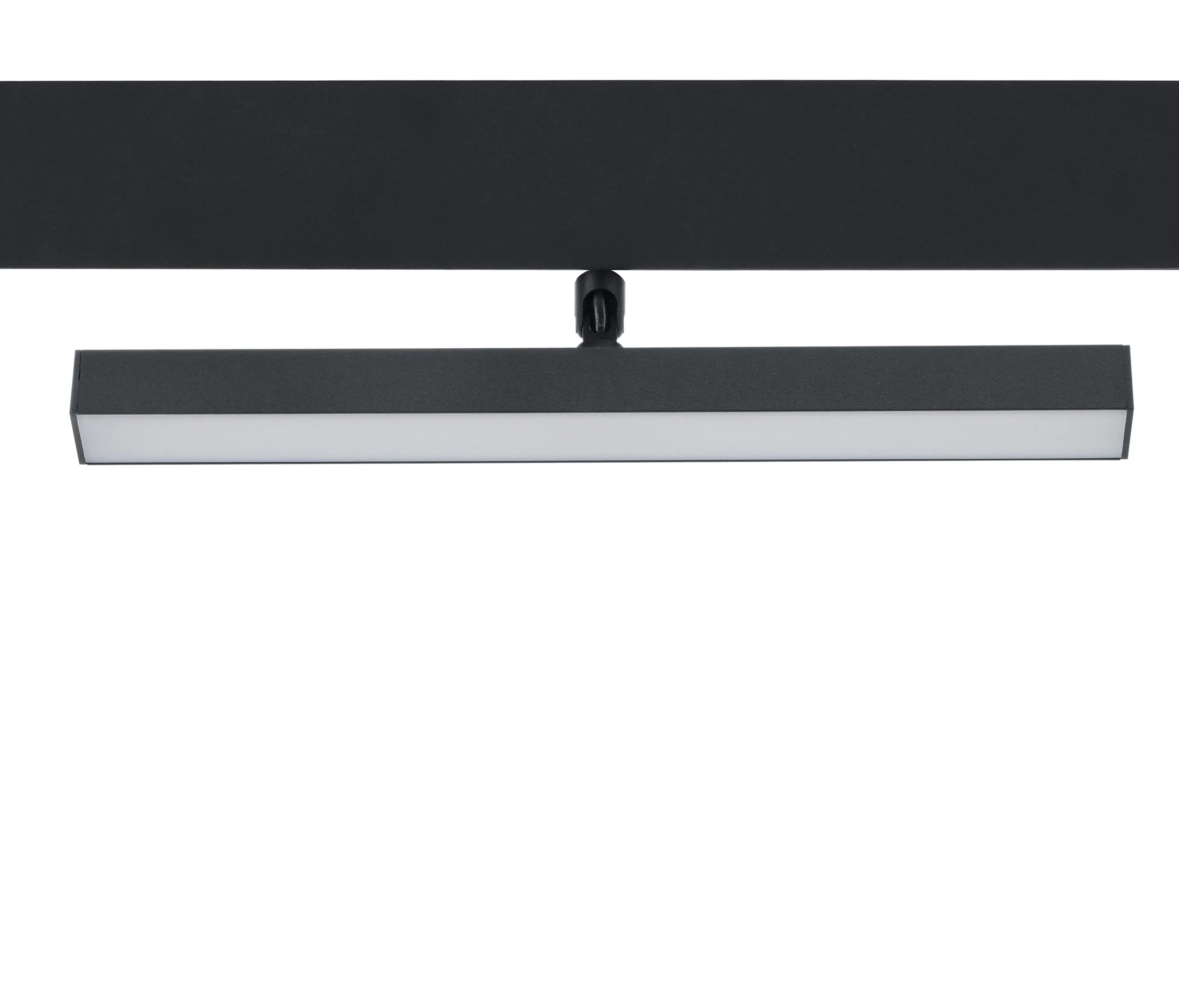

DASH

GENERAL DATA

Casing: aluminium

Mounting: to the track 48V

Ingress protection IP: IP20

Operating temperature: from -40°C to +40°C

Lifetime L80B10: 100 000h

ELECTRICAL DATA

Nominal voltage: 7W

Nominal freguency: 50-60 Hz

Protection class: III

Contains light source: Yes

Dimming: on-off, DALI

OPTICAL DATA

Material: PMMA

Light distribution: symmetrical

LIGHTING DATA

Light source: LED

Colour rendering index: CRI>90 (on request: CRI>95)

Tolerance of luminous flux: +/-10%

300mm / 2700K / 401lm / 7W / 57lm/W

300mm / 3000K / 418lm / 7W / 60lm/W

300mm / 4000K / 436lm / 7W / 62lm/W

600mm / 2700K / 803lm / 13W / 61lm/W

600mm / 3000K / 837lm / 13W / 64lm/W

600mm / 4000K / 871lm / 13W / 67lm/W

1200mm / 2700K / 1606lm / 26W / 62lm/W

1200mm / 3000K / 1673lm / 26W / 64lm/W

1200mm / 4000K / 1742lm / 26W / 67lm/W
