U10

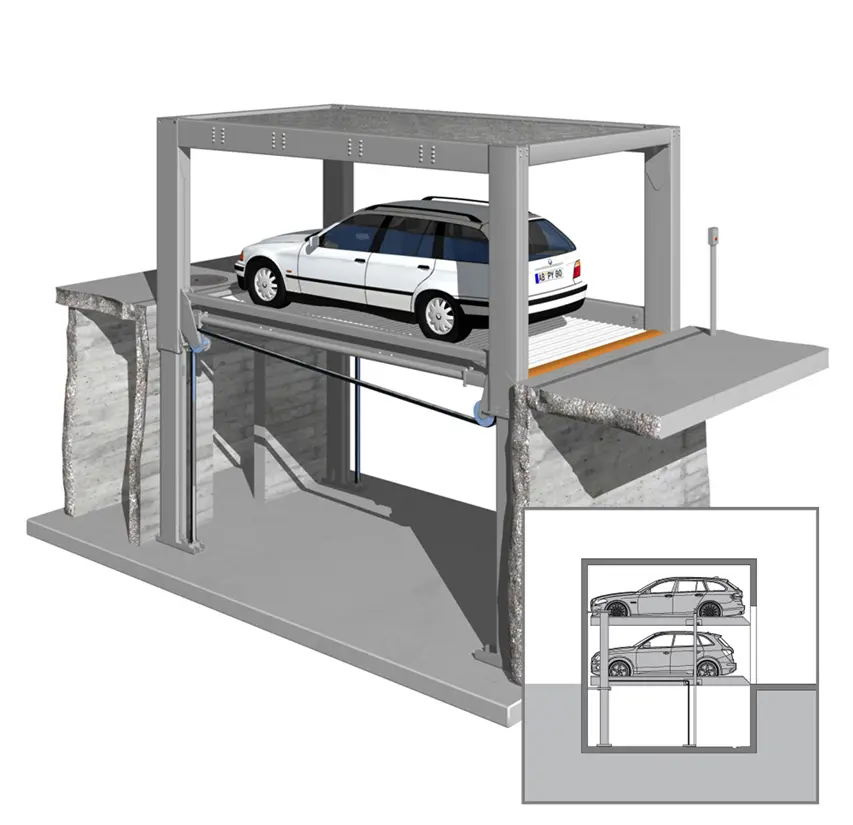

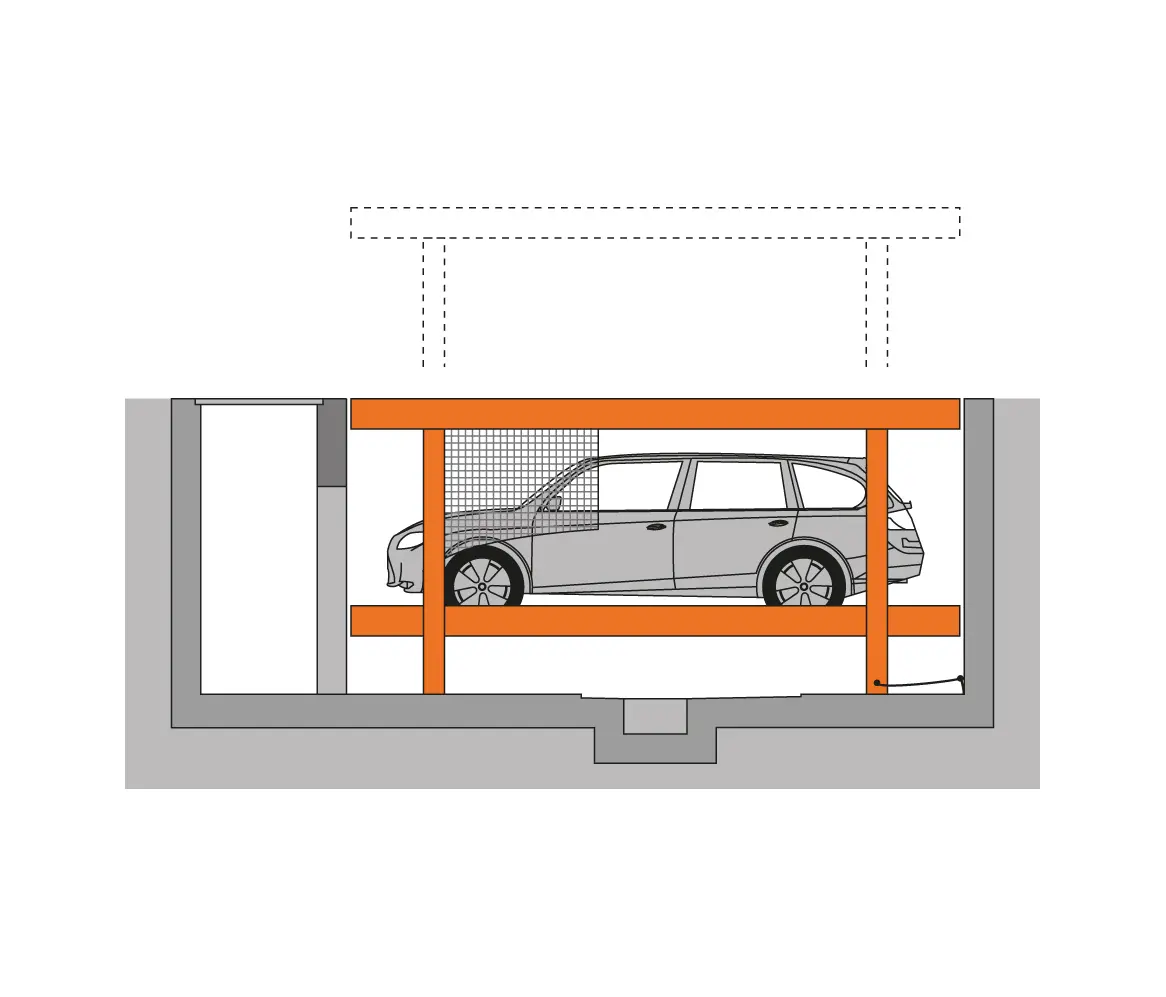

Simply let your system disappear underground. The premium underfloor systems from KLAUS Multiparking no longer move upwards but move one, two or three levels downward. The upper platform when lowered is flush with the ground. Above ground, you gain a car-free area, which you can now design according to your own ideas – for an increased value for your real estate.

The type MultiBase U10, U20 and U3 is traversable and can be used in courtyards, front gardens and green areas. They combine highest comfort with optimum use of space.

The modern systems set new technological standards  and offer space for up to two cars.

This way, parking space for cars can be realized  where no space was available so far, even in inner courtyards or confined access areas.

A true improvement in everyday quality of life.

SPEZIFICATION

• Single platforms U10 (EB) for 1 vehicle

• Pit depth of standard type: 250 / 255 cm

• Vehicle measurement: Heights from 165 and / or 200 cm,  lengths from 500 to 520 cm

• Usable platform width for standard type: 230 cm, optionally up to max. 270 cm

• Standard design: 2.000 kg per parking space, optional max. 2.600 kg EB

• Horizontal access to all parking levels

• Flush-mounted and traversable, controlled rainwater drainage

• Freely configurable surface area: cassette-construction lid, which can be adapted  to surroundings based on customer request (e.g. stone lining, turf)

• Platform surface: EasyWalk, optional AluLongLife or StandardGrip

• independent parking

FIELD OF APPLICATION

Residential and commercial buildings, single and semi-detached houses, office buildings, underground parking lot, hotels, surrounding property, outdoor installation, installation in backyards
