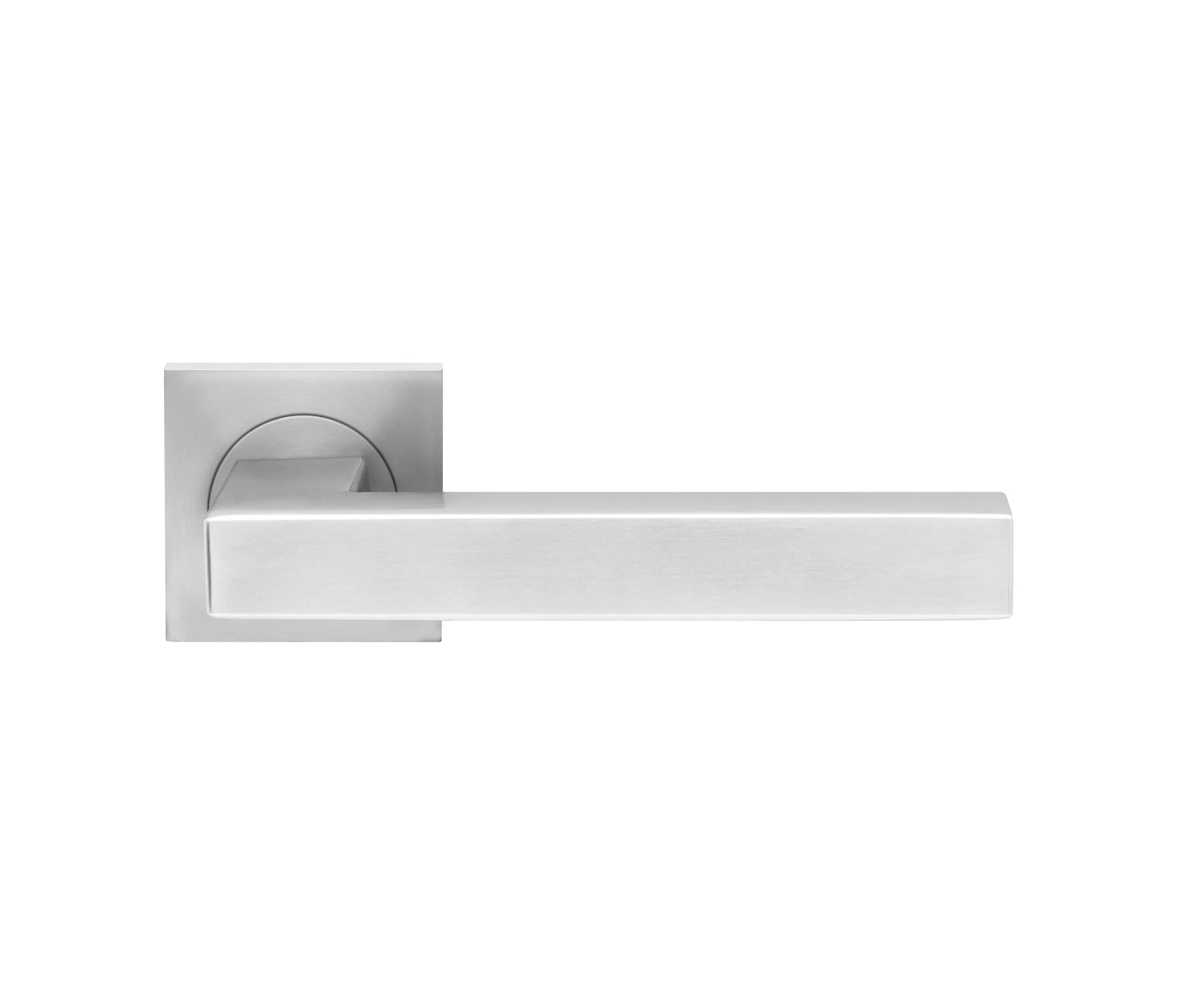

Seattle ER46Q (71)

Lever sets for standard doors acc. to DIN EN 1906, category of use 3

Lever version ER46Q Seattle

by KARCHER DESIGN

Solid 3-piece fixing rose

and escutcheons squared, 52 x 10 mm,

square version

with 7mm lugs and nylon floating bearing,

sprung loaded inner plate with attached lever

Heavy duty bolt through M4 fixings

8mm offset drilled spindle,

diameter of handle: 19 mm x 22mm

standard door thickness: 39- 47 mm

Options:

OS – without escutcheon

BB – supplied with lever key escutcheons

PZ – supplied with euro profile escutcheons

BAD – supplied with bathroom turn/release set

FS – supplied as fire-resisting set

Finish: satin stainless steel (finish code 71)

Karcher article no.:

ER46Q OS 71 – without escutcheon

ER46Q BB0 71 – supplied with lever key escutcheons

ER46Q PZ0 71 – supplied with euro profile escutcheons

ER46Q BAD 71 – supplied with bathroom turn/release set

ER/FS46Q PZ0 71 – supplied as fire-resisting set, with square roses

Finish: polished stainless steel (finish code 72)

Karcher article no.:

ER46Q OS 72 – without escutcheon

ER46Q BB0 72 – supplied with lever key escutcheons

ER46Q PZ0 72 – supplied with euro profile escutcheons

ER46Q BAD 72 – supplied with bathroom turn/release set

ER/FS46Q PZ0 72 – supplied as fire-resisting set, with square roses

Finish: Oil Rubbed Bronze (finish code 81)

Karcher article no.:

ER46Q OS 81 – without escutcheon

ER46Q BB0 81 – supplied with lever key escutcheons

ER46Q PZ0 81 – supplied with euro profile escutcheons

ER46Q BAD 81 – supplied with bathroom turn/release set

ER/FS46Q PZ0 81 – supplied as fire-resisting set, with square roses

Finish: Cosmos Black (finish code 83)

Karcher article no.:

ER46Q OS 83 – without escutcheon

ER46Q BB0 83 – supplied with lever key escutcheons

ER46Q PZ0 83 – supplied with euro profile escutcheons

ER46Q BAD 83 – supplied with bathroom turn/release set

ER/FS46Q PZ0 83 – supplied as fire-resisting set, with square roses
