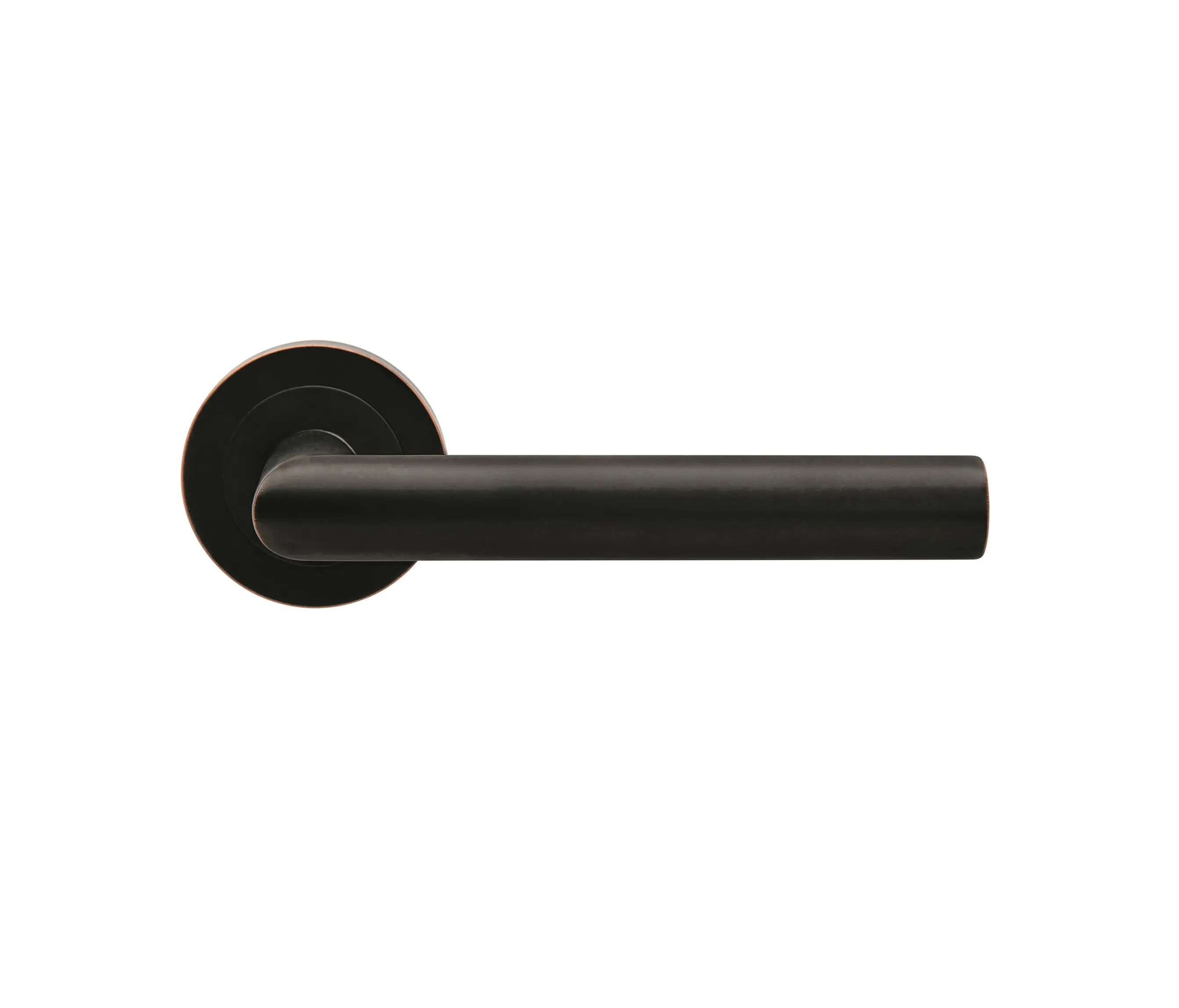

Rhodos ER28 (81)

Lever sets for standard doors acc. to DIN EN 1906, category of use 3

Lever version ER28 Rhodos

Lever sets for projects acc. to DIN EN 1906, category of use 4

Lever version ER/EN 28 Rhodos

Lever sets for projects acc. to DIN EN 1906, category of use 4

Lever version ERP28 Rhodos with ball bearing

by KARCHER DESIGN

Solid 3-piece fixing rose

and escutcheons squared, 52 x 10 mm or square shaped rose

with 7mm lugs and nylon floating bearing,

sprung loaded inner plate with attached lever

for version ERP with ball bearing

Heavy duty bolt through M4 fixings

8mm offset drilled spindle,

diameter of handle: 19 mm

diameter of handle ERP: 22mm

standard door thickness: 39- 47 mm

Options:

OS – without escutcheon

BB – supplied with lever key escutcheons

PZ – supplied with euro profile escutcheons

BAD – supplied with bathroom turn/release set

EN – supplied according to DIN EN 1906, category of use 4, OS, BB, PZ

FS – supplied as fire-resisting set

316 – V4A steel

ERP- supplied according to DIN EN 1906, category of use 4 with ball bearing

Finish: satin stainless steel (finish code 71)

Karcher article no.:

ER28 OS 71 – without escutcheon

ER28 OS316 71 – without escutcheon in 316 steel

ERP28 OS 71 – without escutcheon acc. to DIN EN 1906, category of use 4, with ball bearing

ER28 BB0 71 – supplied with lever key escutcheons

ER28 PZ0 71 – supplied with euro profile escutcheons

ER28 PZ316 71 – supplied with euro profile escutcheons in 316 steel

ER28 BAD 71 – supplied with bathroom turn/release set

ER/EN28 71 – supplied acc. to DIN EN 1906, category of use 4

ER/FS28 PZ0 71 – supplied as fire-resisting set

ER28Q OS 71 – without escutcheon with lever rose

ER28Q BB0 71 – supplied with square lever key escutcheons

ER28Q PZ0 71 – supplied with square euro profile escutcheons

ER28Q BAD 71 – supplied with square bathroom turn/release set

ER/EN28Q 71 – supplied acc. to DIN EN 1906, category of use 4, with square roses

ER/FS28Q PZ0 71 – supplied as fire-resisting set, with square roses

Finish: polished stainless steel (finish code 72)

Karcher article no.:

ER28 OS 72 – without escutcheon

ER28 OS316 72 – without escutcheon in 316 steel

ERP28 OS 72 – without escutcheon acc. to DIN EN 1906, category of use 4, with ball bearing

ER28 BB0 72 – supplied with lever key escutcheons

ER28 PZ0 72 – supplied with euro profile escutcheons

ER28 PZ316 72 – supplied with euro profile escutcheons in 316 steel

ER28 BAD 72 – supplied with bathroom turn/release set

ER/EN28 72 – supplied acc. to DIN EN 1906, category of use 4

ER/FS28 PZ0 72 – supplied as fire-resisting set

ER28Q OS 72 – without escutcheon with lever rose

ER28Q BB0 72 – supplied with square lever key escutcheons

ER28Q PZ0 72 – supplied with square euro profile escutcheons

ER28Q BAD 72 – supplied with square bathroom turn/release set

ER/EN28Q 72 – supplied acc. to DIN EN 1906, category of use 4, with square roses

ER/FS28Q PZ0 72 – supplied as fire-resisting set, with square roses

Finish: Oil Rubbed Bronze (finish code 81)

Karcher article no.:

ER28 OS 81 – without escutcheon

ER28 OS316 81 – without escutcheon in 316 steel

ERP28 OS 81 – without escutcheon acc. to DIN EN 1906, category of use 4, with ball bearing

ER28 BB0 81 – supplied with lever key escutcheons

ER28 PZ0 81 – supplied with euro profile escutcheons

ER28 PZ316 81 – supplied with euro profile escutcheons in 316 steel

ER28 BAD 81 – supplied with bathroom turn/release set

ER/FS28 PZ0 81 – supplied as fire-resisting set

ER28Q OS 81 – without escutcheon with lever rose

ER28Q BB0 81 – supplied with square lever key escutcheons

ER28Q PZ0 81 – supplied with square euro profile escutcheons

ER28Q BAD 81 – supplied with square bathroom turn/release set

ER/FS28Q PZ0 81 – supplied as fire-resisting set, with square roses

Finish: Cosmos Black (finish code 83)

Karcher article no.:

ER28 OS 83 – without escutcheon

ER28 OS316 83 – without escutcheon in 316 steel

ERP28 OS 83 – without escutcheon acc. to DIN EN 1906, category of use 4, with ball bearing

ER28 BB0 83 – supplied with lever key escutcheons

ER28 PZ0 83 – supplied with euro profile escutcheons

ER28 PZ316 83 – supplied with euro profile escutcheons in 316 steel

ER28 BAD 83 – supplied with bathroom turn/release set

ER/FS28 PZ0 83 – supplied as fire-resisting set

ER28Q OS 83 – without escutcheon with lever rose

ER28Q BB0 83 – supplied with square lever key escutcheons

ER28Q PZ0 83 – supplied with square euro profile escutcheons

ER28Q BAD 83 – supplied with square bathroom turn/release set

ER/FS28Q PZ0 83 – supplied as fire-resisting set, with square roses
