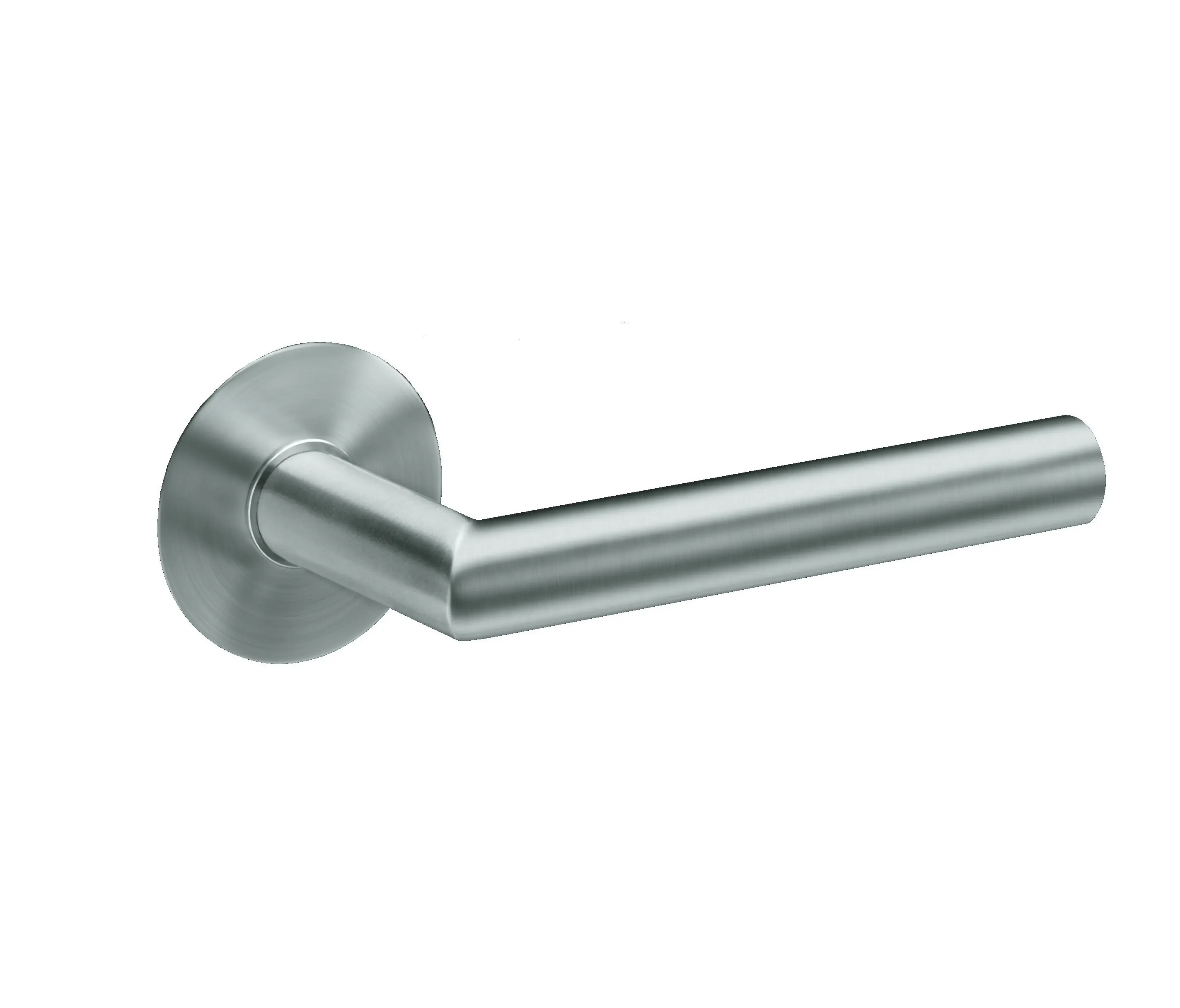

Rhodos EPL28 (71)

Lever sets for standard doors acc. to DIN EN 1906, category of use 3

Lever version EPL28 Rhodos

by KARCHER DESIGN

Clip rose

with 7mm lugs

thread in bushing

nylon floating bearing

unsprung

Heavy duty bolt through M5 fixings

8mm offset drilled spindle

Mounting versions: flush (Karcher milling template Z600GB) or surface mounting.

Door thickness: 40-50mm, depending on mounting and door version (rebated or flush)

For a flush mounting the leftover wood must be at least 4 mm.

Options:

OS – without escutcheon

BB – supplied with lever key escutcheons

PZ – supplied with euro profile escutcheons

BAD – supplied with bathroom turn/release set

Attention: Before mounting check length of profile cylinder

Finish: satin stainless steel (finish code 71)

Karcher article no.:

EPL28 OS 71 – without escutcheon

EPL28 BB0 71 – supplied with lever key escutcheons

EPL28 PZ0 71 – supplied with euro profile escutcheons

EPL28 BAD 71 – supplied with bathroom turn/release set

Finish: Oil Rubbed Bronze (finish code 81)

Karcher article no.:

EPL28 OS 81 – without escutcheon

EPL28 BB0 81 – supplied with lever key escutcheons

EPL28 PZ0 81 – supplied with euro profile escutcheons

EPL28 BAD 81 – supplied with bathroom turn/release set

Finish: Cosmos Black (finish code 83)

Karcher article no.:

EPL28 OS 83 – without escutcheon

EPL28 BB0 83 – supplied with lever key escutcheons

EPL28 PZ0 83 – supplied with euro profile escutcheons

EPL28 BAD 83 – supplied with bathroom turn/release set
