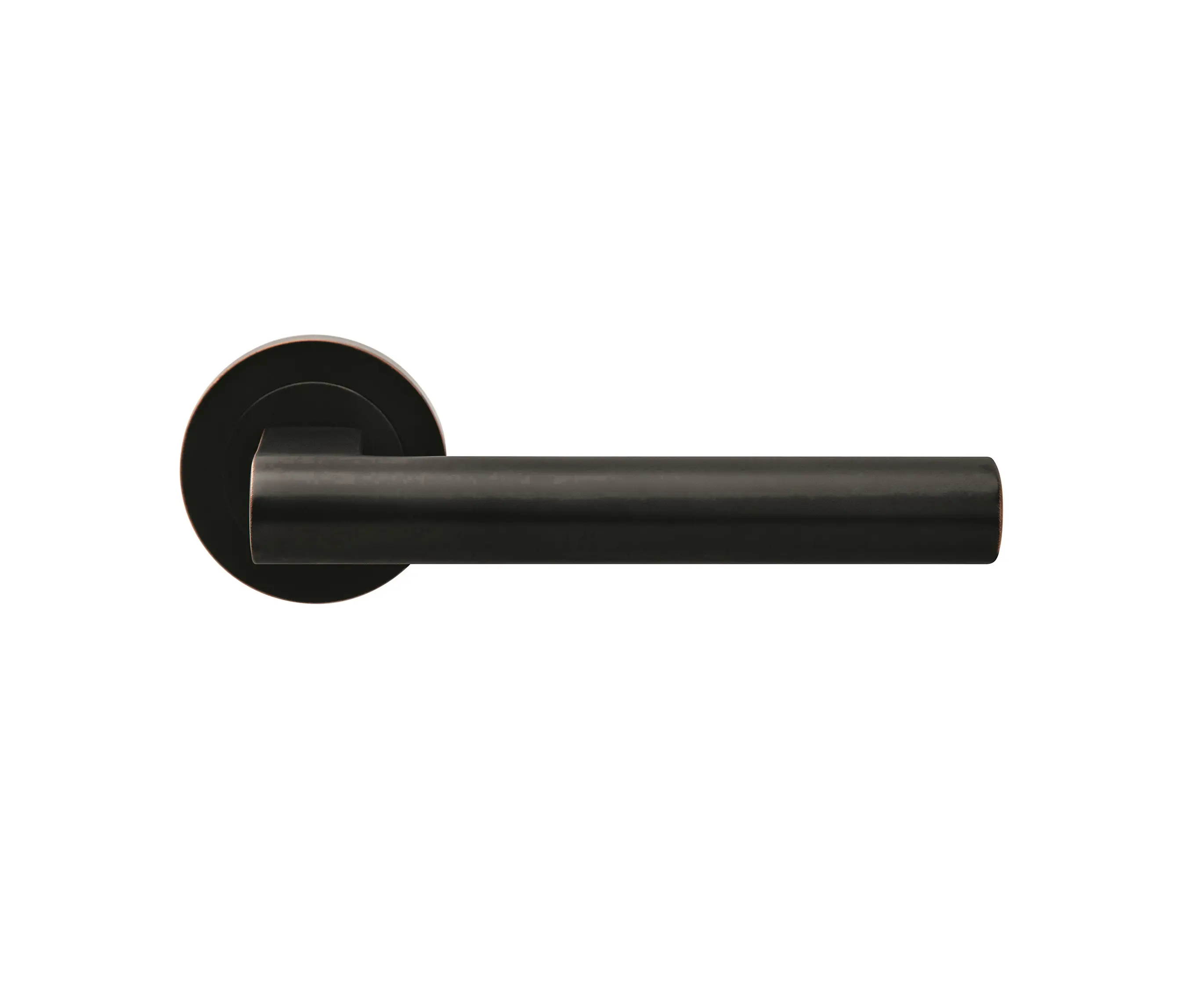

Madeira ER45 (81)

Lever sets for standard doors acc. to DIN EN 1906, category of use 3

Solid 3-piece fixing rose

and escutcheons squared, 52 x 10 mm,

with 7mm lugs and nylon floating bearing,

sprung loaded inner plate with attached lever

Heavy duty bolt through M4 fixings

8mm offset drilled spindle,

diameter of handle: 19 mm x 26mm

standard door thickness: 39- 47 mm

Options:

OS – without escutcheon

BB – supplied with lever key escutcheons

PZ – supplied with euro profile escutcheons

BAD – supplied with bathroom turn/release set

FS – supplied as fire-resisting set

Finish: satin stainless steel (finish code 71)

Karcher article no.:

ER45 OS 71 – without escutcheon

ER45 BB0 71 – supplied with lever key escutcheons

ER45 PZ0 71 – supplied with euro profile escutcheons

ER45 BAD 71 – supplied with bathroom turn/release set

ER45Q OS 71 – without escutcheon with lever rose

ER45Q BB0 71 – supplied with square lever key escutcheons

ER45Q PZ0 71 – supplied with square euro profile escutcheons

ER45Q BAD 71 – supplied with square bathroom turn/release set

ER/FS45Q PZ0 71 – supplied as fire-resisting set, with square roses
