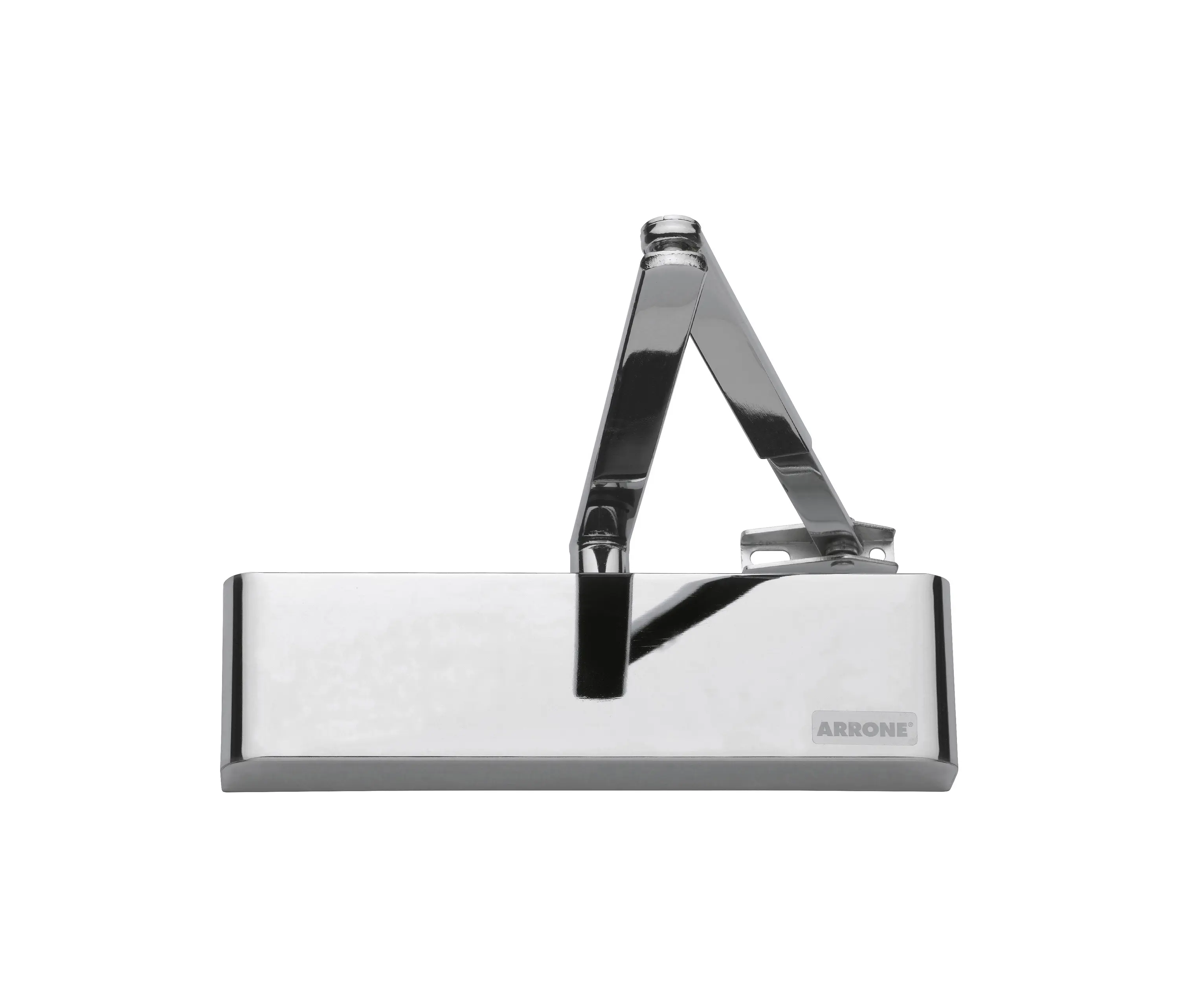

AR8500 Door Closer

AR8500 HOPPE-ARRONE door closing device:

Power size: 2 to 4 adjustable by template

Adjustable functions: Closing speed, latching

Cover: Slide cover

Maximum door width: 1,100 mm (Fig 1 and Fig 61), 950 mm (Fig 6)

Maximum door weight: 80 kg (Fig 1 and Fig 61), 60 kg (Fig 6 )

Arm application: Fig 1, Fig 6 and Fig 61 fixing positions

Successfully type tested for conformity to all the requirements of BS EN 1154:1997

Door mount pull (Fig 1), transom mount push (Fig 61):

3 | 8 | 4/2 | 1* | 1 | 3

Door mount push (Fig 6): 3 | 8 | 3 | 1* | 1 | 3

Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minute timber fire doors and 240 minute insulated steel fire doors.

Certifire Approved: CF295; DoP: HUK0020

CE Marked

Product References:

AR8500-L-SSS/SSS-A2 door closer in satin stainless steel in Grade 304 cover

AR8500-L-SSS/SSS-A4 door closer in satin stainless steel in Grade 316 cover

AR8500-L-SE/SE door closer in silver finish

AR8500-L-PB/PB door closer in polished brass

AR8500-L-SNP/SNP door closer in satin nickel plate

AR8500-L-ABR/ABR door closer in antique brass

AR8500-L-PCH/PCH door closer in polished chrome effect

With Hold Open Arm:

AR8500-L-HOA-PCH/PCH door closer with hold open arm in polished chrome
