AR450 Door Closer

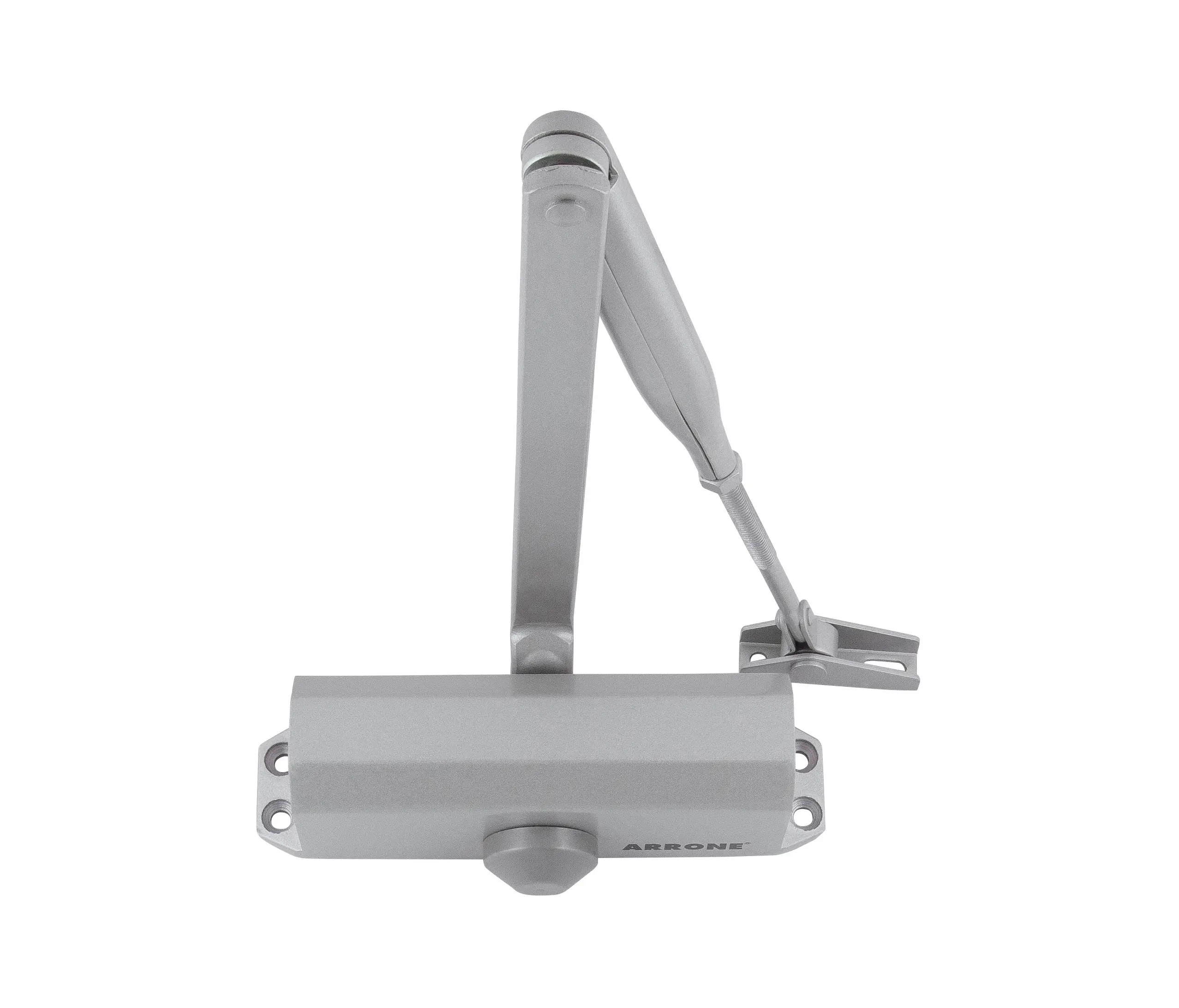

AR450 HOPPE-ARRONE door closing device:

Fixed power size 3

Adjustable functions: Closing speed, latching

Cover: no cover

Maximum door width: 950 mm

Maximum door weight: 60 kg

Arm application: Fig 1, Fig 6 (bracket available separately) and Fig 61 fixing positions

Successfully type tested for conformity to all the requirements of BS EN 1154:1997

Included in a successful fire test to BS EN 1634 Part 1. Assessed for use on 30, 60 and 120 minutes timber fire doors.

Door mount pull (Fig 1), transom mount push (Fig 6):

4 | 8 | 3 | 1* | 1 | 3

Door mount push (Fig 6): 3 | 8 | 3 | 1* | 1 | 3

Certifire Approved: CF5629; DoP: HUK0018

CE Marked

Product References:

AR450-SEdoor closer in silver finish

AR450-GE door closer in gold finish

AR450-WH door closer in white finish

AR450-BLK door closer in black finish

AR450-BR door closer in brown finish

AR450-BE door closer in beige finish
