Handle or rail | 550.33BLT
- Home/Piastre spinta porta/
Handle or rail | 550.33BLT
Informazioni su questo prodotto
Architonic ID: 20025546
SKU: 550.33BLT
Anno di Lancio: 2019

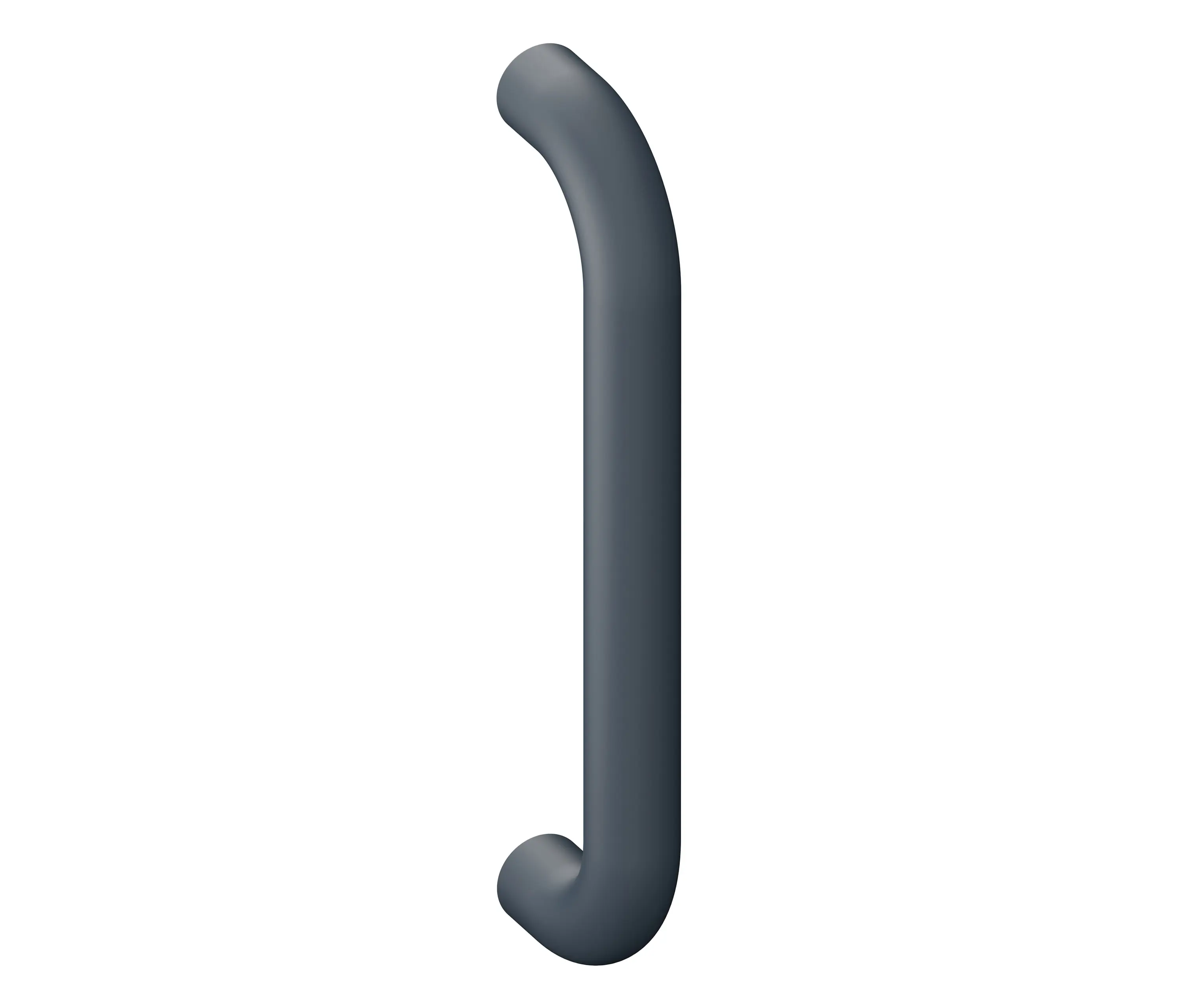

Pull handle
System 111 made of solid coloured high-quality matt polyamide, diameter 33 mm, with continuous, corrosion-proof steel insert, for one-sided and paired fixing on glass, wooden, PVC and metal doors (aluminium: 1 to 3 chamber, steel: 1 chamber profiles),
Load bearing capacity under alternating load 100 kg on wooden and metal doors, 50 kg on PVC doors, with 2 fixing points, fixing outside the lock area or within the lock area, as well as fixing through the lock. Straight handle in a curved shape, with straight supports, for mounting on full leaf doors, in conjunction with BA5.0 for framed doors, fulfils the handle requirements of the guidelines of the German Federal Association of Accident Insurance Funds (Bundesverband der Unfallkassen e. V.- BUK)- safe distance from the closing edge 25 mm. Centre-to-centre 300 mm
Article no.: HEWI 550.33BLT
Concetto
HEWI System 111 is the classic lever handle- reduced in form, precise in function and closely linked to the Bauhaus principles. The style is puristic and timeless and can be used in a wide variety of architectural contexts- as a lever handle as well as a window handle. System 111 is available in three versions: in high gloss polyamide, in the Matt edition with a characteristic finish and in satin surface finished stainless steel. Each variant accentuates the clear design in its own way- with coloured accents or reduced materials.
Questo prodotto appartiene alla collezione:
Specifiche del prodotto
Usage
Interni
