Door lever fitting | 162PCM06.230

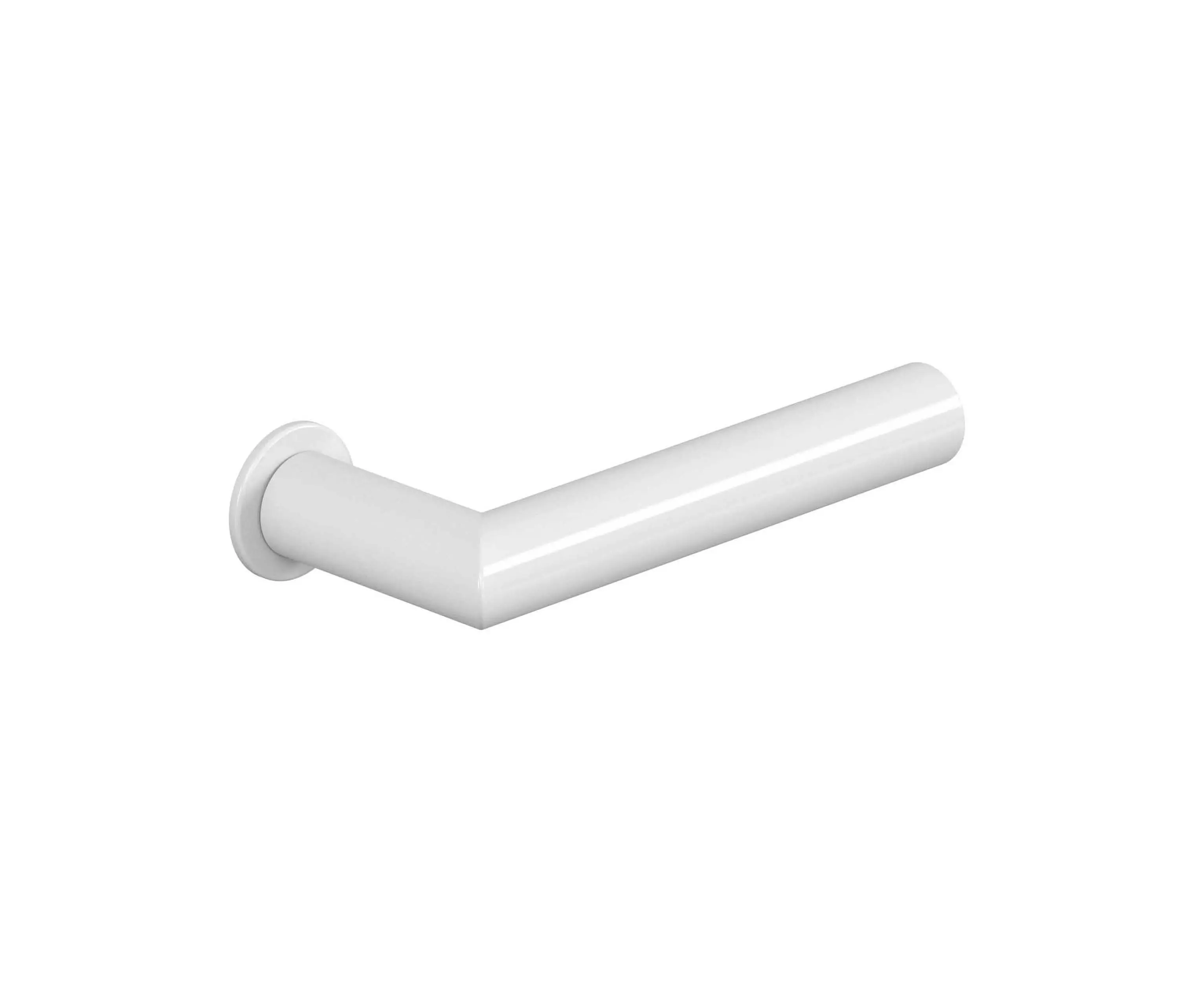

Lever handle fitting

with flat rose, cap made of polyamide, diameter 32 mm, consisting of:

Lever handle design 162.21PCM, mitred, made of polyamide with continuous steel core up to the end of the lever handle, through-dyed, diameter 21.3 mm, with shank guide. Square spindle of the male part of the lever handle 8 mm with trapezoidal thread.

Fixing of the lever handle in a press-in bearing with all-round teeth and a polyamide plain bearing bush with two lugs as anti-rotation elements in the press-in bearing. The grubscrew M5 is fixed, as additional securing of the female parts of the lever handle, in a recess in the square spindle and thus helps to achieve optimum force transfer into the door leaf. Use in conjunction with mortise locks to DIN 18251. Installation of the press-in bushes by means of a mounting nut with trapezoidal thread, AF 19. We recommend installation using an open-ended spanner, AF 19. The cut size (hole dimension) in the area of the lock follower must have nominal size 25 mm. Production tolerances of +/- 1 mm can be levelled out by the press-in bearing. We recommend mounting on residential and internal doors with HDF facing and middle layers (core) made of hollow (tubular) core particleboard or solid particleboard or higher-quality, with both non-rebated and rebated finish. We recommend installation of the mini solely on door elements tested by HEWI and the door manufacturers. A current list of the tested door elements can be found on our website: www.hewi.de/mini. Fittings with mini roses are not suitable for use on door elements with fire protection, smoke control, burglary resistance, wet room or radiation protection functions.

Designed and tested for the projects segment, user category to EN 1906- Class 3

Durability: Class 7

Door weight: No classification specified

Fire resistance: Class 0

Safety: Class 0

Corrosion resistance: Class 4

Security: Class 0

Design-type: U

Article no.: HEWI 162PCM06.230
