Facades | E85

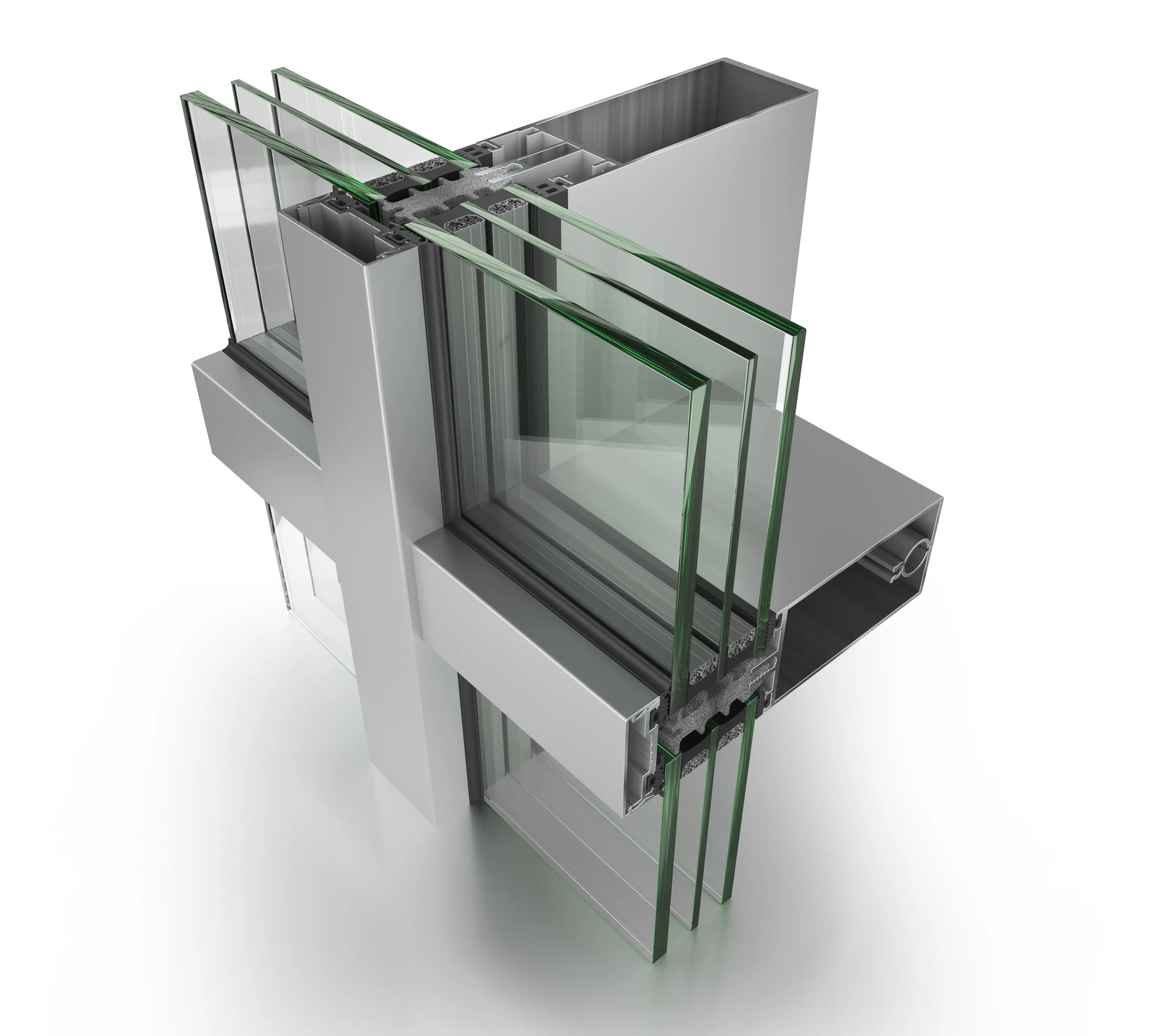

E85 is a 50mm curtain walling system, capable to offer a wide variety of solutions. It provides:

- stick or bonded glazed (widely known as structurally glazed) options;

- accommodation to all typical infill thicknesses (single, double, triple glazing and panels);

- solutions to sloped constructions;

- integration with projected constructions, such as external shading;

- burglar / bullet resistance;

- wide range of project profiles for custom applications;

- incorporation of ETEM systems as infills.

System basic width: 50mm- 60mm

Min./max. system basic depth: 50mm / 230mm

Glazing infill range: 24 ÷ 42 mm

Max. weight: 1.000kg

Inertia mullions (Ix: wind load): up to 2.162cm4

Inertia transoms (Ix: wind load): up to 399cm4

Inertia transoms (Iy: glass load): up to 43cm4

Uf ≥ 1,6 W/(m2K)
