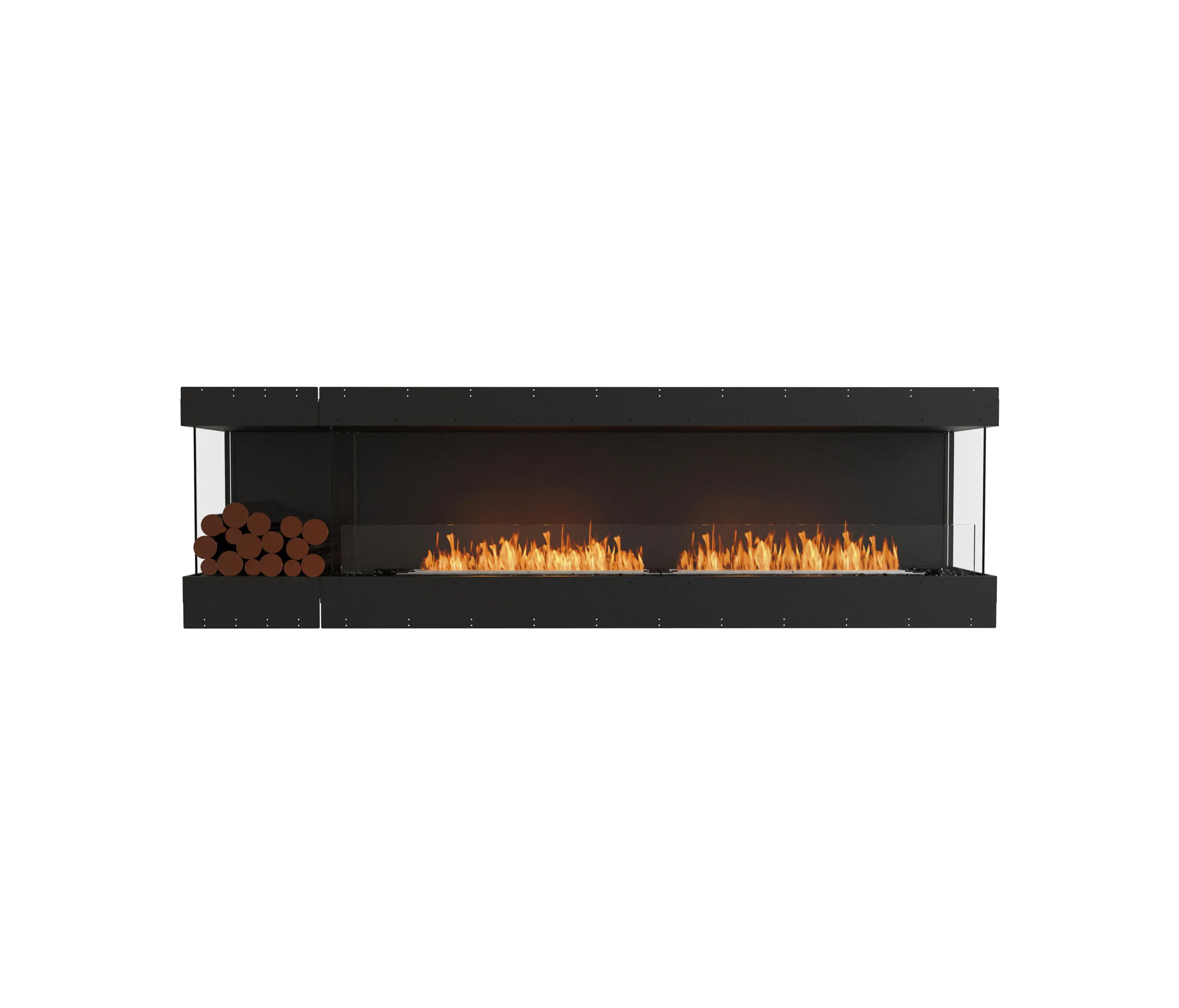

Flex 104BY.BXL

The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points.

The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed.

The Flex 104BY.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL900 burners. With an overall heating capacity of 120m2 this appliance is best suited to large open spaces- think hotel lobby, large open plan restaurants.

Each burner holds 9L of fuel, and can deliver a stunning flame for up to 13 hours.

MATERIALS

Mild Steel & Toughened Glass

FUEL

Bioethanol

WEIGHT

146kg [321lb]

MODEL DIMENSIONS mm [in]

W 2733 [108]

D 365 [14.4]

H 807 [31.8]

VIEWING AREA mm [in]

W 2645 [104]

D 340 [13.4]

H 502 [19.8]

INCLUDED BURNER

XL900 [x2]

CAPACITY

18 Litres [4.8 Gallons]

HEATS ON AVERAGE

120m2 [1292ft2]

MINIMUM ROOM

220m3 [7769ft3]

BURN TIME

8-13 Hours

THERMAL OUTPUT

32 MJ/h- 30000 BTU/hr- 8.8 kW/h
