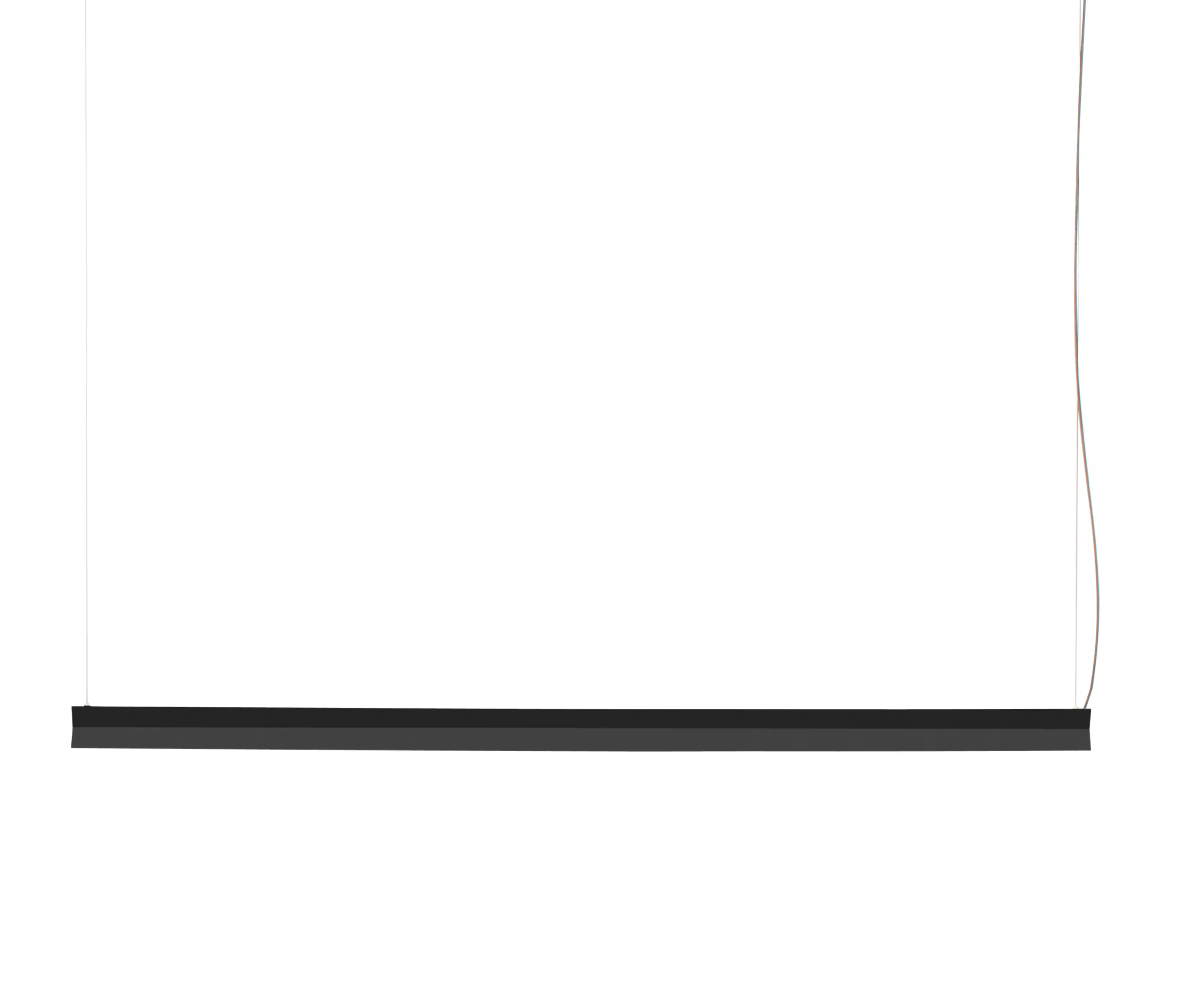

Span

Simplicity is the allure and strength of the SPAN pendant light. Balanced from two suspension points, the wings of the X-shaped light efficiently direct light to the table top as well as producing subtle ambient light for the ceiling, avoiding any glare. MATERIAL / FINISH

Aluminium, powder-coated

COLOURS

Signal white, jet black

DIMENSIONS

Length, Width, Height

1200 mm (47 1/4 inch), 57 mm (2 1/4 inch), 80 mm (3 1/8 inch)

1600 mm (63 inch), 57 mm (2 1/4 inch), 80 mm (3 1/8 inch)

2000 mm (78 3/4 inch), 57 mm (2 1/4 inch), 80 mm (3 1/8 inch)

2400 mm (94 1/2 inch), 57 mm (2 1/4 inch), 80 mm (3 1/8 inch)

3000 mm (118 1/8 inch), 57 mm (2 1/4 inch), 80 mm (3 1/8 inch)

Installation site: Interior

Installation type: Exposed fitting

Enclosure material: Aluminium, powder-coated

In accordance with DIN 40050: IP20

Appliance class: 2

Weight: 1,8 kg; 2,2 kg; 2,7 kg; 3,3 kg; 4,1 kg

Diffuser: Yes

Light distribution: Direct downwards and upwards

Voltage supply: EU/UK 230V/50Hz, US 120V/60Hz

ECG: 24 V

Switch, Dimmer: no switch, dimmable through external

wall-mounted switch

Cabel: PVC, length 3000 mm

Colour of cable: White; black to match light

Light source: LED permanently fitted

Power: 17,3 W; 23 W; 28,8 W; 35 W; 43 W

Luminous flux: 1957 lm; 2609 lm; 3261 lm; 3913 lm; 4892 lm

Light intensity: 1298 lx/m

Colour temperature: 3000 K, warm white

Colour rendering index CRI: 85 Ra (if colour Signal White)

Energy efficiency index: A+
