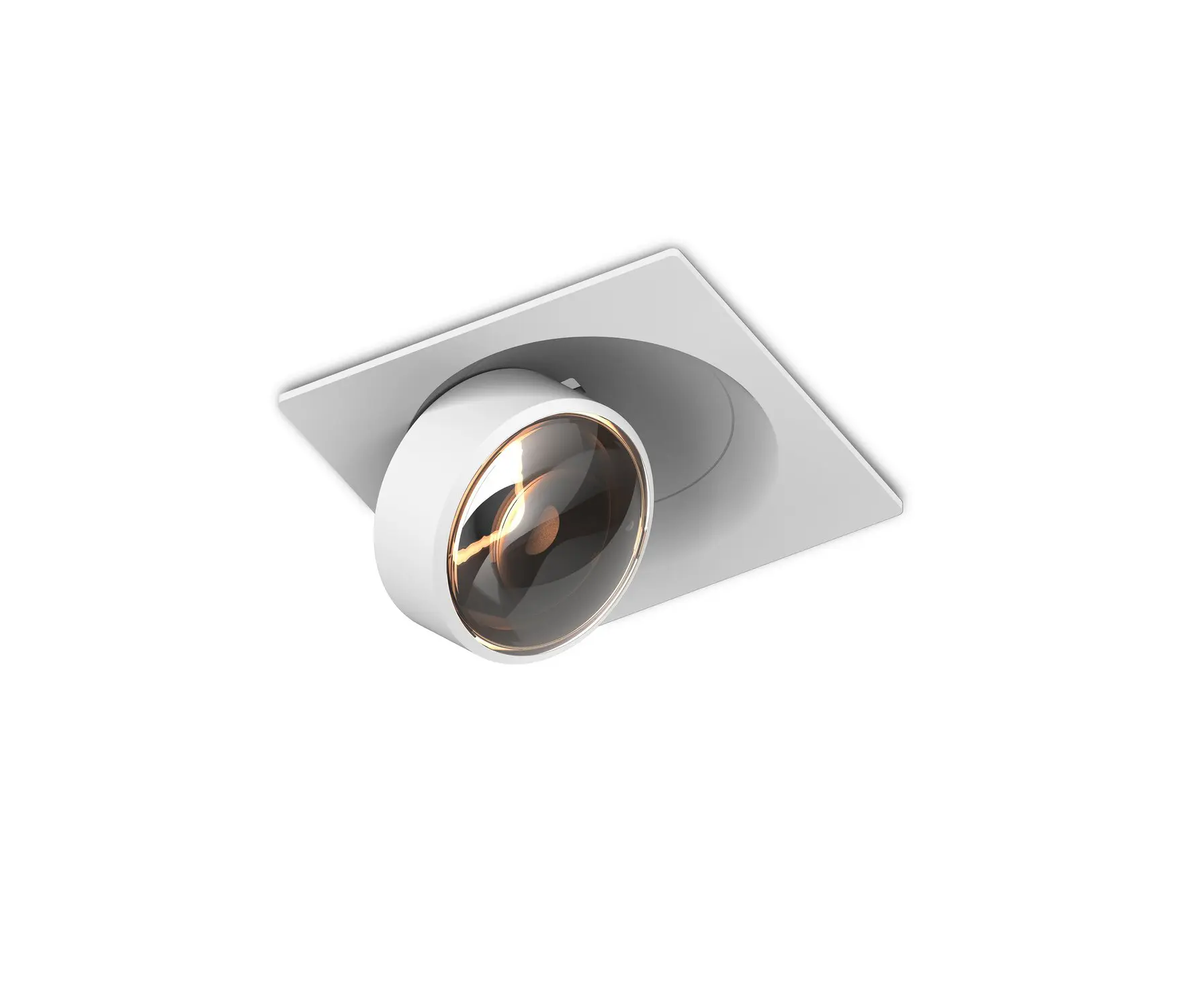

c.Flap recessed P WW 50° soft beam | Satin White/Satin White

Product description

Creative lighting tool: With the c.Flap recessed Q recessed light, the lamp head can be moved sideways out of the square cover along its spherical back. This allows you to swivel the light up to 40 degrees and rotate it up to 360 degrees. You determine the appropriate beam angle by choosing the lens, depending on your needs as a soft beam lens or as a sharp con lens. If necessary, the lens can be changed. This means you get a variable and powerful light whose glare-free light meets the highest demands. This is ensured not least by the very good color rendering index (CRI) of over 92. Thanks to its straightforward design, the lamp does not push itself into the foreground, but rather lets the light speak for itself. You can control the dimmable light using the Wiz app, voice assistant, wall button and WiFi module or multi-control panel.

Please note: The c.Flap recessed Wiz Wifi driver and the 48-volt power supply are also required for operation. The number required depends on how many c.Flap recessed you want to operate (a maximum of two lights per driver and a maximum of two drivers per power supply).

Technical details

Material: zinc die-cast, surface soft touch lacquer

Current: 450mA

Surface: Satin White/Satin White

Alignability: 40° swivel and 360° rotatable

Protection class: IP 20

Protection class: III

Details: Depending on the quantity selected, one or more c.Flap recessed Wiz Wifi drivers (max. two lights per driver) and one or more 48 V power supplies (max. two drivers/four lights per power pack) are also required (see connection instructions). Diagram).

Operating device: LED driver required

Energy efficiency class: The product contains a light source with energy efficiency class F.

Installation dimensions: D: 5 cm, Ø: 15.5 cm

Scope of delivery: including LED module

Dimensions: L: 16.5 cm, W: 16.5 cm, (head) H: 8 cm, (head) Ø: 10 cm

Control: Control via Wiz app, voice control via voice assistant, control via wall button and Wifi module, control via Wiz Wifi multi-control panel

Dimmability: Dimmable

Luminous flux: 873 lm

Color temperature: warm white extra 2700 K

Color rendering index: 92.5

Voltage: 33V

Maximum configuration: 15W LED

Test mark: CE

Light distribution: Directed spot

Luminous intensity: 1113 cd
