Large M13Z-146

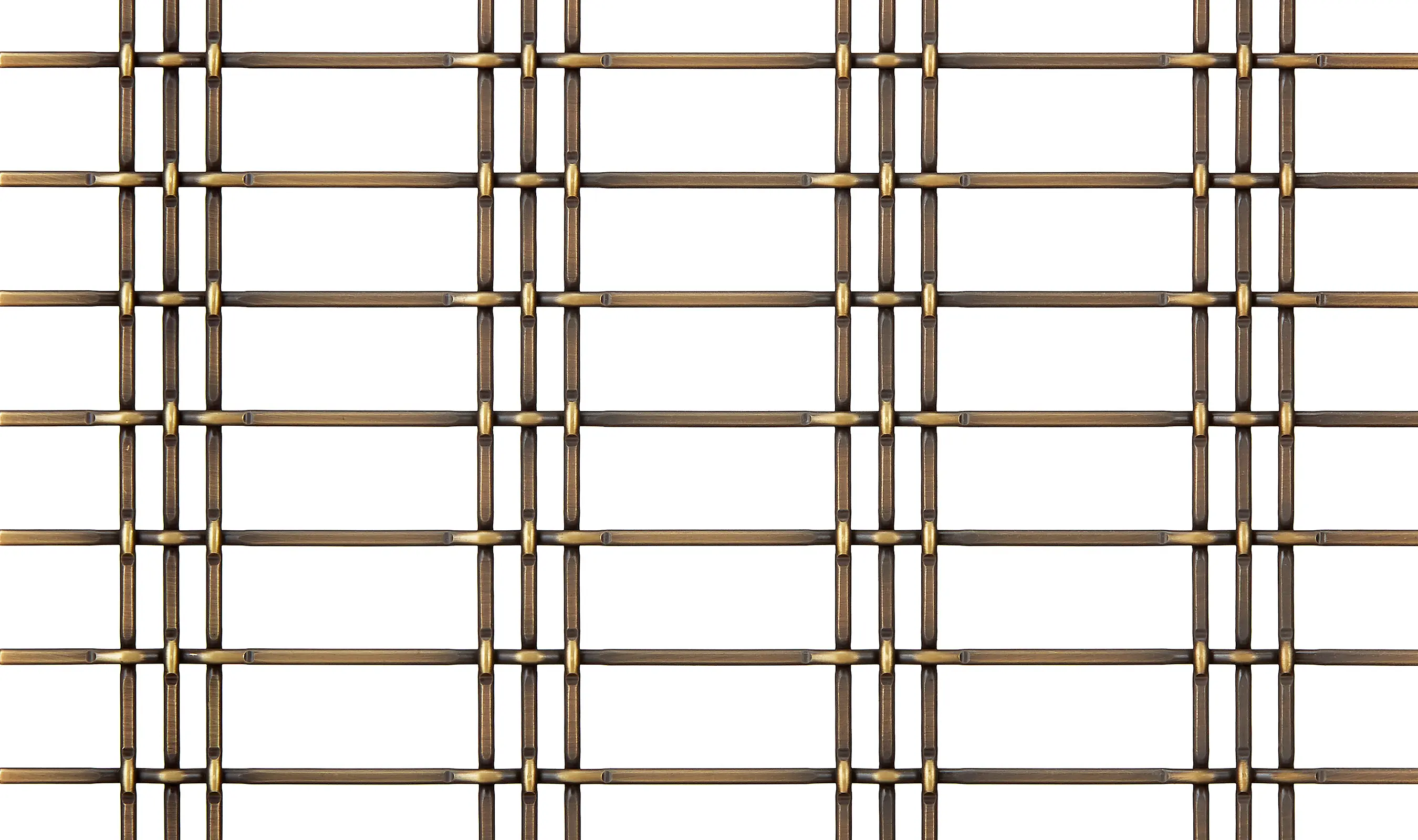

The Banker Wire M13Z-146 is an economical architectural wire mesh pattern. The all purpose medium duty triple shute pattern available in all wire alloy types. The traditional straight warp wires of the triple shute weave are intersected by 3 Lock crimp triple wires. The Lock crimp wires are not typically seen in a triple shute pattern which makes the M13Z-146 a unique wire mesh construction.

PATTERN DETAILS

PERCENT OPEN:74.8%

OVERALL THICKNESS:0.338

CRIMP STYLE:TSLCZ

ASPECT RATIO:3.00:1

OPENING LIMITATION:0.870

WEIGHT:1.23 lbs./sq. ft.
