Microsurf Wall
Architonic ID: 20753265
Anno di Lancio: 1998

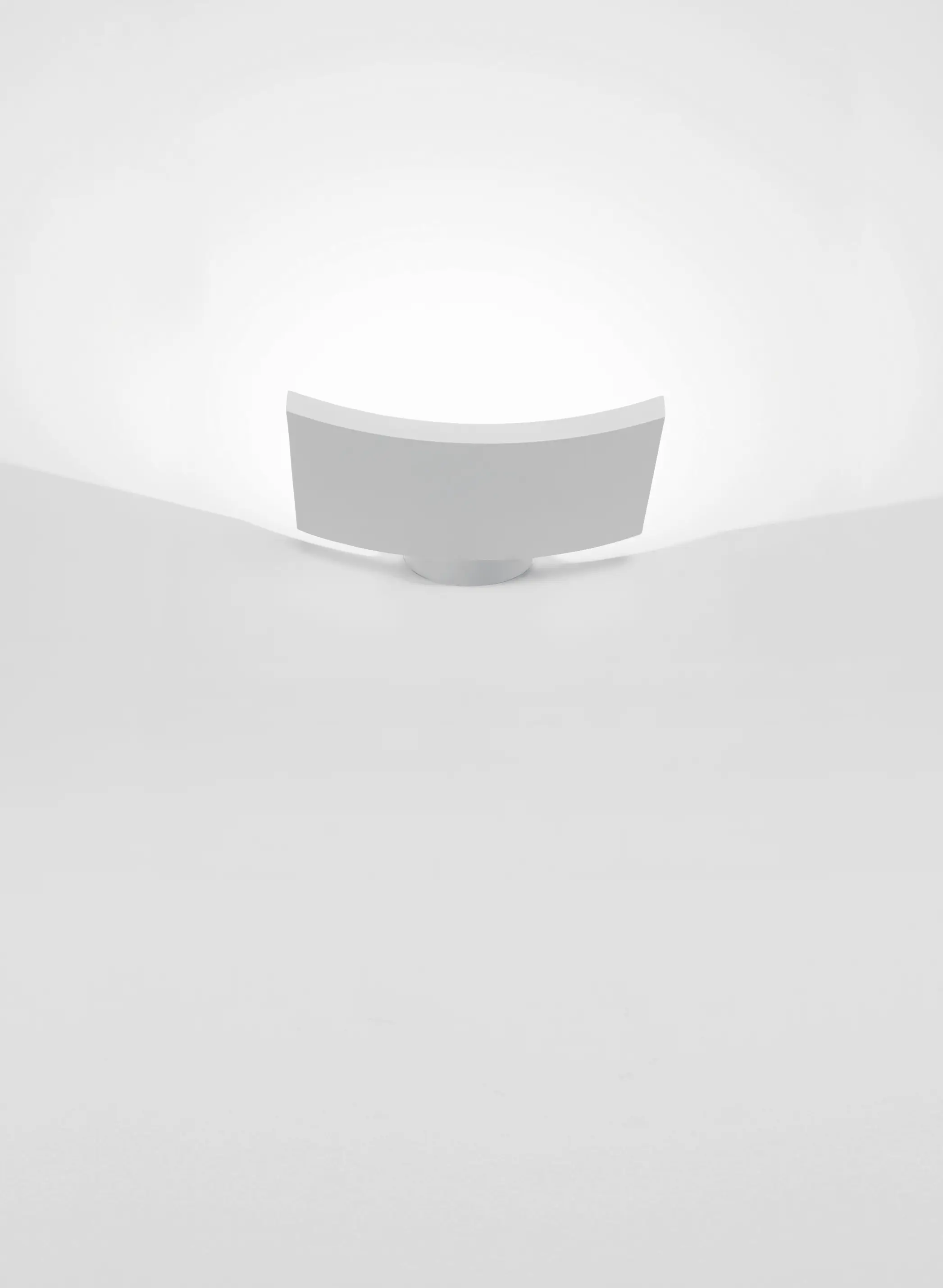

Wall luminaire with indirect light emission. High-power LEDs
Light storm 1826l,
Material: aluminium body, white lacquered.
Watt: 20 Watt
Dimension: 22cm x 15cm x 4 cm
Concetto
Surf System
• modular system for indirect lighting using 2x14w to 2x80w t16 fluorescent lamps.
• extruded aluminium body with a white or grey paint finish.
• can be installed as a pendant or wall light.
• continuous linear mounting or with 90° connectors, 3 and 4 ways connectors.
• light output ratio: 72%.
• electronic ballast, or dali-switchdim dimmable electronic ballast, or interactive-dali system combining a movement detector and a daylight sensor for auto-regulation in relation to people presence and variations in daylight. emergency lighting as an optional extra.
• dust protection cover made of extruded polycarbonate.
• quick adjustment steel suspension cables.
• complies with standard en60598-1 and other specific standards.
Surf Wall
• a range of wall lamps with indirect lighting, using 300w halogen, 150w metal-halide and 1x18w, 2x36w and 2x55w tc-lel fluorescent lamps.
• aluminium body with white or grey paint finish.
• 3 size options: 174x300mm, 290x460mm and 290x600mm.
• electronic ballast.
• protective glass (for halogen and metal-halide versions) or polycarbonate dust-protection screen (for 2x36-55w tc-lel versions).
• complies with standard en60598-1 and other specific standards.
Minisurf Wall
• a range of wall lamps with indirect lighting, using 150w halogen and 24w t16 fluorescent lamps.
• aluminium body with white or grey paint finish.
• 2 size options: 150x340mm and 170x766mm.
• integral electronic ballast.
• fluorescent version comes with punchings and coloured filters (blue, orange and opaque white) for a decorative direct lighting effect.
• complies with standard en60598-1 and other specific standards.
Questo prodotto appartiene alla collezione:
Alluminio, Metallo
