W1U
Informazioni su questo prodotto
Architonic ID: 20259337
Anno di Lancio: 2013
Description
ADA compliant high efficiency LED decorative wall mounted luminaire with machined aluminum housing and clear acrylic TIR light control lens. Canopy and mounting plate provided mounts over 4″ octagonal j-box (by others).
Lamping
Single 2 watt LED, 150 lumens, 90 CRI, 2700K (warm white color temperature).
Optional 3000K, 3500K color temperatures available
Metal finish
Clear anodized aluminum (Standard Finish)
Black, Champagne, Gold anodized finishes available
Light Distribution Optics
Clear lens with diffuse optics
Clear lens with concentric optics (Optional)
Satin finish with diffuse optics (Optional)
Electrical
Constant current class 2 driver (0-10V dimmable), 120/277V 50/60Hz, 700mA (sold separately). See D8_700 remote driver spec sheet for details.
Approvals
Approved to UL safety standards.
Concetto
Dimmable LED single wall sconce

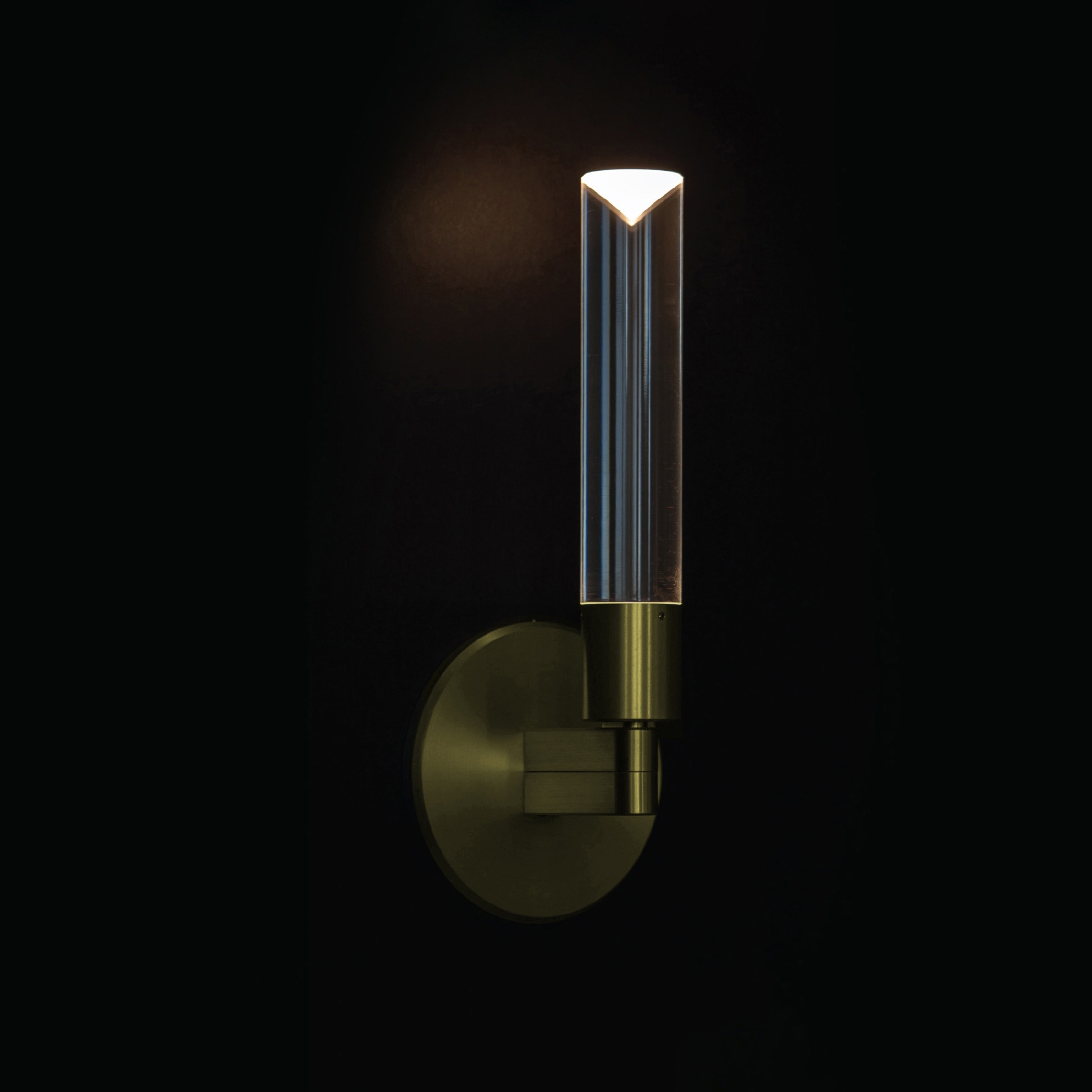

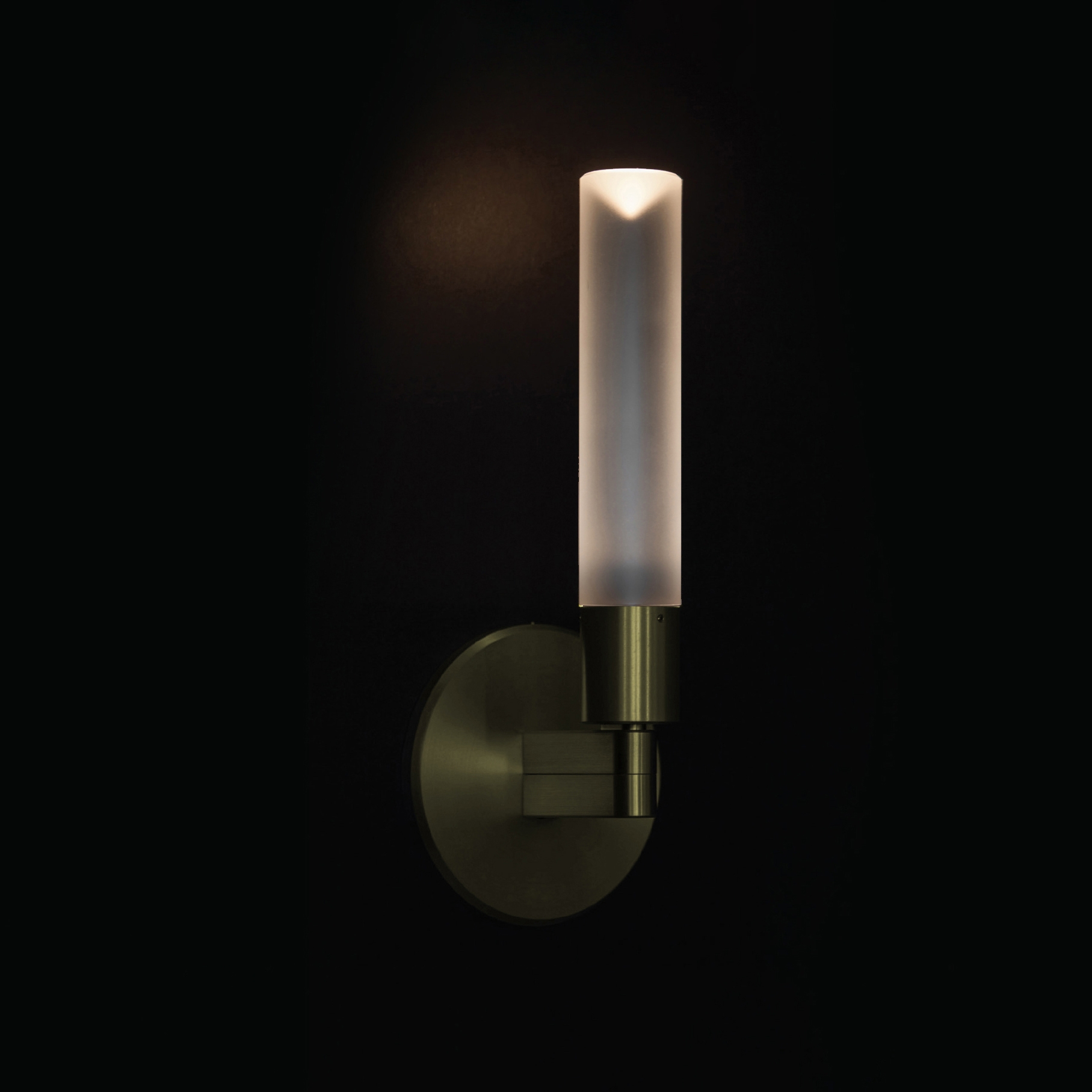

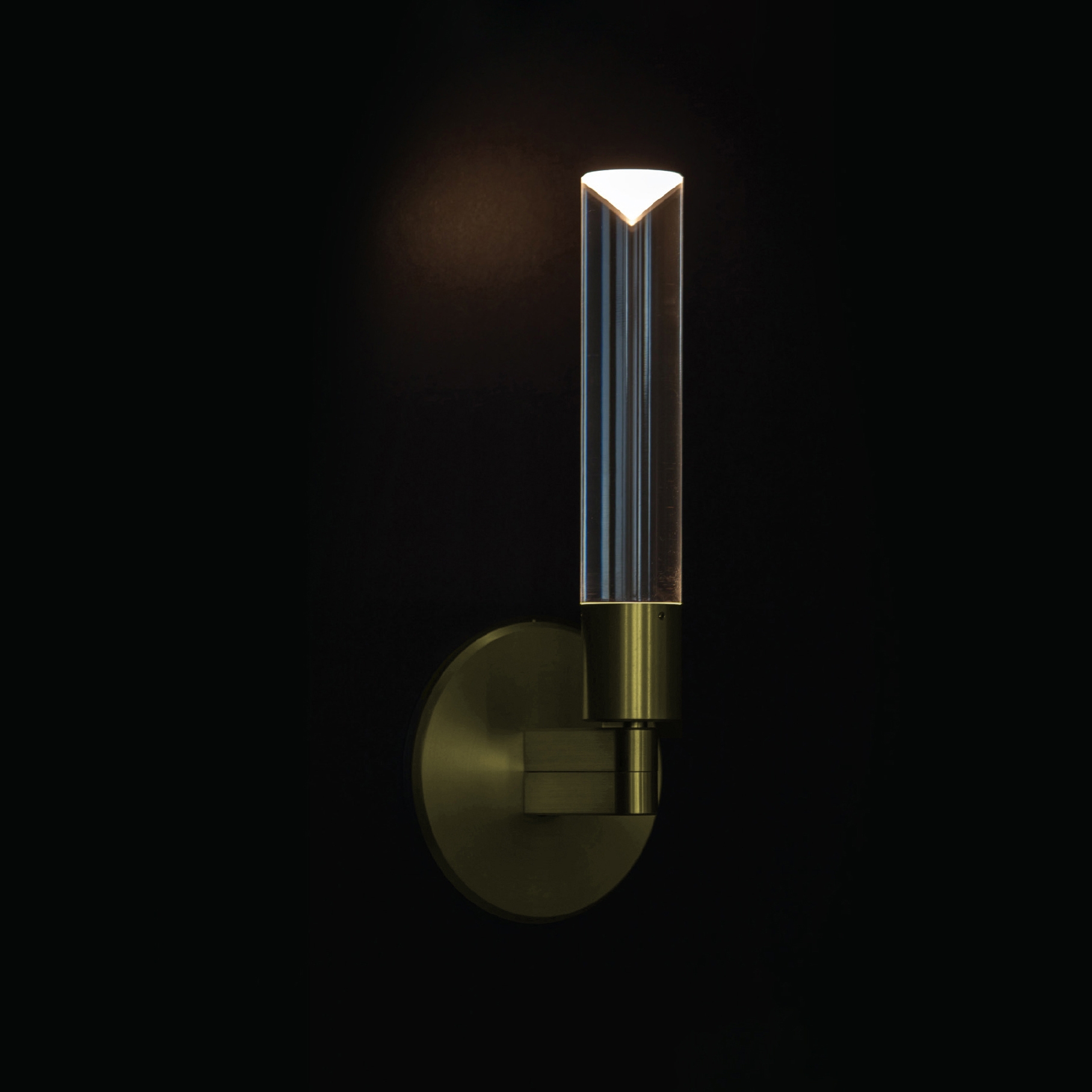

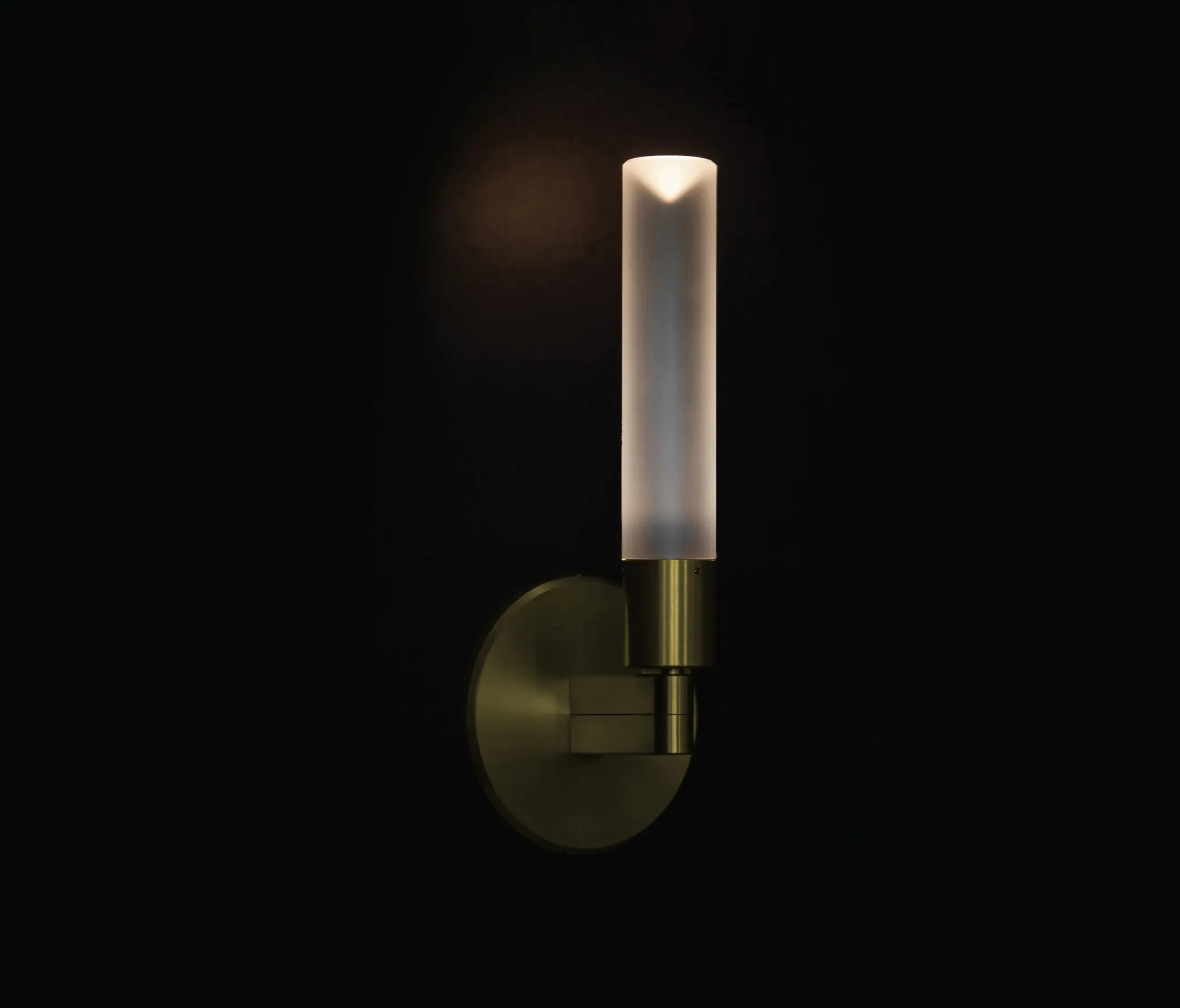

Elegantly minimal, this single upward configuration dimmable LED wall mounted luminaire creates flattering highlights. Signature clear light control lenses diffuse light in concentric rings, evoking ripples on water. Dazzling highlights are sure to please with this design classic. The Archilume W1U is ADA compliant.
Questo prodotto appartiene alla collezione:
Specifiche del prodotto
Material
Acrilico, Alluminio, Metallo, Plastica
