P8L

Description

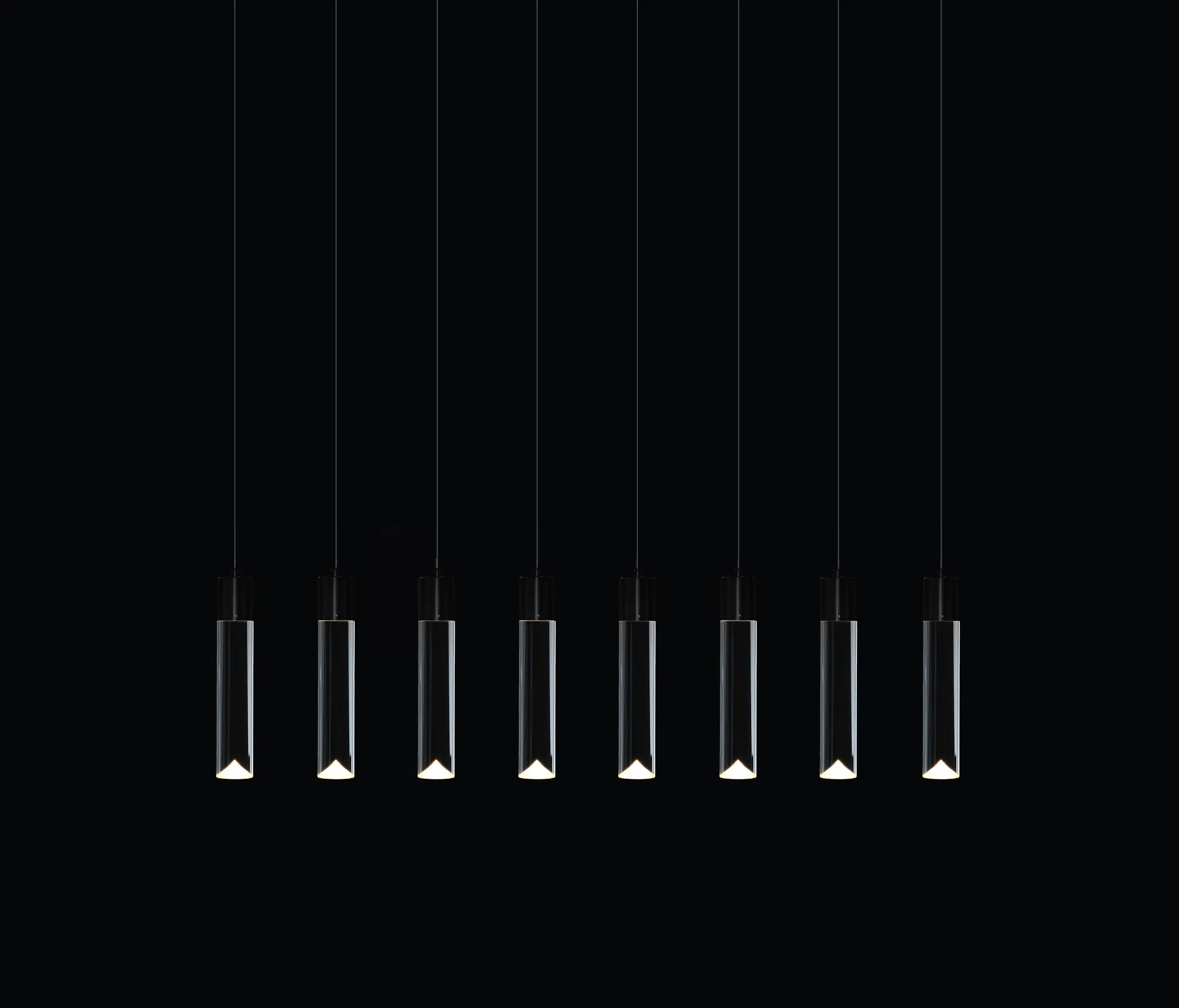

High efficiency LED decorative eight pendant luminaire with machined aluminum housing and clear acrylic TIR light control lens. Canopy and mounting plate provided mounts over 4″ octagonal j-box (by others).

Lamping

Single 2 watt LED, 150 lumens, 90 CRI, 2700K (warm white color temperature).

Optional 3000K, 3500K color temperatures available

Cable Length

120″(3048mm) suspension cable provided standard. Field adjustable.

Metal finish

Clear anodized aluminum (Standard Finish)

Black, Champagne, Gold anodized finishes available

Light Distribution Optics

Clear lens with diffuse optics

Clear lens with concentric optics (Optional)

Satin finish with diffuse optics (Optional)

Electrical

Constant current class 2 driver (0-10V dimmable), 120/277V 50/60Hz, 700mA (sold separately). See D8_700 remote driver spec sheet for details.

Approvals

Approved to UL safety standards.
