Nara 3002

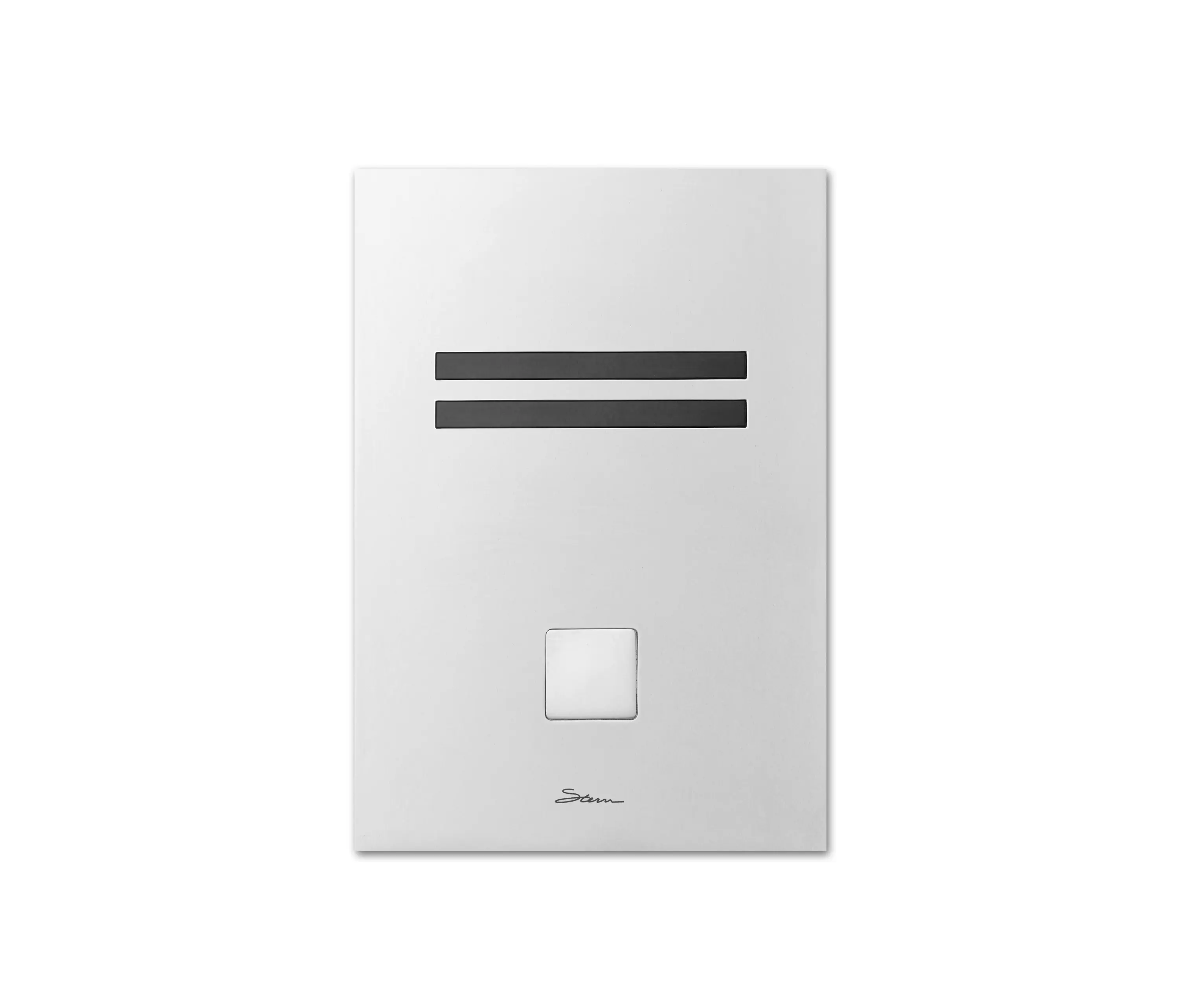

Touch free electronic flush valve for water closet. Solid brass valve body with PVD plated 10” x 7” metal panel. Automatic infrared sensor activated by self-adjusting detection range, includes a 6 second delay-in time to avoid unwanted flushing. Features a manual or piezo override push button anti-block feature. Concealed flush valve with 1” angle stop and 1.5” vacuum breaker set. Includes an adjustable tail piece connection and self-cleaning piston mechanism complete with debris screen and solenoid valve. Powered by 9V battery or 9V transformer. Flushing duration and other settings adjustable by remote control. ADA Compliant. Standard: ASSE 1037-1990 and CSA B125.3-2012.

Technical Data:

• Concealed flush valve with 1” angle stop and 1.5” vacuum breaker set

• Recommended Pressure, 0.1-8.0 bar / 14.50-116 PSI

• Power Supply, 9V Battery or 9V transformer

• Panel, PVD plated 10” x 7” metal panel

• Connection, Spud coupling and flange for top or rear spud connection

• Automatic Hygiene Flush, Optional feature after 24 hours of inactivity

• Piston valve, Self-cleaning with 360°filter screen

• Override Feature, Manual button or Piezo touch with anti-block feature

Ref number: 160810 (Battery), 160820 (Transformer)
