BTM Faucet
À propos de ce produit
Architonic ID: 1385599
SKU: 280300
Année de Lancement: 2015

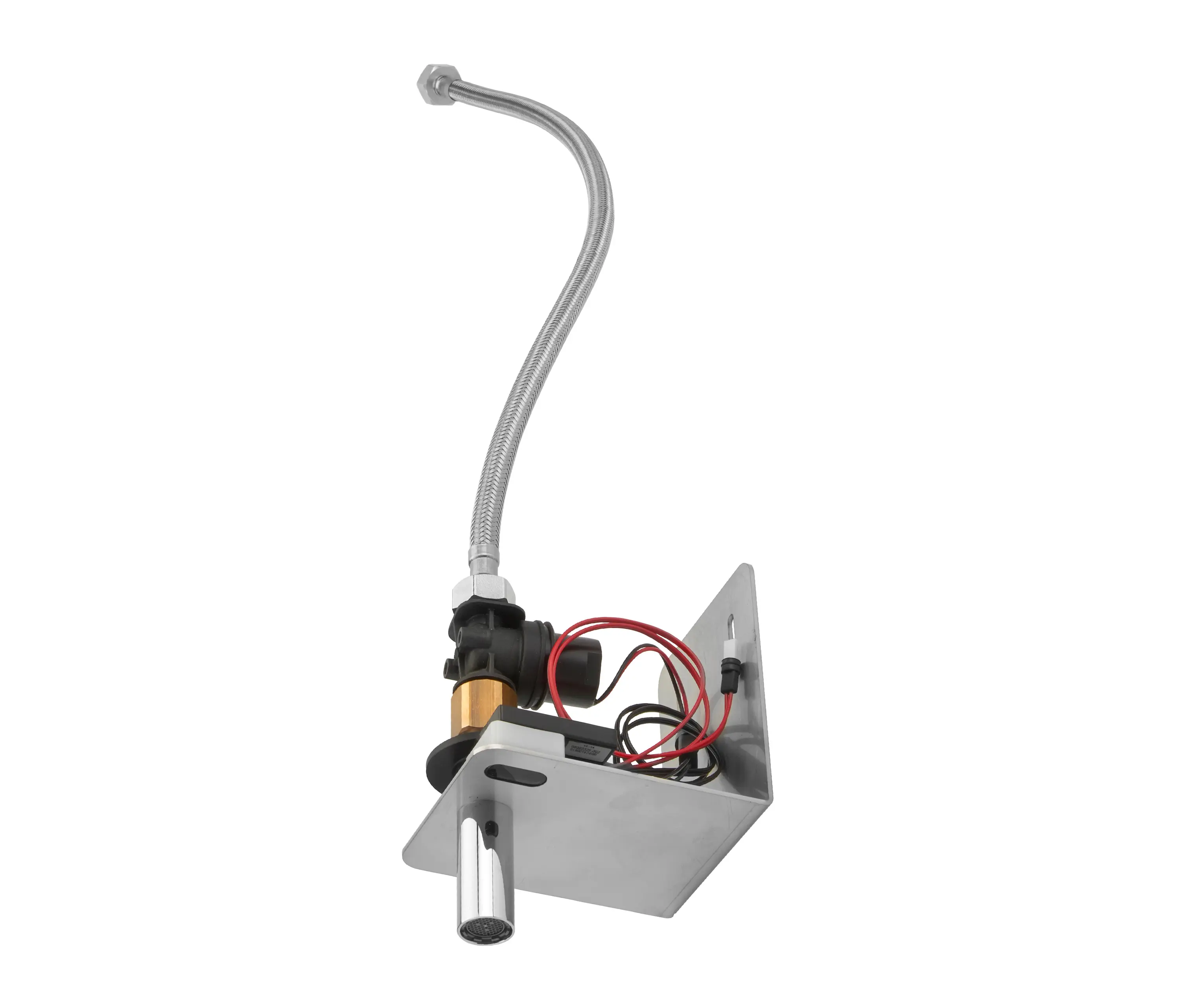

Electronic wall-mounted faucet for concealed installations, integrated behind the washroom mirror. Activated by infrared sensor. For cold or premixed water. Powered by a 9V transformer. Includes a low battery level indicator. Adjustable sensor settings by remote control: sensor range, delay in, delay out and security time. The faucet will automatically shut off after being used for more than 90 seconds.
Technical Data:
Power: 9V transformer
Operating pressure: 0.5-0.8 bar / 7.0-116.0 psi
Water supply: Cold or premixed water
Max water temperature: 70˚C
Water flow: 5 lpm / 1.32 gpm (water saving option: 1.89 lpm / 0.5 gpm)
Options:
24 hour mandatory hygiene flush
Remote control
Matching soap dispenser
Concept
The BTM series includes a Touch-free faucet, touch-free soap or foam dispenser and a completely customizable soap-water-air system for integration behind the mirror. All operated by IR sensor. Concealed behind the mirror for a clean minimalist design. Easy installation and quick and simple maintenance and refill. Conserves water and reduces soap waste. Maximizes LEED rating.
