SL 30

The slim light channel with high end finish –

especially developed for LEDs.

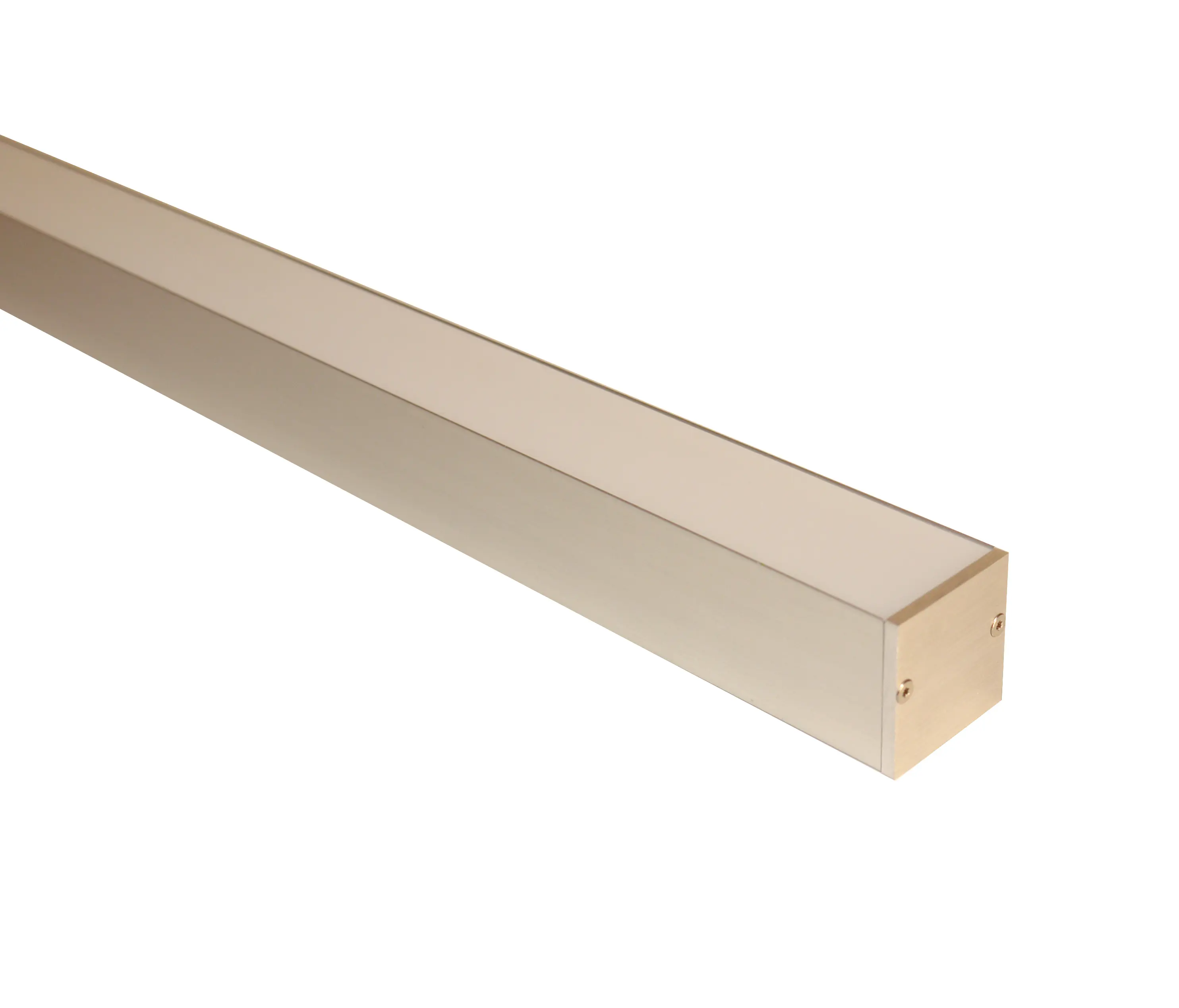

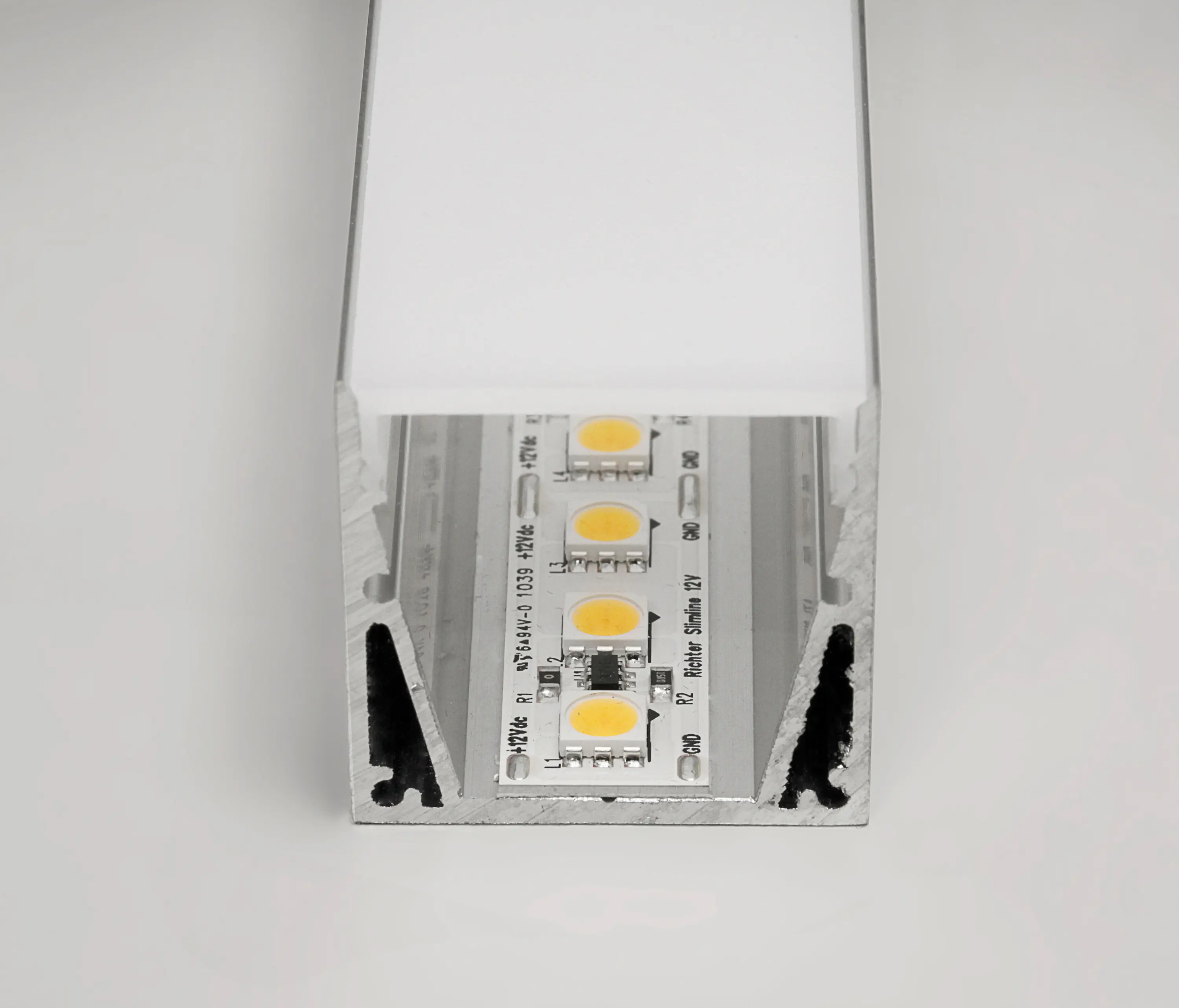

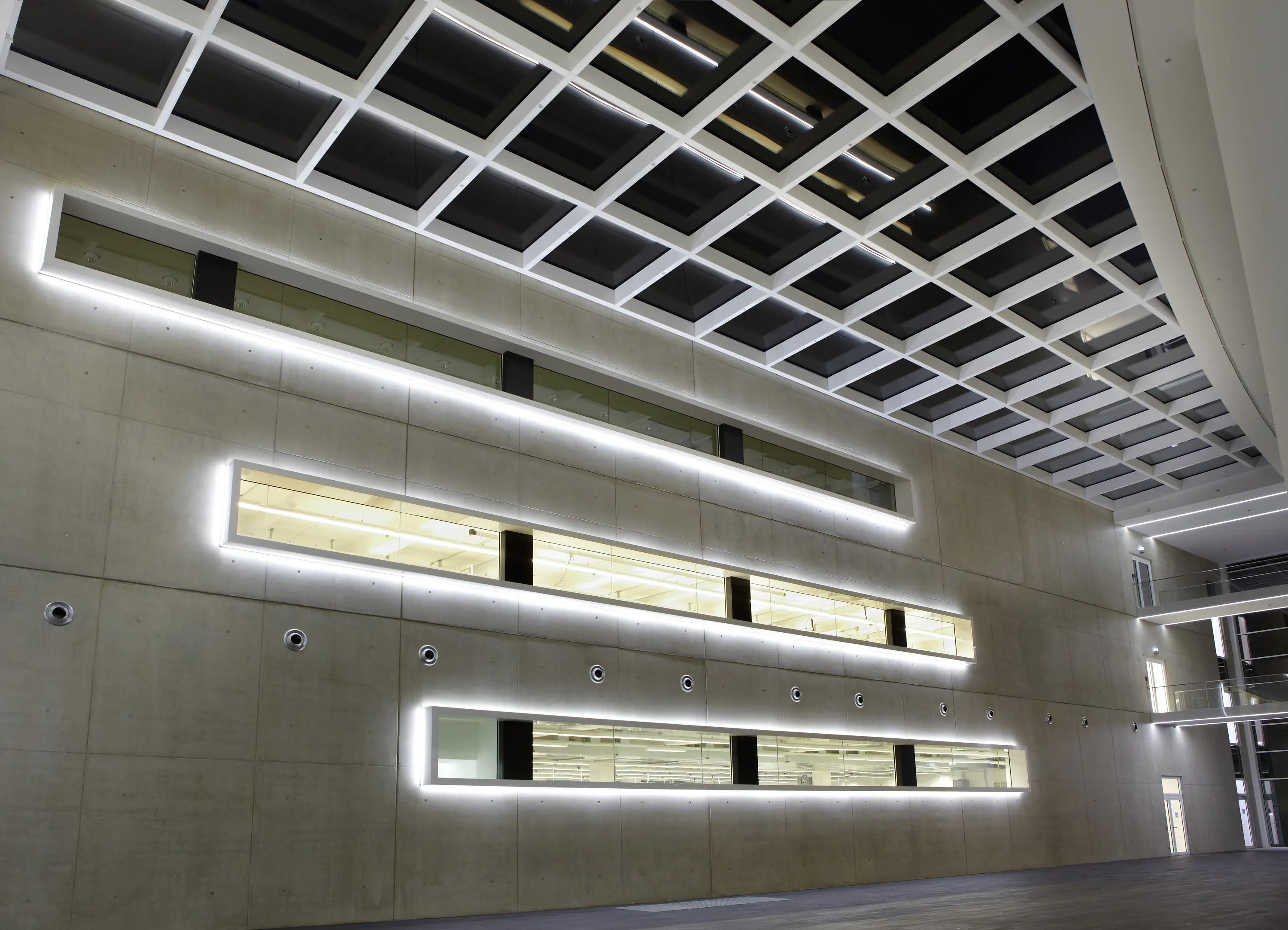

The Richter SL30 is an innovative light channel, specially designed for use with LEDs. With a dimension of 30 x 30 mm it is perfectly suited for effect illumination and contour accentuation as well as for general lighting purposes. The integrated reflector optimizes light output of a complete luminaire compared to the use of a standard U-shape lighting profile. The SL30 comes with a included diffusor The light source is the energy efficient Richter Slimline LED. It is available in warm-white (3700 K), neutral-white (5300 K) cool-white (6500 K) or freely adjustable from 2700 to 8000 Kelvin. In this version, the LEDs have a color rendering index CRI up to 95, which nearly matches daylight with CRI 100. »Competition for sunlight.«

SPECIFICATIONS

Dimensions: Desired length x 30 x 30 mm

Length: stocked length 6,00m; cuttable into smaller pieces on request

Material (channel): aluminium, brushed and anodised E6/EV1

Material (diffuser): PMMA, translucent

Colour temperature: 6500 K / 5300 K / 3700 K / 2700 K to 8000 K

Efficiency: depending on desired colour temperature

Luminous flux: depending on desired colour temperature

CRI: max. 95

Dimmable via: 0-10-V, 1-10 V, DALI,DMX, optional for one colour temperature, DMX (DALI via DDC-1) für einstellbare Farbtemperatur for adjustable colour temperature

Contents: Aluminium Profile, Diffusor, End caps with screws, Retaining clips

Operating temperature: -10 ˚C … +40 ˚C

Storage temperature: -40 ˚C … +85 ˚C
