Q One Surface

Name: Q One Surface
Brand: Nimbus
SKU: 557-649 (2700 K)557-650 (3000 K)557-651 (4000 K)

Appliques muralesparNimbus

Variantes disponibles :

Visitez le produit sur le site de Nimbus

Maison

Appliques murales

Q One Surface

À propos de ce produit

Architonic ID: 1536223

SKU: 557-649 (2700 K)557-650 (3000 K)557-651 (4000 K)

Année de Lancement: 2018

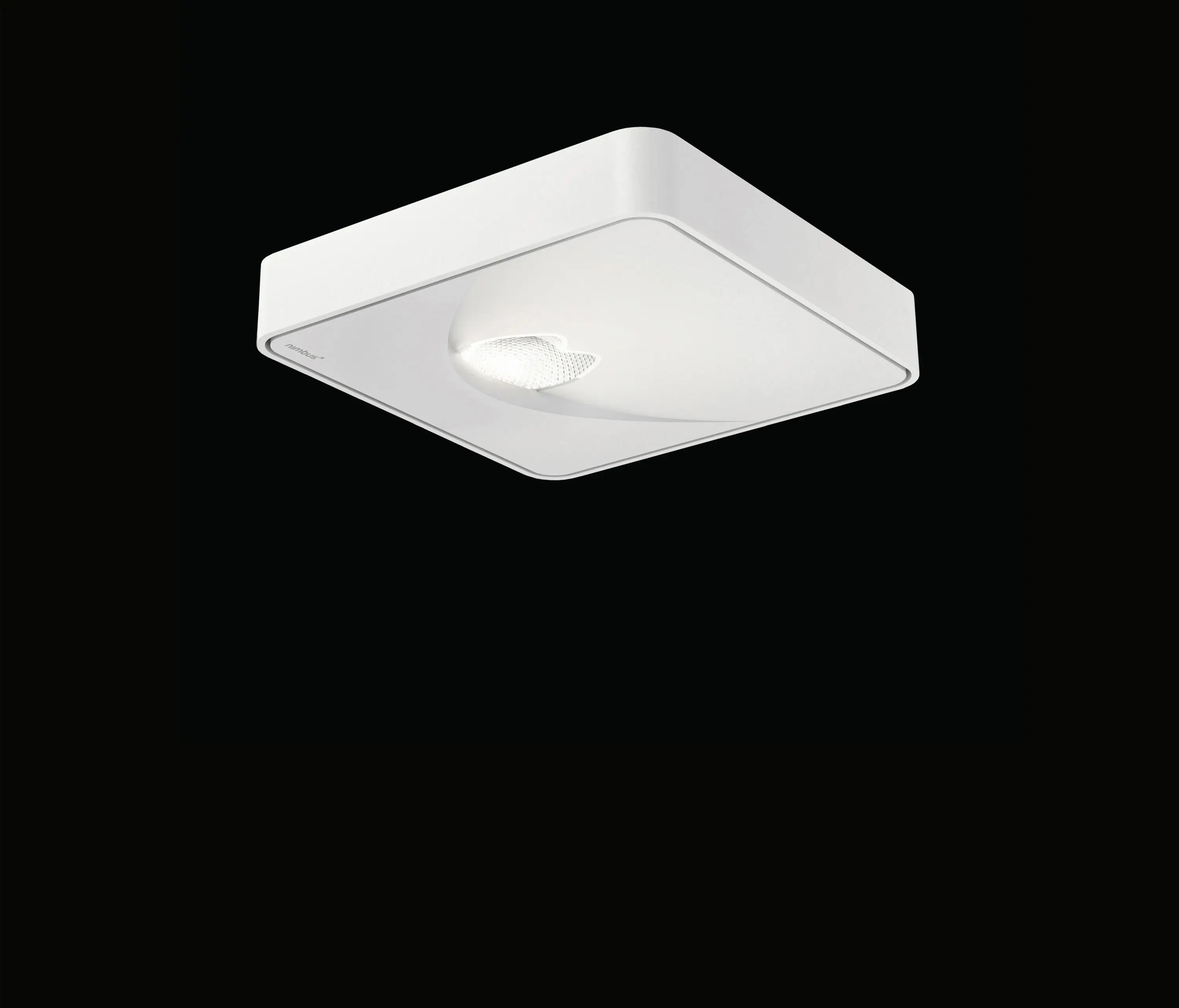

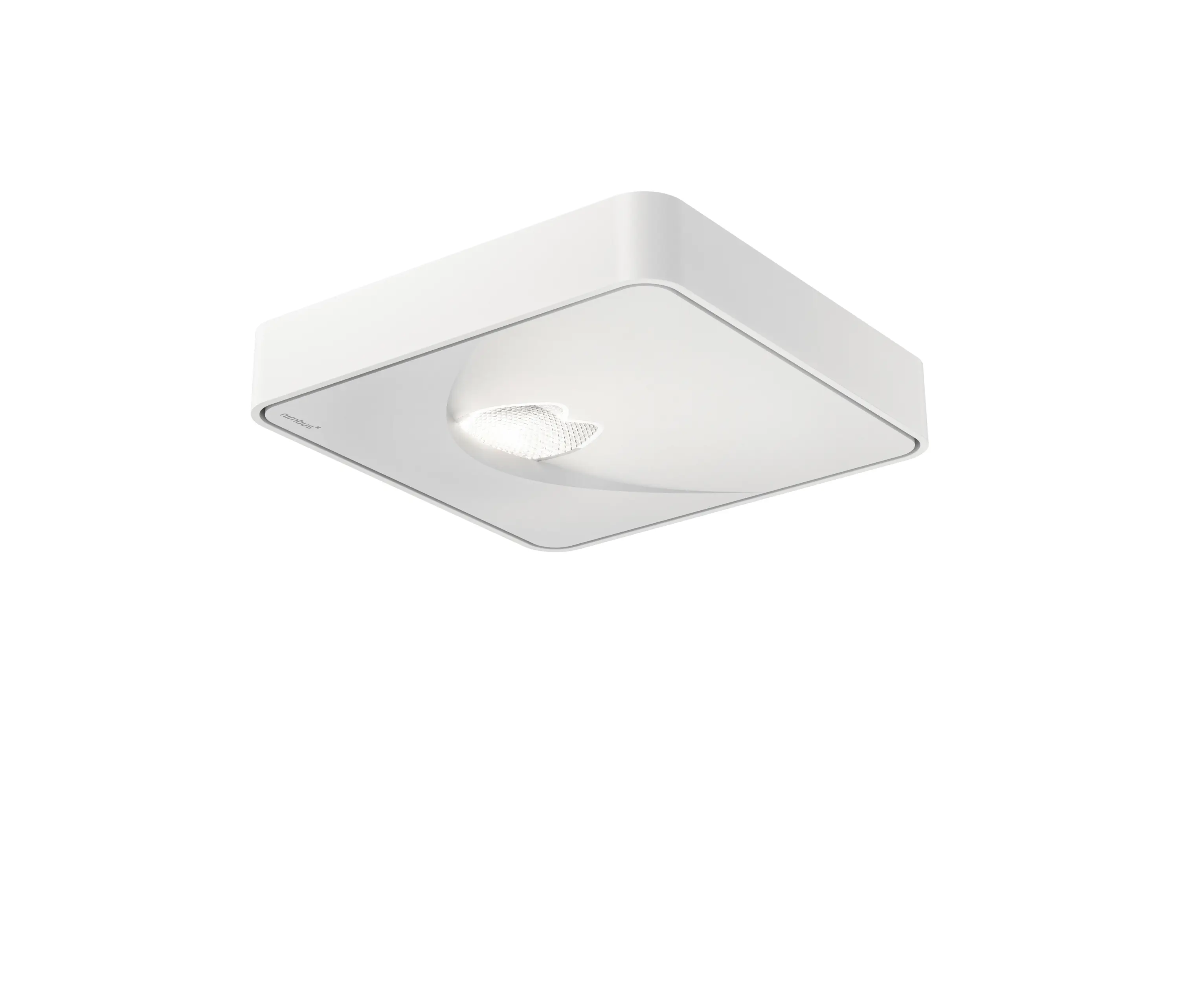

Compact and elegant: Q ONE is a glare-free wall spot with Bartenbach reflector technology, in black or white. The lighting effect is extremely precise and the light quality excellent. A characteristic feature is the elegant underside of the luminaire with its gentle, flowing forms and surfaces. These contribute to the luminaire's optimised and harmonious glare suppression.

LED wallwasher with cubic surface-mounted housing made of aluminium, designed for classic ceiling mounting, front side with integrated free form reflector for precise focussing of light and projection to the wall surface, light distribution with asymmetric narrow beam for accentuated illumination of objects and walls, the full light performance appears thus on the illuminated area, surface-mounted housing formally adapting to the Nimbus products Q FOUR and Q FRAME, with integrated converter, dimmable via DALI or via trailing/leading edge in combination with conventional wall dimmer.

Glare-free wall spot, white or black

Dimensions:

128 x 128 x 52

Technology:

LED-Technology

230 V AC (with converter):

2700 K 10,8 W A CRI > 90

3000 K 10,8 W A CRI > 90

4000 K 10,8 W A+ CRI > 90

Flux:

up to 780 lm

Light distribution:

100 % asymmetrical direct beam

Protection type:

IP 20

Concept

Excellent light quality, a precise lighting effect and a light source that is practically invisible: the new Q ONE rounds off the lighting designer's toolkit and opens up new areas for using directed light. Q ONE is available from november 2018 onwards.

The focused light enables the realisation of defined lighting zones and the accentuation of surfaces and spaces. The compact module integrates a Bartenbach lense with a high-performance LED. Nimbus has placed special focus on optimised and harmonious glare suppression.

In contrast to the existing Q modules, which emit a uniform, widearea light, Q ONE provides precise accentuating light and is also used as directed light. As light source, it retreats completely into the background, with its full lighting performance coming to the fore at the illumination level.
