Name: Q One IN
Brand: Nimbus
SKU: 560-180 (schwarz matt/2700 K) 560-181 (schwarz matt/3000 K) 560-182 (schwarz matt/4000 K) 560-183 (weiß matt/2700 K) 560-184 (weiß matt/3000 K) 560-185 (weiß matt/4000 K)

Plafonniers encastrésparNimbus

Variantes disponibles :

Visitez le produit sur le site de Nimbus

Maison

Plafonniers encastrés

Q One IN

À propos de ce produit

Architonic ID: 20163966

SKU: 560-180 (schwarz matt/2700 K) 560-181 (schwarz matt/3000 K) 560-182 (schwarz matt/4000 K) 560-183 (weiß matt/2700 K) 560-184 (weiß matt/3000 K) 560-185 (weiß matt/4000 K)

Année de Lancement: 2020

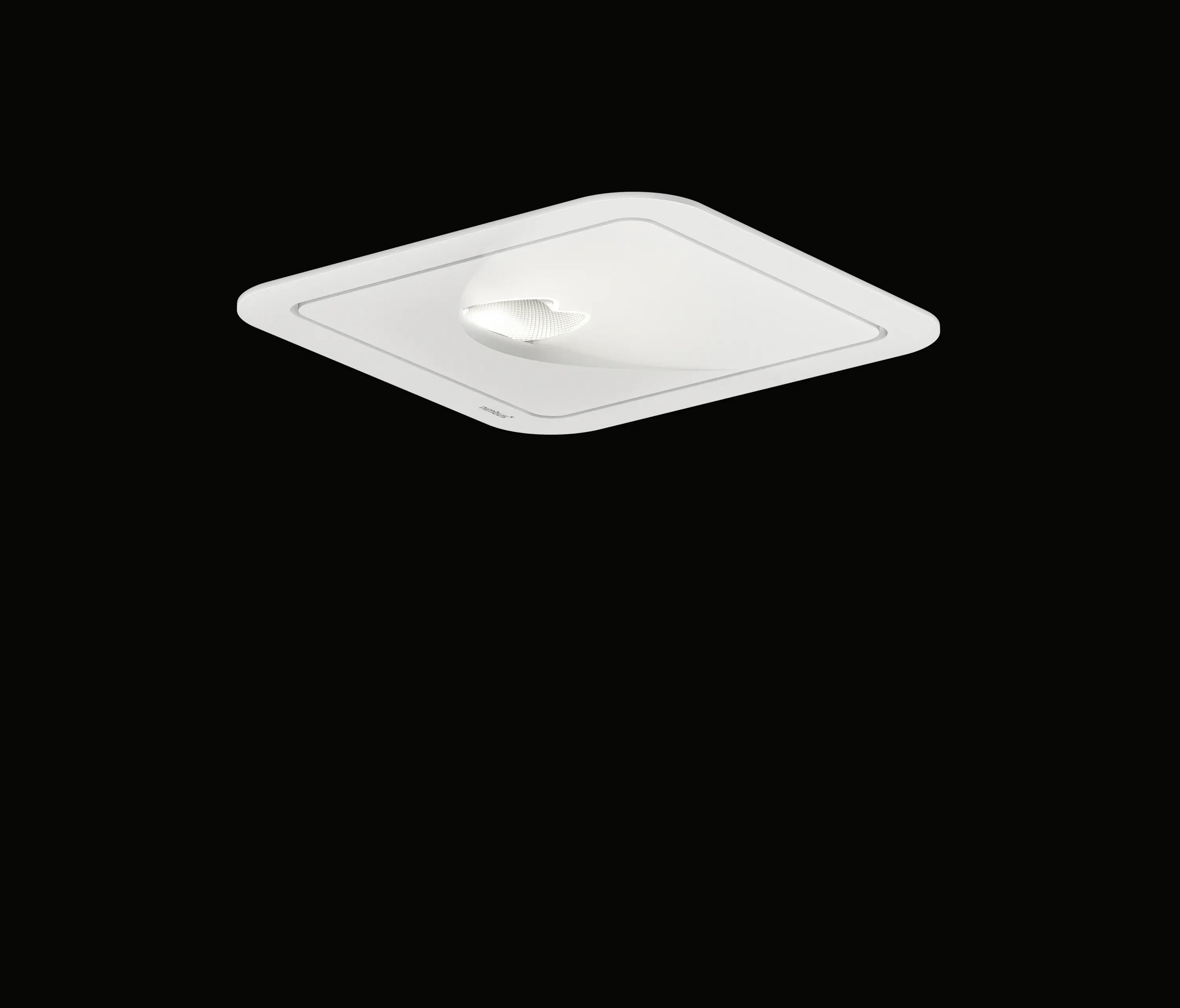

Recessed LED wallwasher for cavity mounting in a suspended ceiling, front side with integrated free form reflector for precise focussing of light and projection to the wall surface, light distribution with asymmetric narrow beam for accentuated illumination of objects and walls, the full light performance appears thus on the illuminated area, design formally adapting to the Nimbus families Q ONE, Q FOUR and FRAME, operation by means of external converter (within the scope of delivery), dimmable via DALI or via trailing/leading edge in combination with a conventional wall dimmer.

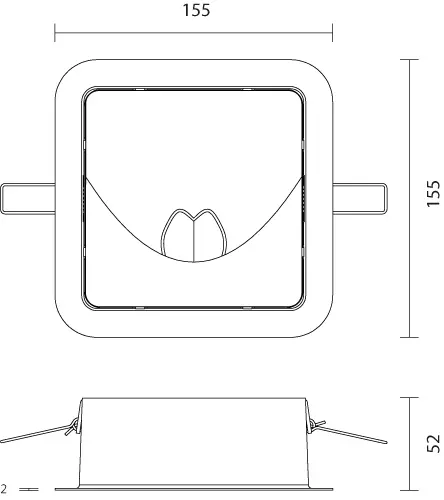

Dimensions:

155 x 155 x 52

Technology:

LED-Technology

230 V AC (with converter):

2700 K max. 10,8 W A CRI > 90

3000 K max. 10,8 W A CRI > 90

4000 K max. 10,8 W A+ CRI > 90

Flux:

up to 780 lm

Light distribution:

100 % asymmetrical direct beam

Protection type:

IP 20

Concept

Excellent light quality, a precise lighting effect and a light source that is practically invisible: the new Q ONE rounds off the lighting designer's toolkit and opens up new areas for using directed light. Q ONE is available from november 2018 onwards.

The focused light enables the realisation of defined lighting zones and the accentuation of surfaces and spaces. The compact module integrates a Bartenbach lense with a high-performance LED. Nimbus has placed special focus on optimised and harmonious glare suppression.

In contrast to the existing Q modules, which emit a uniform, widearea light, Q ONE provides precise accentuating light and is also used as directed light. As light source, it retreats completely into the background, with its full lighting performance coming to the fore at the illumination level.
