Q Four IN 80°

Variantes disponibles :

Q Four IN 80°
Visitez le produit sur le site de Nimbus
    Maison/Plafonniers encastrés/

    Q Four IN 80°

À propos de ce produit

Architonic ID: 20163970

SKU: 560-203 (schwarz matt/2700 K)560-204 (schwarz matt/3000 K)560-205 (schwarz matt/4000 K)560-200 (weiß matt/2700 K)560-201 (weiß matt/3000 K)560-202 (weiß matt/4000 K)

Année de Lancement: 2020

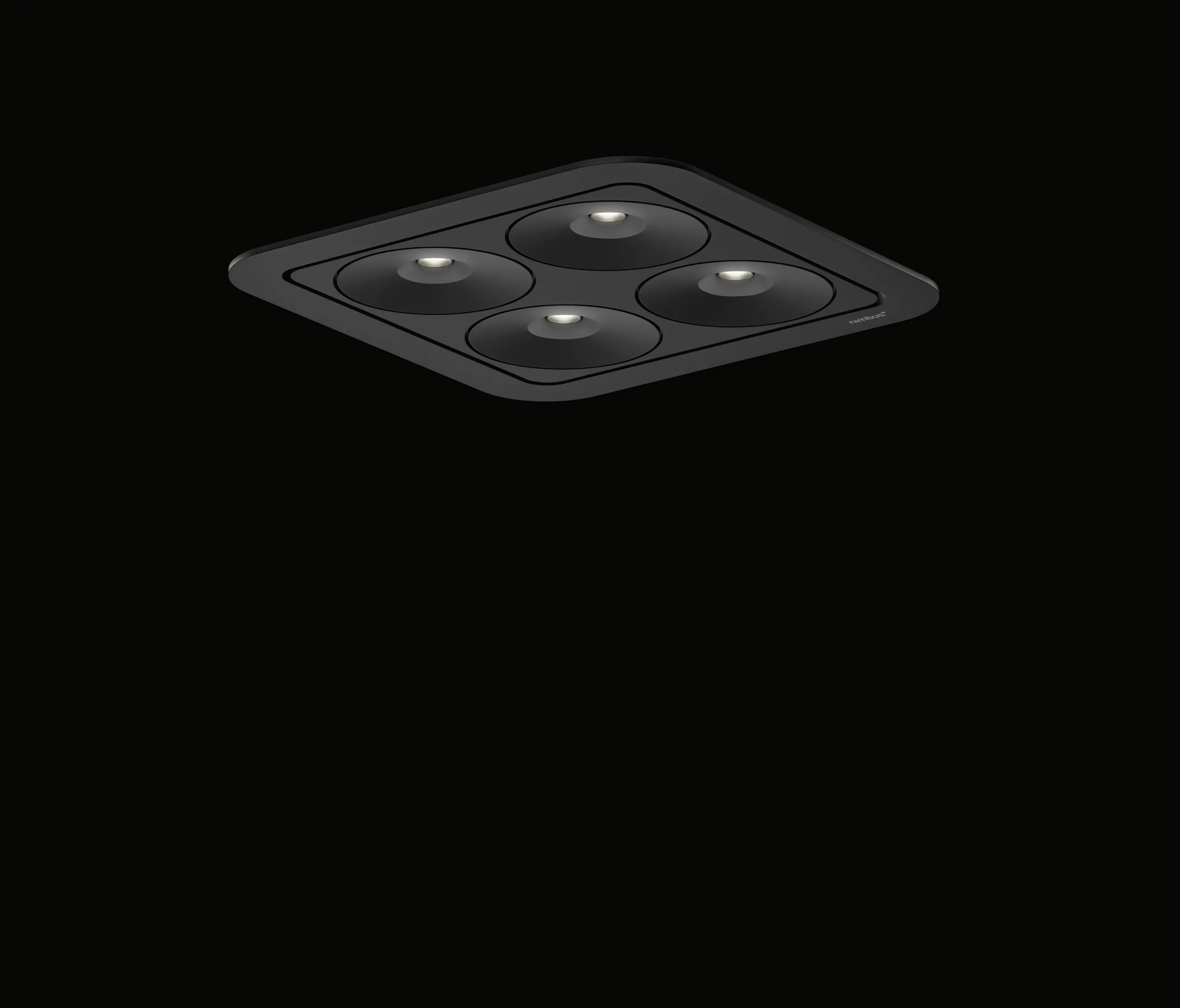

Recessed LED ceiling spot for cavity mounting in a suspended ceiling, 4 integrated Bartenbach lenses for focussing light and reducing glare, narrow beam (beam angle 80°) for accentuated illumination of surfaces and rooms, the full light performance thus appears on the illuminated area, design formally adapting to the Nimbus families Q ONE, Q FOUR and FRAME, operation by means of an external converter (within the scope of delivery), dimmable via DALI or via trailing/leading edge in combination with a conventional wall dimmer.

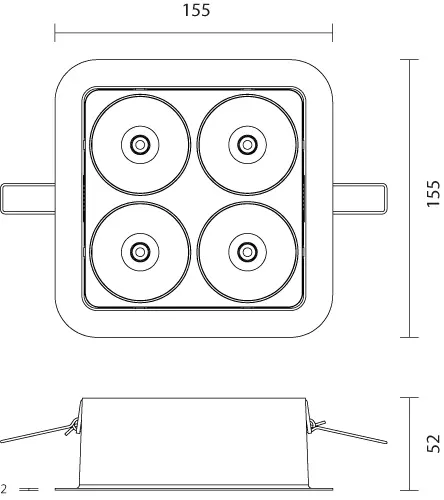

Dimensions:

155 x 155 x 52

Technology:

LED-Technology

230 V AC (with converter):

2700 K max. 16,4 W A CRI > 90

3000 K max. 16,4 W A CRI > 90

4000 K max. 16,4 W A CRI > 90

Flux:

up to 960 lm

Light distribution:

100 % direct beam

Protection type:

IP 20

Concept

Nimbus is now presenting the Q FOUR family – an evolution of Modul Q ceiling luminaires featuring a spot. The focused light enables the realisation of defined lighting zones and the accentuation of surfaces and spaces. The clear-cut, geometric basic shape of the proven Nimbus Modul Q family continues to constitute a characteristic design feature. Q FOUR is available from november 2018 onwards.

Nimbus has placed special focus on optimised and harmonious glare suppression. As light sources, the modules retreat completely into the background, the light shines "from behind the scenes". The compact modules integrate Bartenbach lenses with four high-performance LEDs. The luminaires blend in with the surrounding interior and are kept in timelessly elegant black or white.
