Plafotherm® B/E AirHybrid

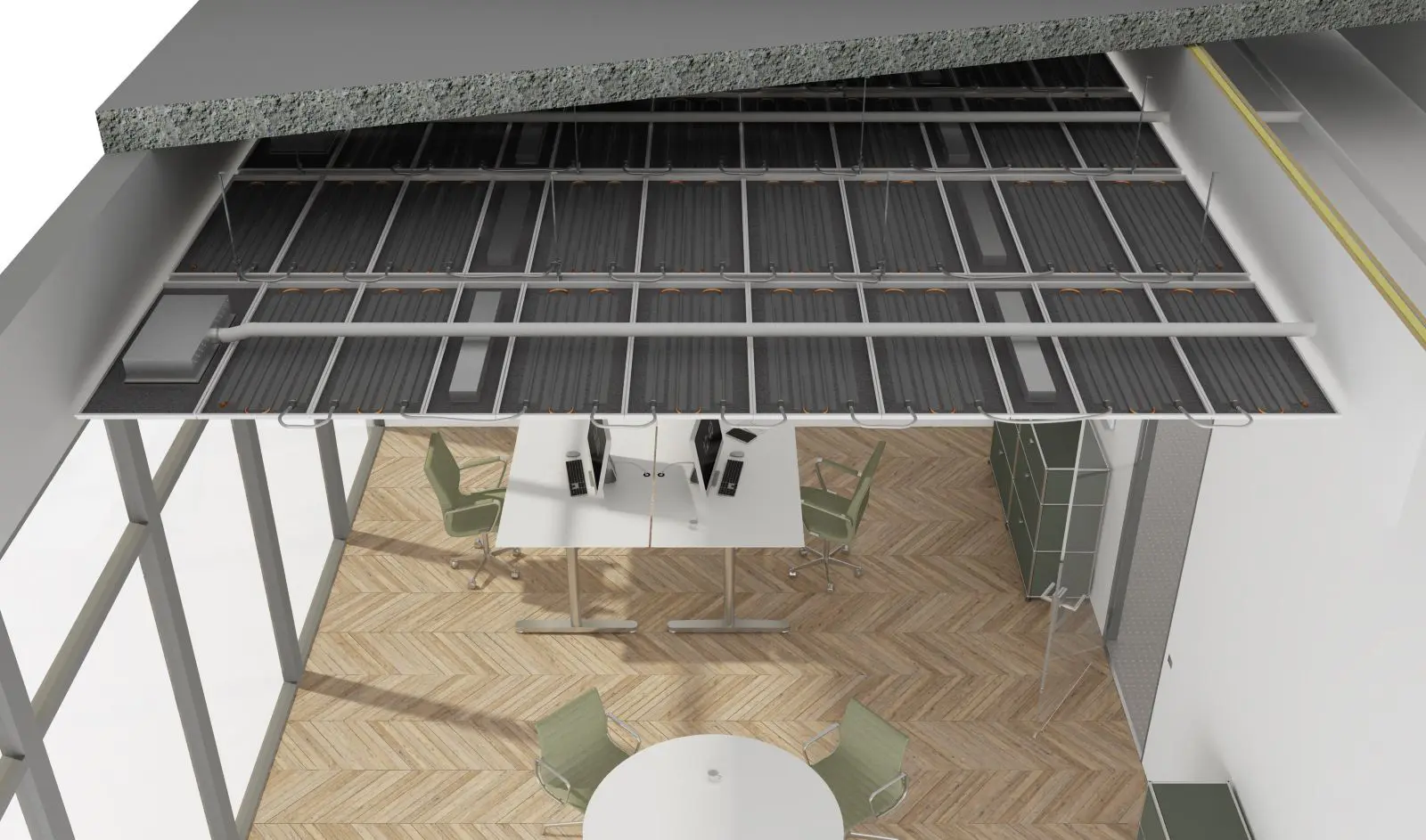

Hybrid Ventilation Component in Metal Ceiling

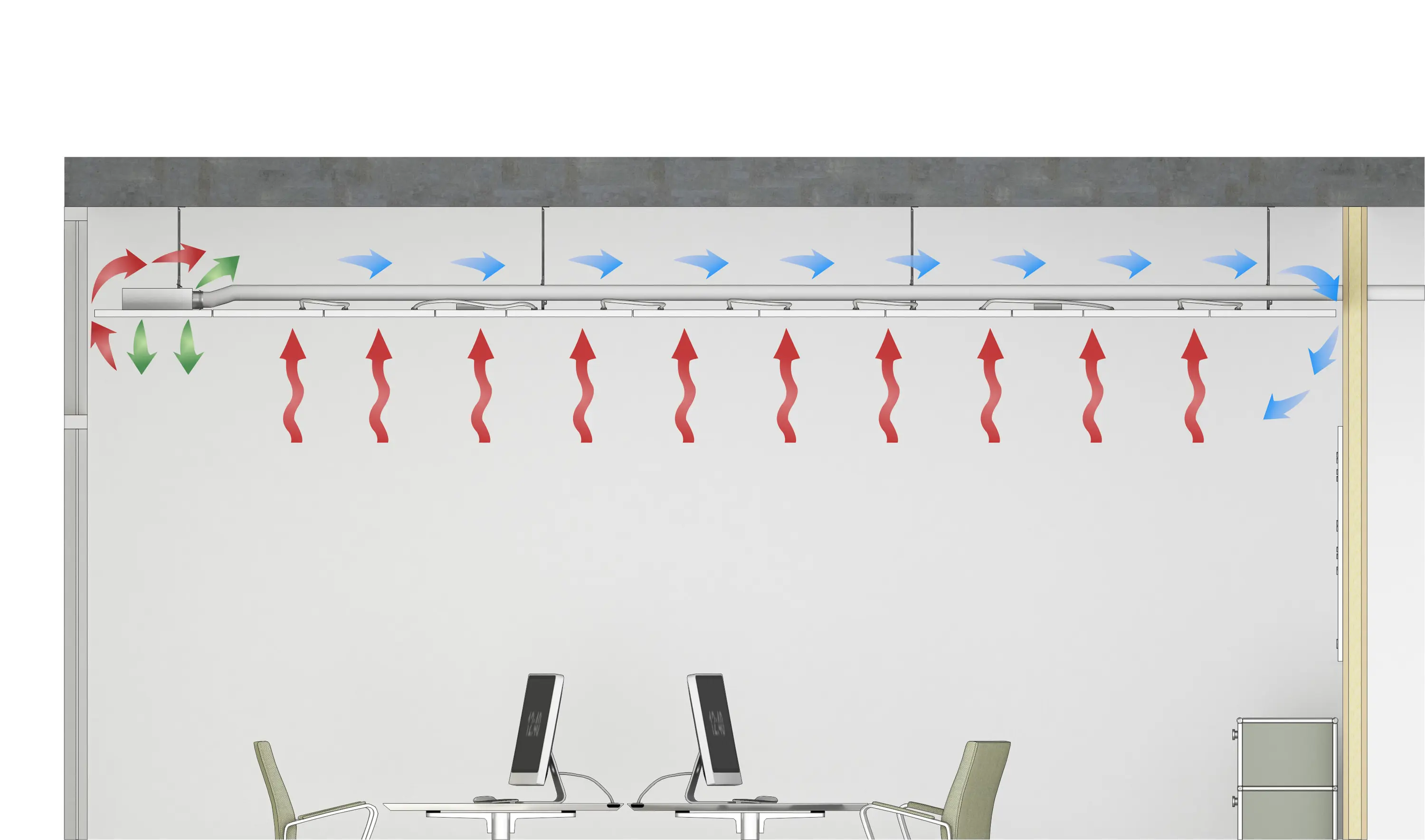

Post Cap and Hook-On ceilings can be combined with ventilation components on the rear side. The ventilation hood is not visible from below – a homogeneous ceiling surface is guaranteed. Best comfort is achieved thanks to an even distribution of supply air – through panel perforations and induction outlets in the ceiling void. The ventilation component can be removed and cleaned according to VDI 6022. Besides supplying fresh air, Plafotherm® AirHybrid can be used for the activation of the concrete core.

• multifunctional ceiling with guided supply air

• thermoactive for the activation of the concrete core

• perfectly matched to Plafotherm® B Heated/Chilled Post Cap Ceilings and Plafotherm® E Heated/Chilled Hook-On Ceilings

• homogeneous ceiling surface due to concealed hybrid ventilation hood

• inserts supply air through panel perforation or induction outlets in the ceiling void

• comfort tested to DIN, ISO and SIA thanks to an even distribution of supply air

Concept

Heated and Chilled Hybrid Ceilings

Multifunctional in all areas.

Heated/Chilled Hybrid Ceilings are multifunctional elements: they combine various properties like heating, cooling and venting. The right systems for the activation and working of the concrete core are available. Plafotherm® Heated/Chilled Ceilings ensure optimum comfort when combined with hybrid ventilation hoods or heated/chilled beams.

• multifunctional solutions combine heating, cooling, venting and much more

• systems for concrete core activation and working are available

• optimal comfort thanks to the combination with hybrid ventilation hoods or heated/chilled beams
