LEVEL | STUDIO - Light source with diffuser
- Maison/Plafonniers/
LEVEL | STUDIO - Light source with diffuser
À propos de ce produit
Architonic ID: 20754012
SKU: 48510-48511
Année de Lancement: 2023

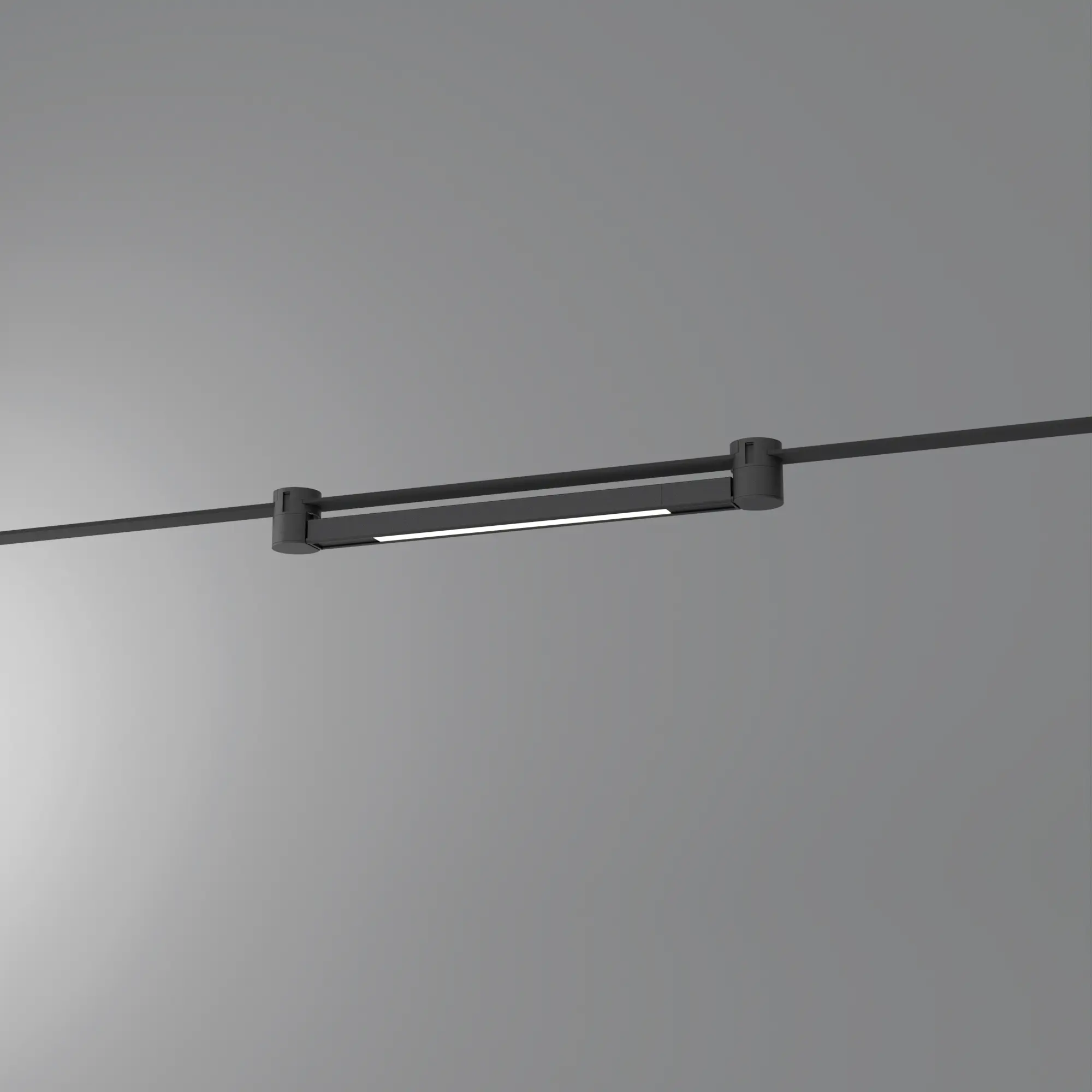

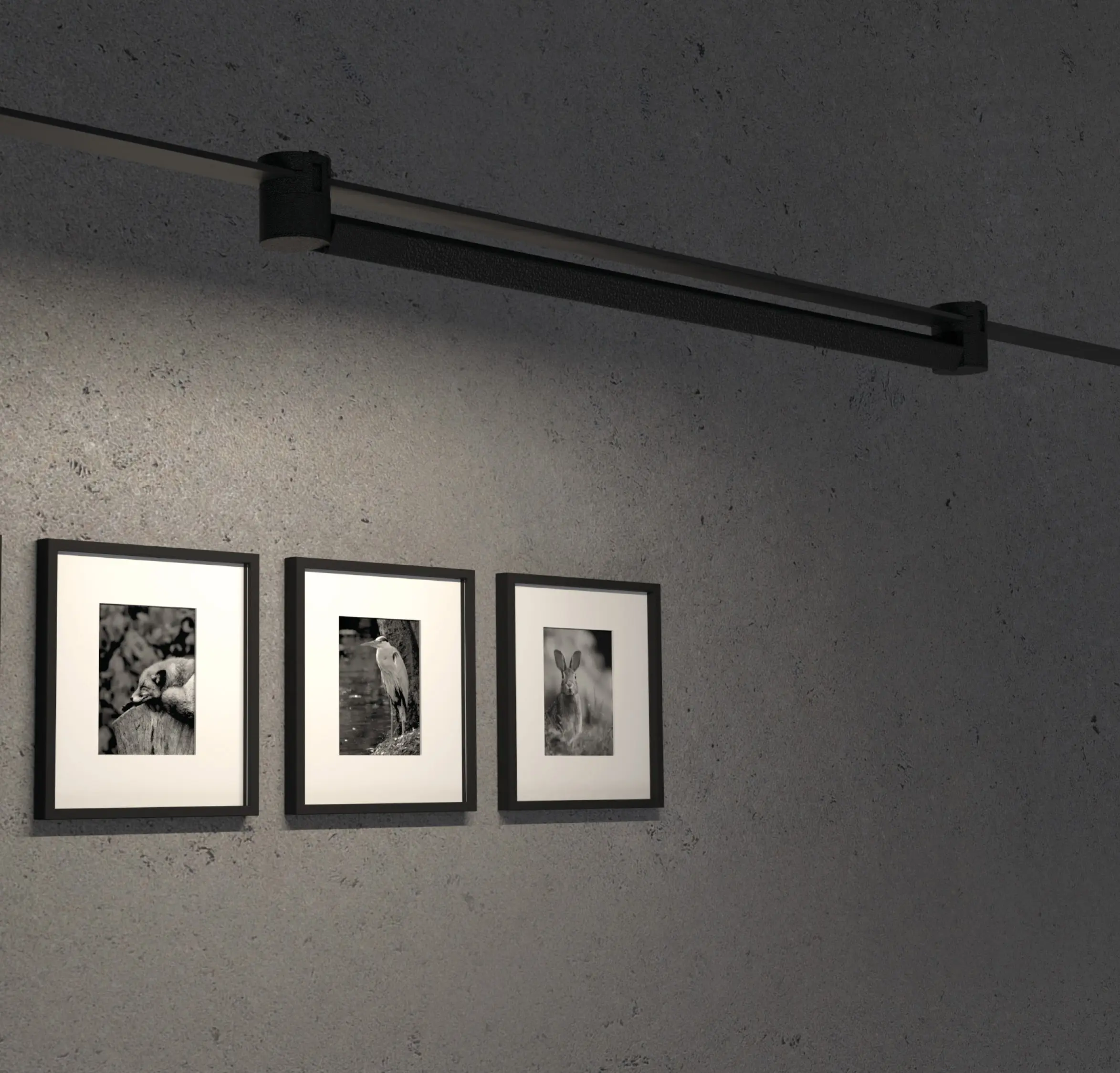

The LEVEL STUDIO sources can be rotated up to 90° on both sides, allowing lateral lighting of the environment. Available in the Dark version and in the diffuser version. Painted aluminum body. Integrated PWM dimmable electronics, compatible with all control technologies [DALI, Isolated pushbutton, 100K Linear Potentiometer, 0-10V Passive, 1-10V Passive].
ON-OFF / PWM Dimmable
9W- 48V
2700K CRI 90- 800 lm
3000K CRI 90- 850 lm
Dimmable converter included.
III | IP20 | CE
Kg 0,48
Concept
Straight on, towards a new idea.
LEVEL is a new way of thinking about light: it combines the lightness of a cable system with the functionality of a track. Thanks to its flexibility it is easily transportable and can be cut to size. The simplicity of the system translates into installation speed. LEVEL can be mounted on a wall, ceiling or wall to ceiling.
LEVEL is a 48V system developed for both direct and indirect lighting. It integrates 2 external conductors that allow you to reposition the sources with a simple gesture, where you want and countless times, without cutting the cable.
The system can mount different sources using an innovative conveyed wave technology for the control and dimming of the LED circuit.
