À propos de ce produit
Architonic ID: 20754061
SKU: 67100-67101

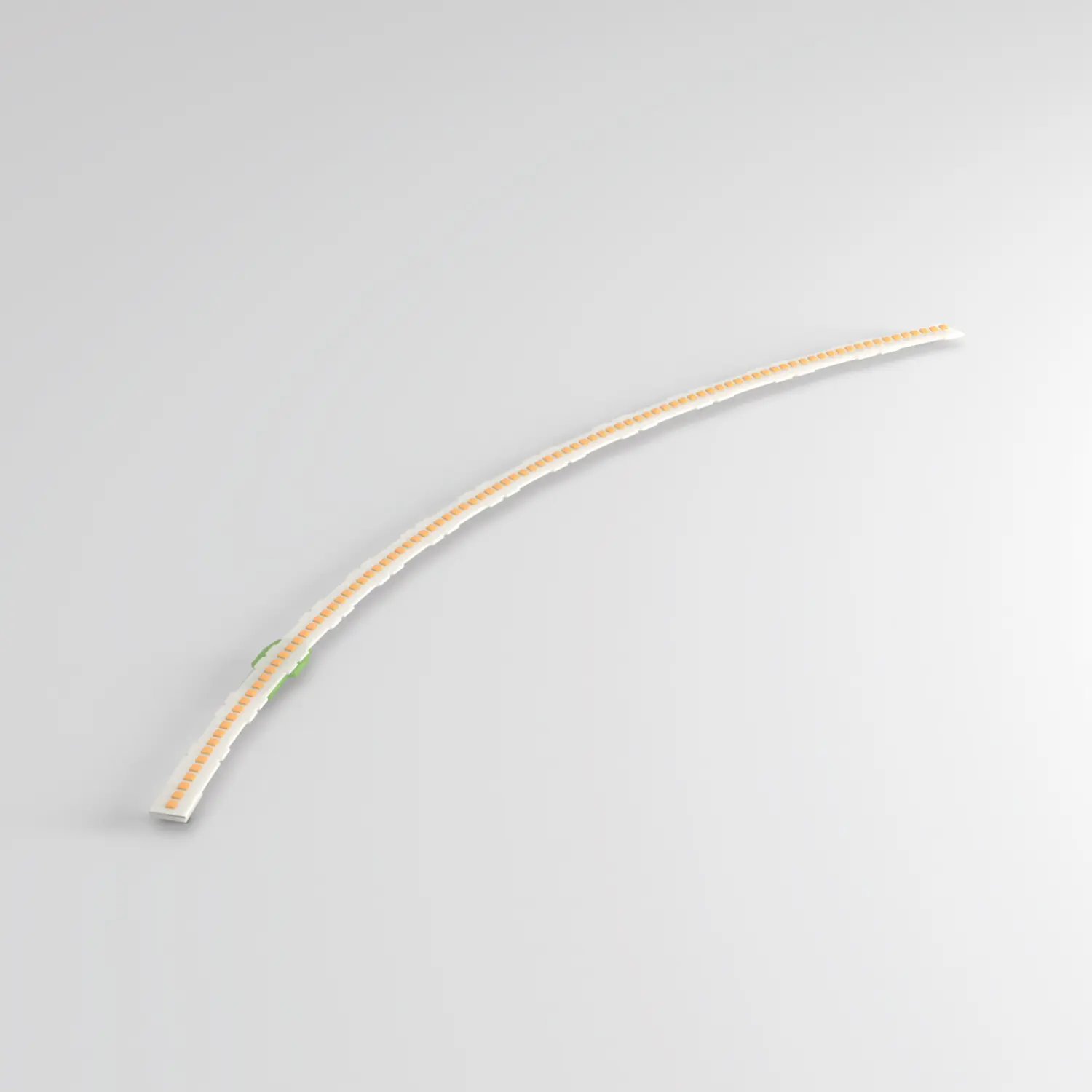

Dimmable ON-OFF LED board module. Ideal for obtaining a continuous line of light in mono or double emission tracks. FR-4 PCB support. Power and signal pickup contacts with spring pusher.

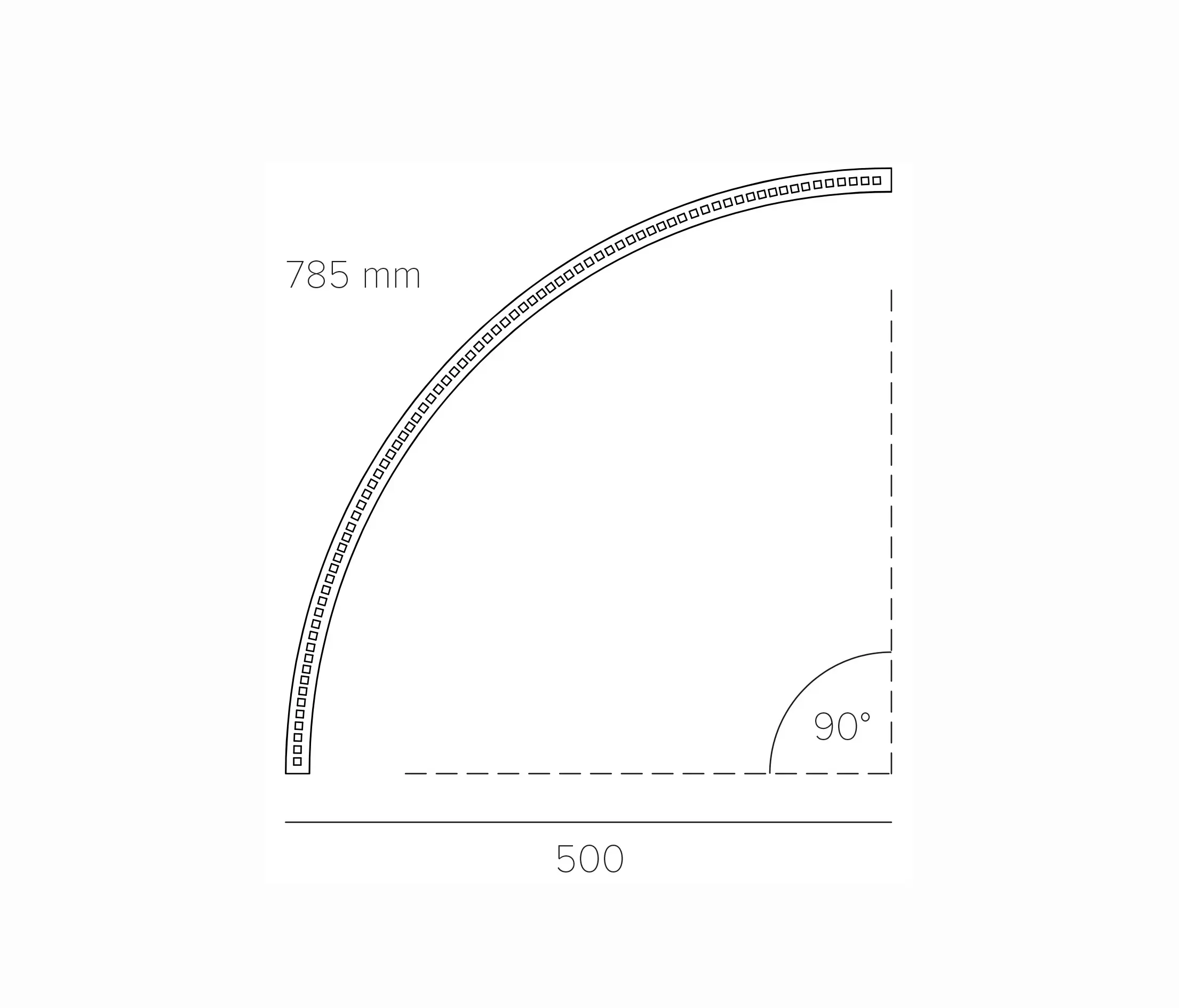

152 LED / 78 cm
12W- 48V- CRI 95
152 LED / 78 cm
16W- 48V- CRI 95
152 LED / 78 cm
24W- 48V- CRI 95
2700K- 1440lm / 2310lm / 2880lm
3000K- 1640lm / 2460lm / 3280lm
Dimmable
III | IP20 | CE
Kg 0,20
Concept

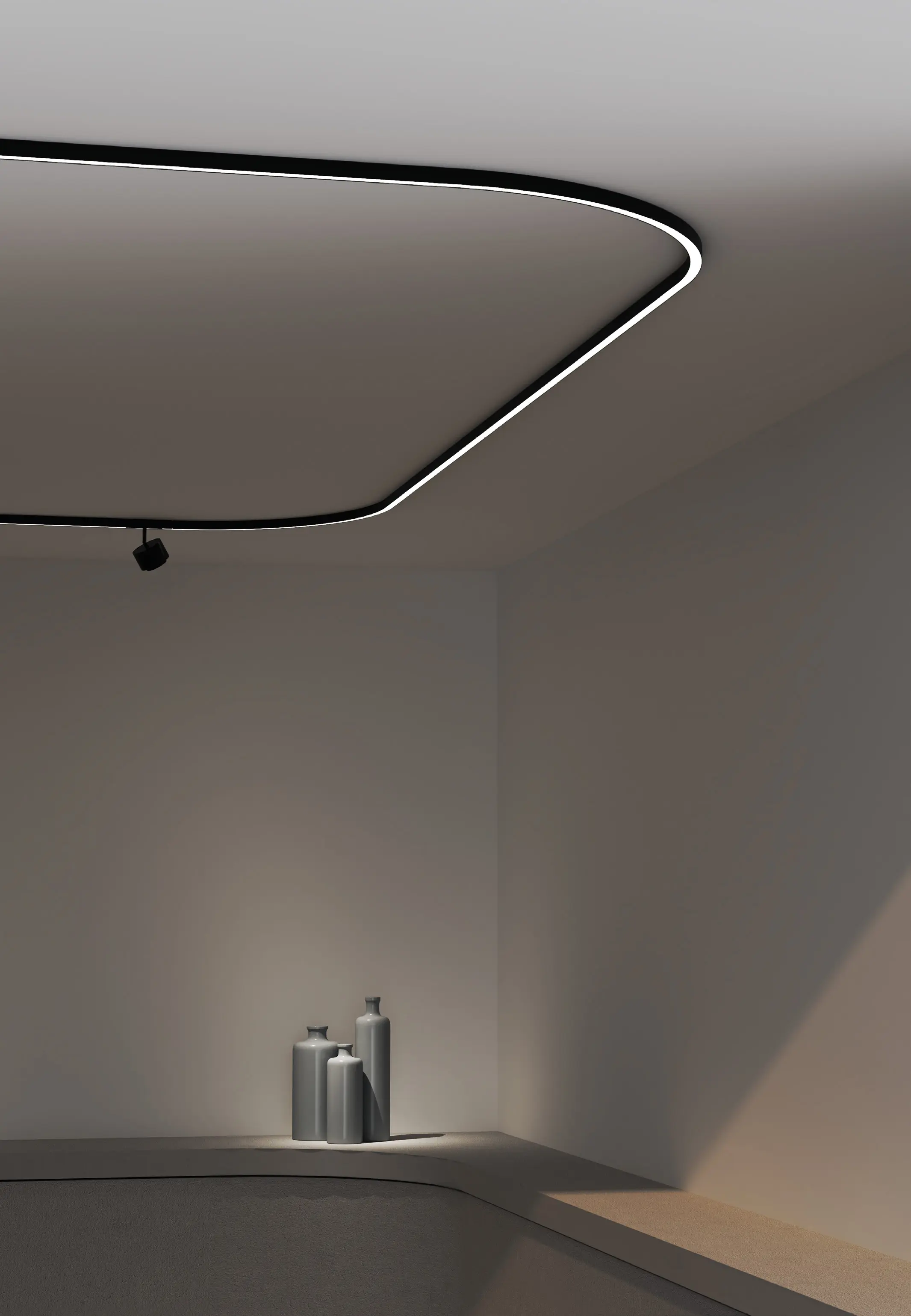

VIAVAI is a line of 48V linear systems, characterized by innovative solutions unique in the panorama of architectural lighting. We have combined the functionality of low voltage tracks with the practicality of linear lighting profiles in a single product. VIAVAI was developed for both direct and indirect lighting of environments and is also available in the version for wall installation. The light sources are extremely easy to install with a simple gesture, through the use of an innovative snap system.
The VIAVAI MONO track is made of extruded aluminum and finished with epoxy paint in black and white colours. It is cuttable to size. VIAVAI MONO can be installed with direct attachment to the wall or ceiling. It can be suspended or recessed through 4 different fixing systems. Maximum capacity 10A.
The VIAVAI DUO track is made of extruded aluminum and finished with epoxy paint in black and white. It is cuttable to size. VIAVAI DUO is available in the version for wall or suspended installation. Maximum capacity 10A per line.
