Doors & Windows | ES70
Architonic ID: 20711432

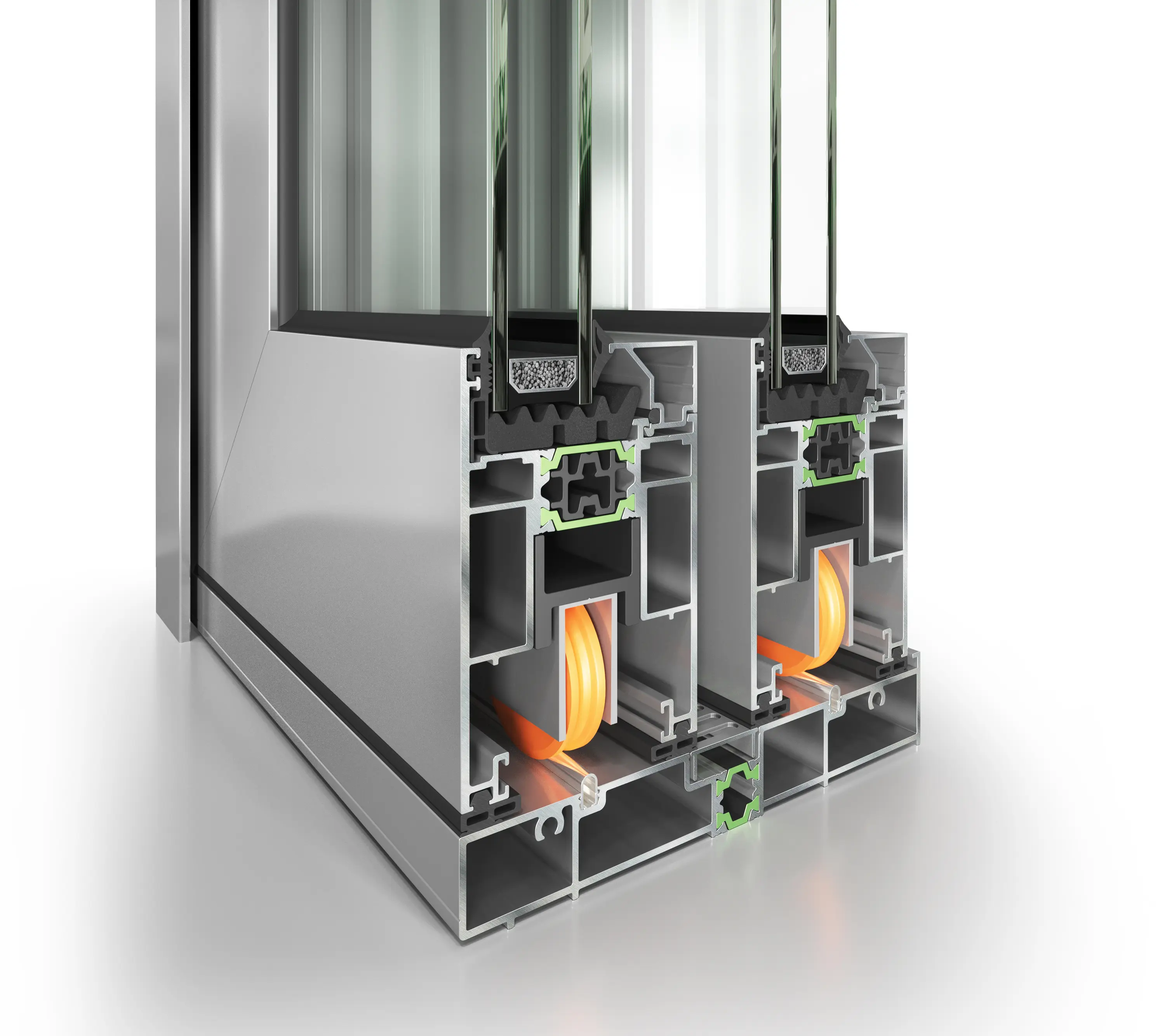

ES70 is a heavy duty sliding window system with thermal break, developed to support a large variety of solutions. It provides:
- different window configurations;
- solutions to extremely thick glazing, heavy weights or large openings, ensuring unique operation;
- heavy wind load resistance;
- lift & slide mechanism;
- stainless steel rail, ensuring smooth sliding;
- flat rail option;
- narrow interlock option;
- integration with flyscreen.
Sash width: 70mm
Sash height: 103mm
Rail height: 25mm / 48mm
Interlock width: 54mm / 113mm
Glazing infill range: 25 ÷ 52 mm
Max. sash width: 3.300mm
Max. sash height: 3.300mm
Max. sash weight: 440kg
Uf ≥ 1,7 W/(m2K)
