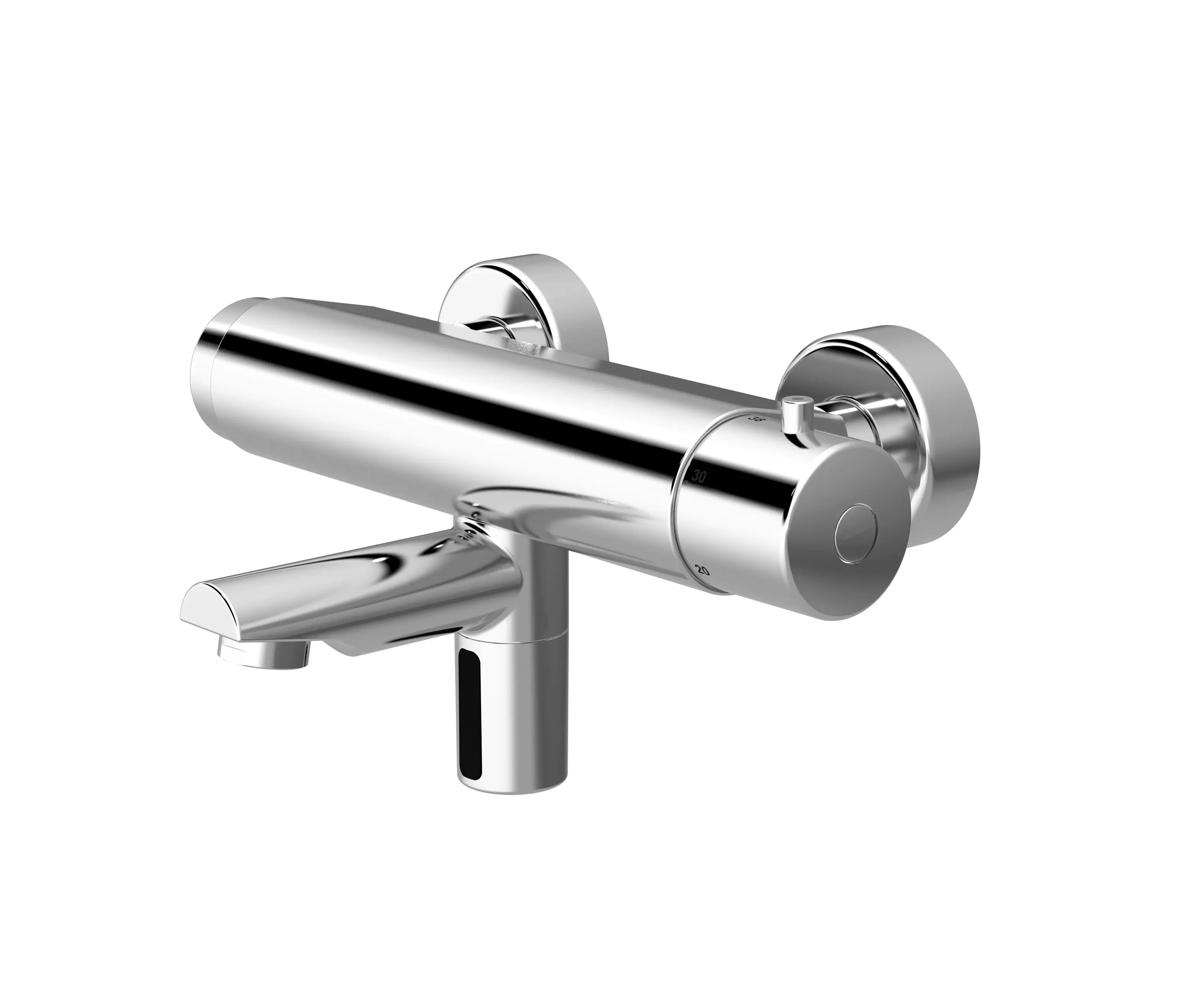

lino exposed wall-mounted faucet W35, with IR-sensor, with thermostat - battery
Architonic ID: 20000093
SKU: 110.305.11
lino exposed wall-mounted faucet W35, with IR-sensor, with thermostat, chrome- battery Touch-free, electronically controlled faucet for exposed mounting:- Sturdy version, faucet body made of brass- Spout and sensor fixed- Dual infrared sensors (with automatic setting feature), microprocessor- Reliable solenoid valve (minimal level of water pressure surge) and economy aerator- Temperature adjustable with thermostat-cartridge- With anti-scalding and auto-thermic protection- Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus- Continuous water flow adjustable with function key• Follow-up time and sensor sensitivity adjustable with function key• 12, 24 or 48-hour hygienic rinse activatable with function key• Including S-connectors 3/4‘‘ and rosettes (lockable S-connector optional)• Compatible service monitor: control of stored operational data, settings and control functions Battery: 6 V Lithium CRP 2- commercial; life time up to 4 years Spout: 200 mm Spout also available in 260 mm (art.nr. 110.306.11) Operating pressure: 0,3-10 bar Flow rate: Approx. 5 l/min. (3bar) Max. water temperature: 80 °C Aerator: Economy aerator, cascade (self-cleaning) Built-in filter: 0,5 mm mesh size Sensor-sensivity: Automatic self-adapting sensor technology Follow-up time: 1 sec. pre-set (adjustable with function key 0-10 sec.) Continuous water flow: 2 min. pre-set (adjustable with function key 0,5-20 min.) Hygienic rinse time: Adjustable with Touch 3 sec.- 20 min.; 2 min. (fixed) Temporary-off: 2 min. (fixed) Engineering standards: DIN EN 200; OPTIONAL ACCESSORIES:: 550.069.11 Conversion kit temperature handle with fixed temperature limit at 42°C
Ce produit appartient à la collection:
Capteurs électroniques
Montage mural
