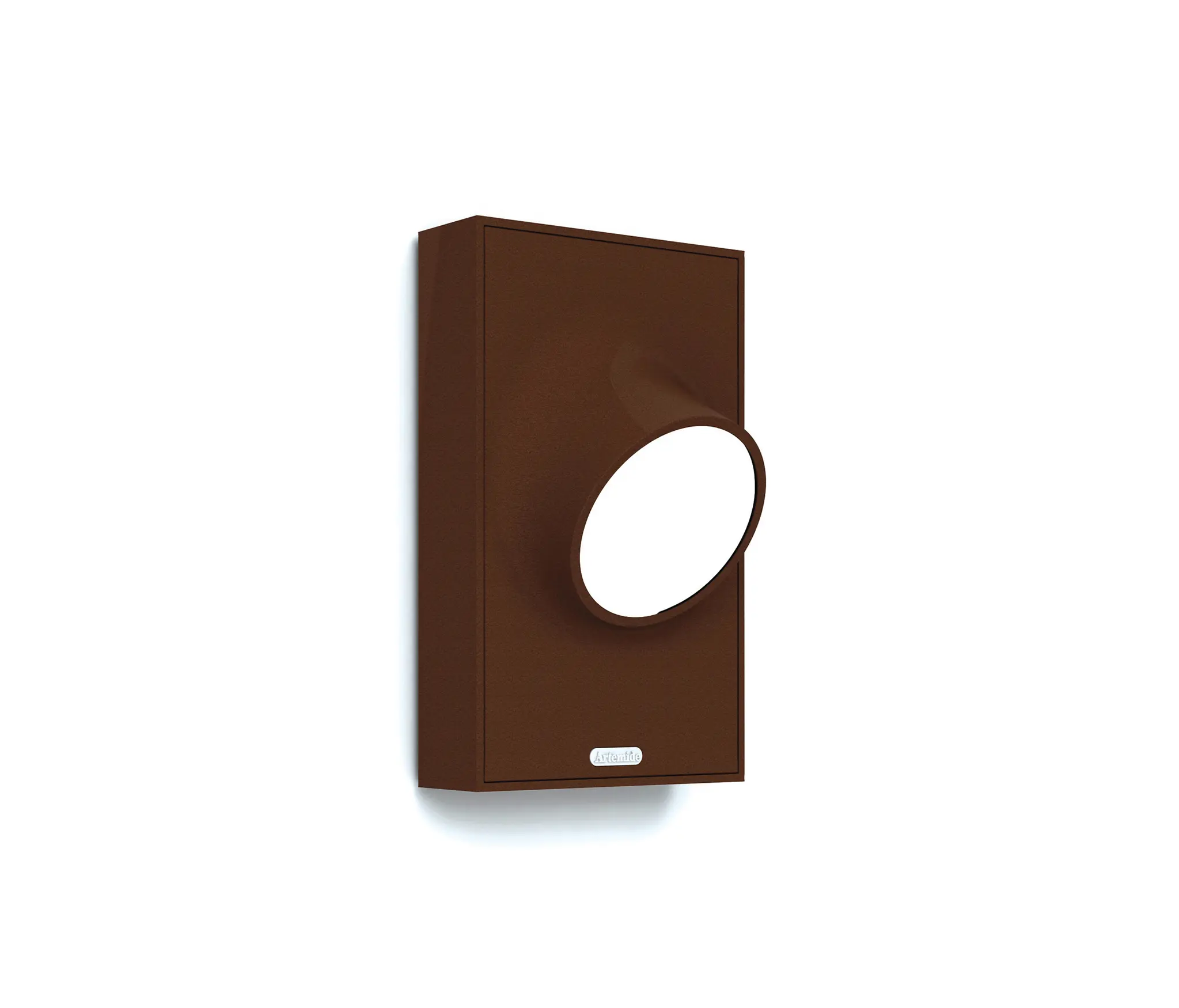

Ciclope applique

Box in extruded EN AW-6060 aluminium. Lighting unit composed by: frame in reinforced polymer; diffuser in light-diffusing polycarbonate; plate in pickled, machined and galvanized steel; watertight gasket in silicone rubber; LED circuit; electronic ballast; reflector in painted spun aluminium; PG13.5 cable gland, H05RN-F cable and IP65 electrical connection device suitable for cables with a diameter between 6 and 8.5 mm and allowing the electrical interfacing with the external mains without need of opening the fixture. The lighting unit houses the electrical components and sources. Aesthetic cover in die-cast EN AB-47100 aluminium.

The elements are fixed together by means of screws. All the locking screws used outside the fixture and inside the stem are in AISI 304 stainless steel. The components in die-cast, extruded aluminium and steel are painted by means of 3-stage outdoor treatment: nanotechnologies, antioxidant primer, polyester paint. Technical features of light fixtures in compliance with EN60598-1. IP Rating IP65. ENEC approved. Insulation class II. can be ordered separately.

The elements are fixed together by means of screws. All the locking screws used outside the fixture and inside the stem are in AISI 304 stainless steel. Technical features of light fixtures in compliance with EN60598-1. IP Rating IP65. ENEC approved. Insulation class II.
