Acoustic blinds

Name: Acoustic blinds
Brand: Texaa®

Sistemas manualesporTexaa®

Visita el producto en el sitio web de Texaa®

Inicio

Sistemas manuales

Acoustic blinds

Acerca de este producto

Architonic ID: 20139147

Characteristics of Acoustic Blinds

Composition

• Black felt 3 mm-thick wadding

• A black powder-coated metal hanging plate inserted in a hem

• Sound-transparent Aeria fabric on both sides

Acoustic performance

Absorption coefficient αw

• Slats open at 90°

αw = 0.40 (H), NRC = 0.30, class D

• Slats closed at 180°

αw = 0.45 (MH), NRC = 0.50, class D

Durability of the aeria fabric cover

• Run-resistant

• 330 g/m²

• Protection against soiling:

– Hydro/Oleophobic ≥ 5 (AATCC118 and AATCC193)

– Electrostatic properties 7 x 1010 Ω (EN 1149-1)

European reaction to fire classification

Complete product: C-s2, d0

Cleaning

Vacuum cleaning, may be taken apart and refitted.

Environmental characteristics

• The sound-absorbing felt wadding is made from 90% recycled materials

• Texaa Blinds meet the requirements specified in the HQE, LEED and BREEAM (2 points) reference documents and methods, based on:

– their acoustic contribution

– their very low emissions of VOC and formaldehyde

• All Texaa products qualify for French “A+” health labelling and are classed as “conforming” after assessment using the German AgBB protocol.

Guarantee 10 years

Fitting

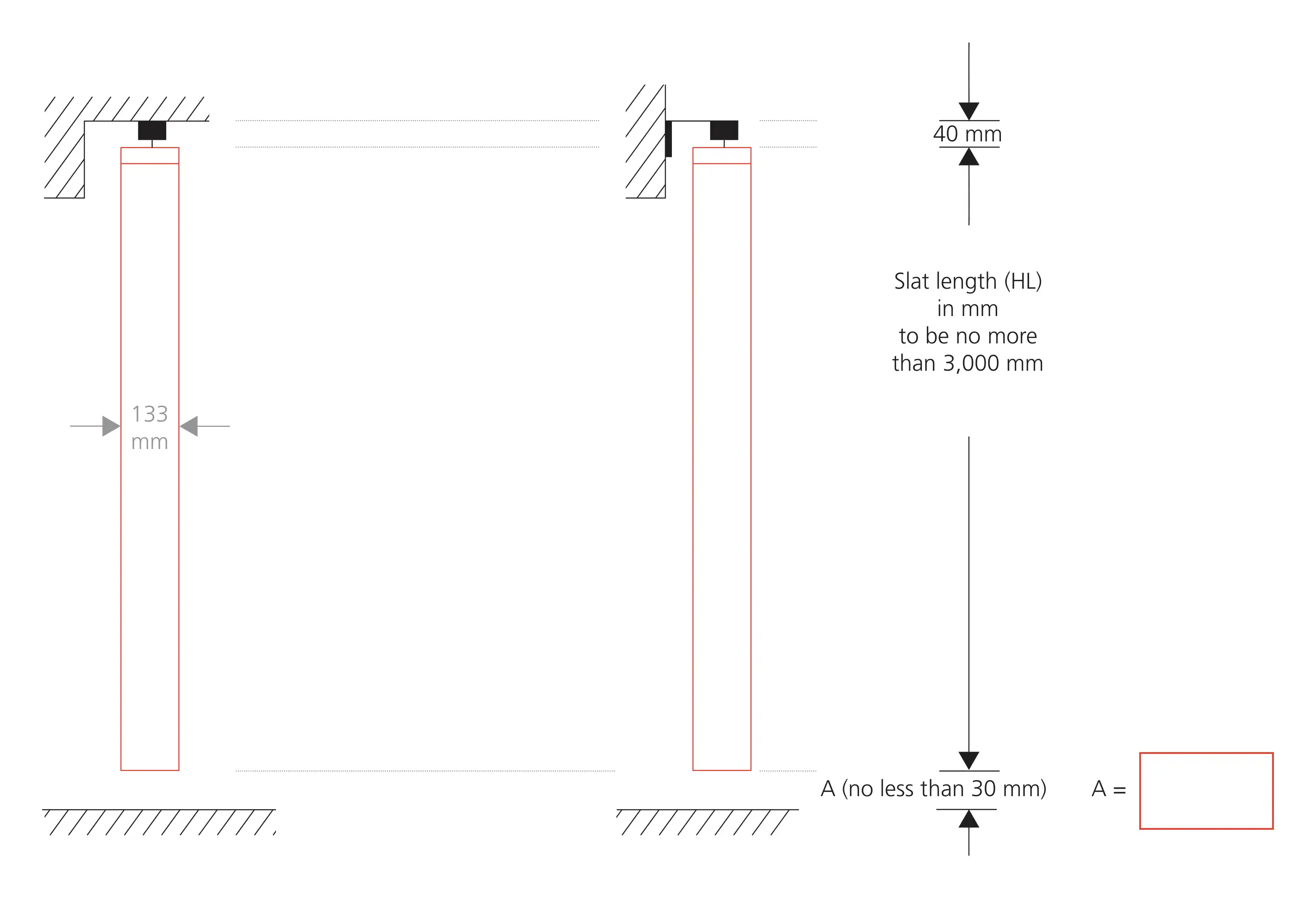

• Texaa Acoustic Blinds use conventional headrail systems. The slats are hung from a white, powder-coated rail with a cross-section of 40 x 25 mm and comprising a drawstring system for angling the slats or opening and closing the blinds.

Concepto

Texaa’s range of curtains and blinds can provide acoustic solutions for many architectural situations. These made-to-measure systems fit different dimensional requirements.

They contribute to the scenic quality of the space enabling the light levels of a room to be varied or to create visual partitions.

Texaa Acoustic Blinds are made of 3-mm thick black felt, protected on both sides by our Aeria sound-transparent fabric. This unique product is an effective barrier for light, heat and sound.

A hanger plate is concealed in a hem at the top of each slat without any weights. The new format of this hanger plate, an exclusive Texaa patent, locates it as close as possible to the hanging rail to cut out as much light as possible.

Hung in front of a glazed surface, Texaa Acoustic Blinds absorb resonance, filter light and improve people’s comfort.

Placed inside a volume, blinds partition spaces without closing them off, on public or private premises.
